SCHNELL BAR WISER 28 Pack 2 2025050

 Description

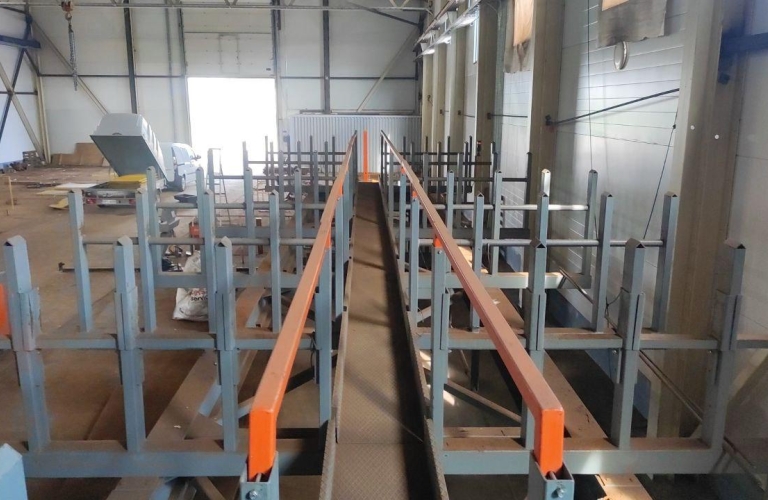

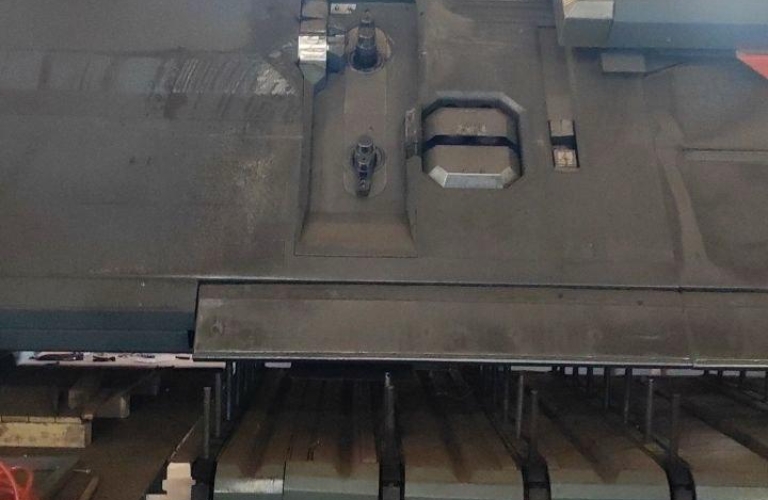

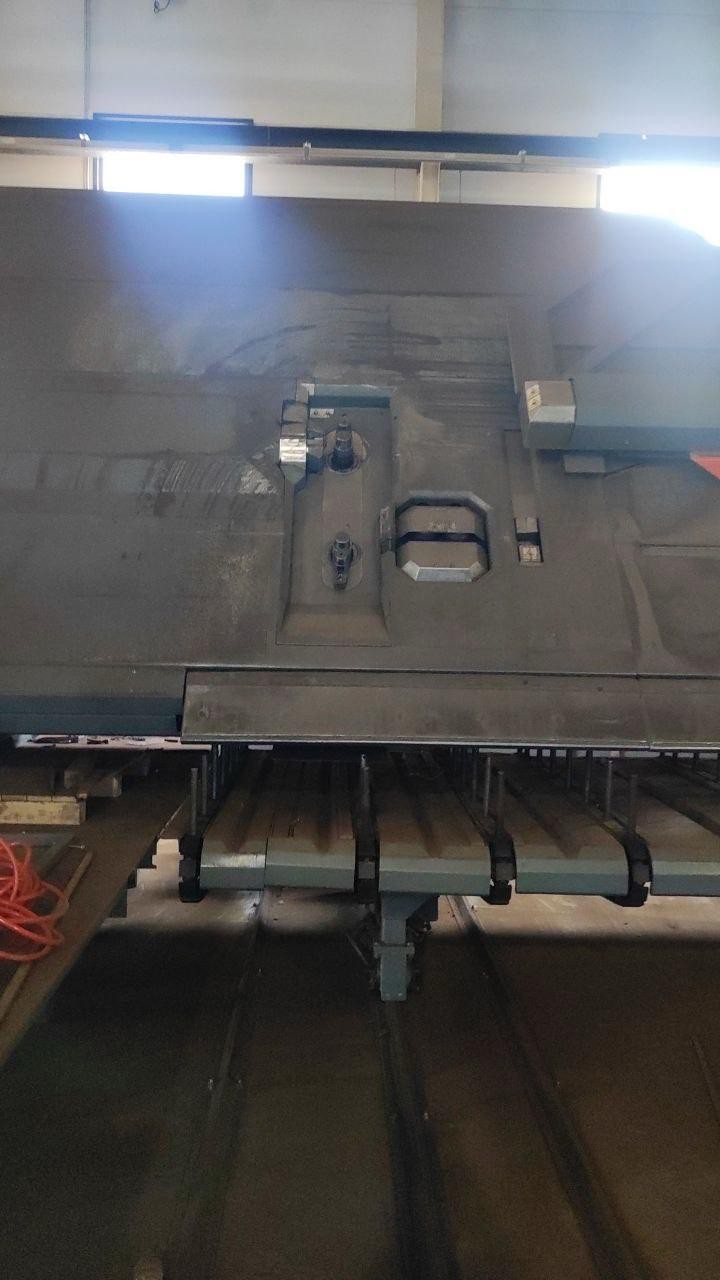

BAR WISER 28 Pack 2: Chain collecting and unloading carriage, characterised by chain feeders and storage racks. Bi-directional automatic bar shaping machine from bar, with 2 bending heads, allows to produce shaped wires and cut-to-size bars using wires up to Ø 28 mm (#8). Driven by digital electric servomotors. \- Max. pulling speed: 180 m/min (600 ft/min) - 2 bending units (upper and lower) - Clamp for extraction of the end part of the bar - Virtual mandrel \- Web Teleassistance
 Technical Specifications

Brand:

SCHNELL

Double Strand Wire Size:

2 x 20

Single Wire Size:

28

  • Machine info:

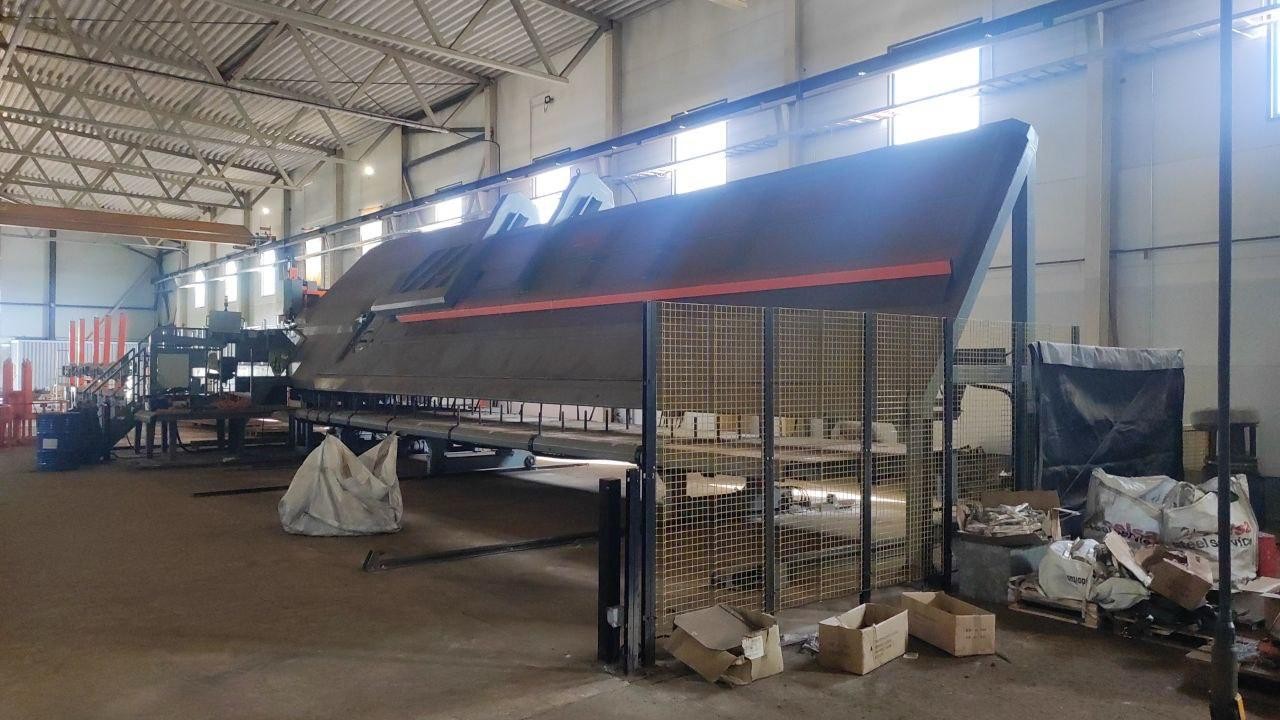

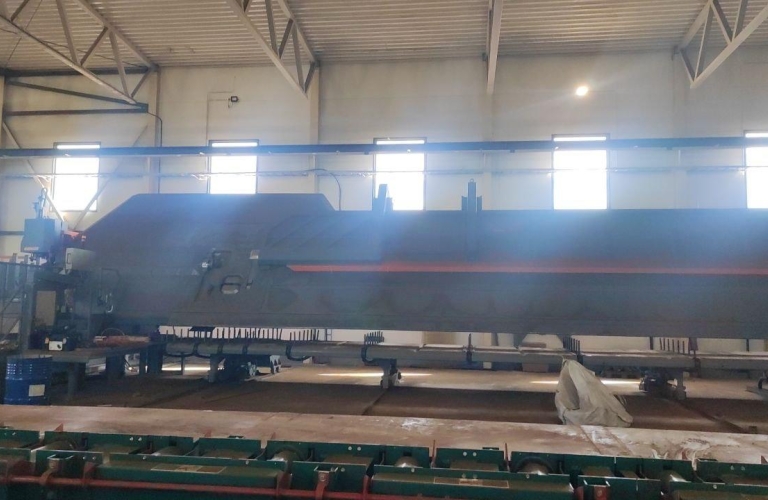

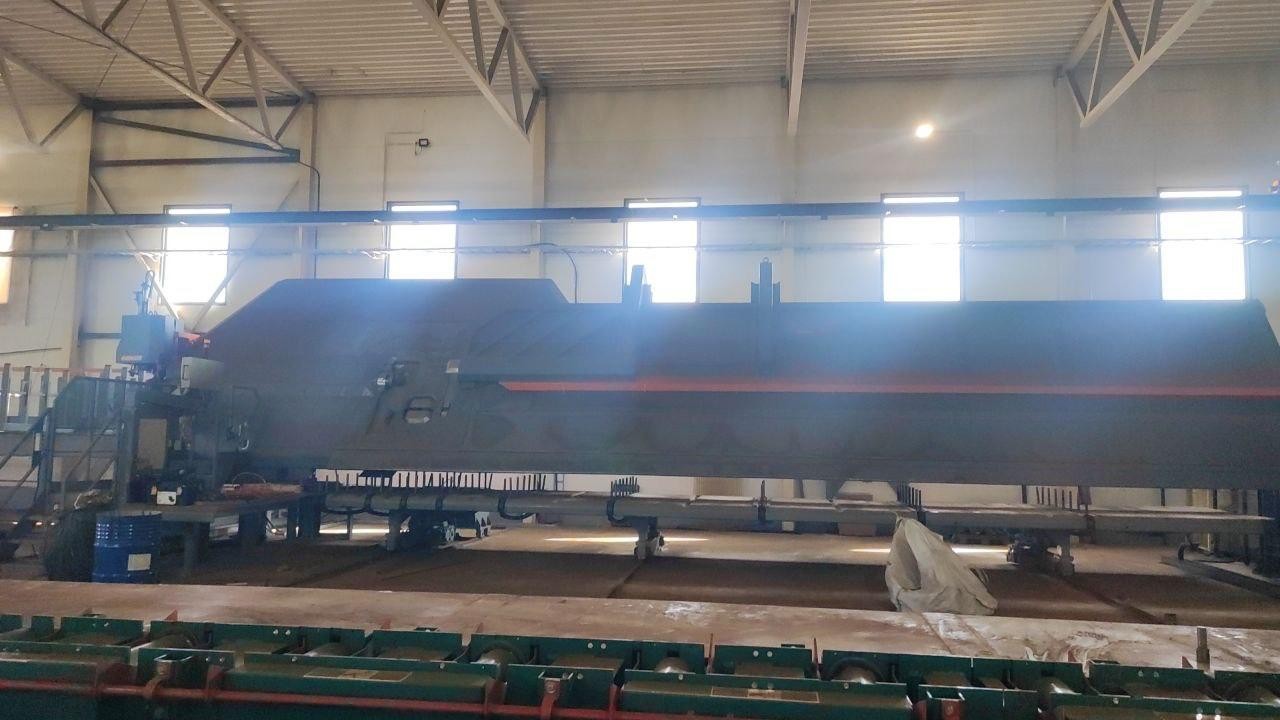

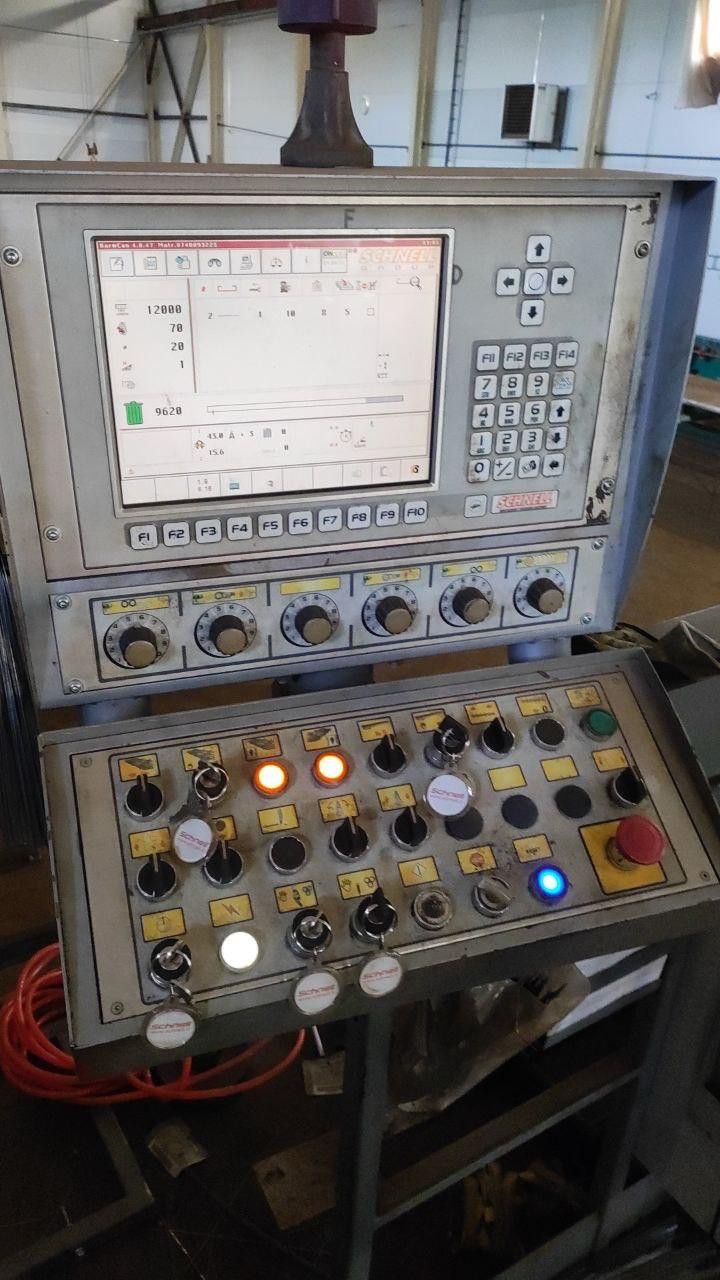

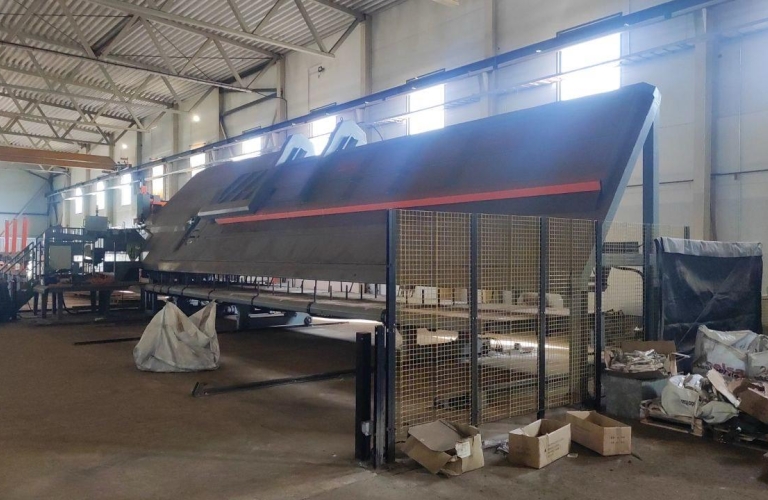

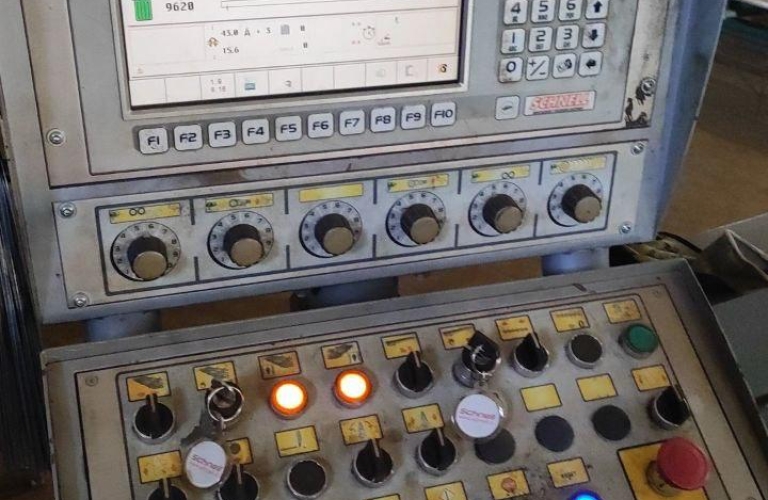

    Used Schnell Bar Wiser 28 Pack 2, FTA/8/14, Genius, 2009, refurbished in 2023 (computer changed, program updated, two servos changed, shear crankshaft also changed). 26574 hours. Fully functional.

    • Processed wire type
      Single strand

      Double strand

      Pulling speed
      HS Version
      Bending speed
      Average power consumption

      Bar
      1 Ø 8÷28 mm (#8)

      2 Ø 8÷20 mm (#6)

      180 m/min (600 ft/min)
      Not available
      574°/sec
      3 kWh


  • Production year:
    2009
