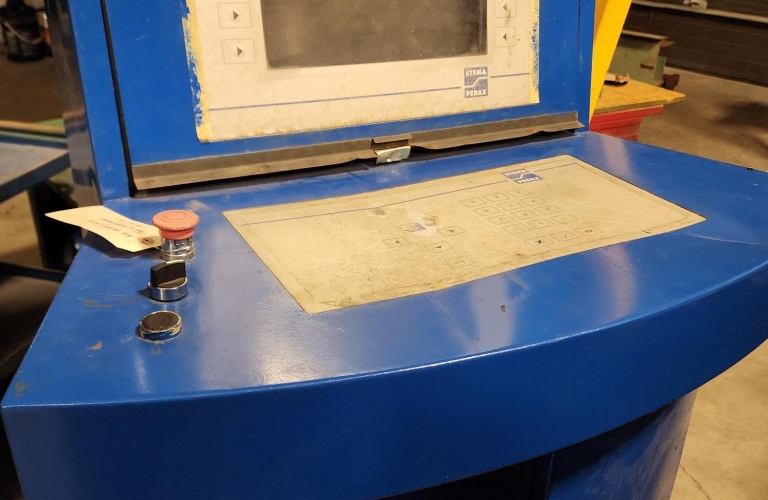

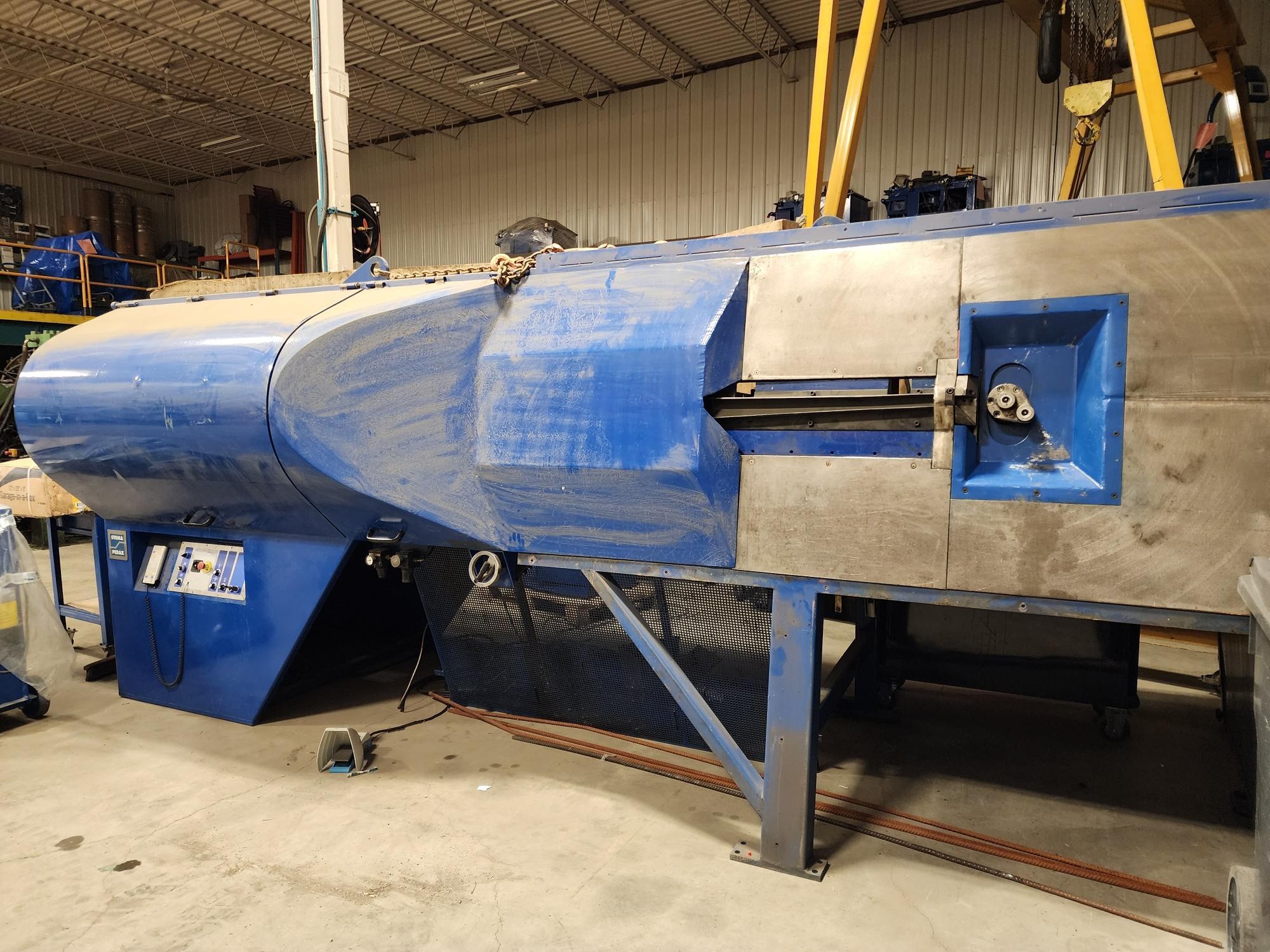

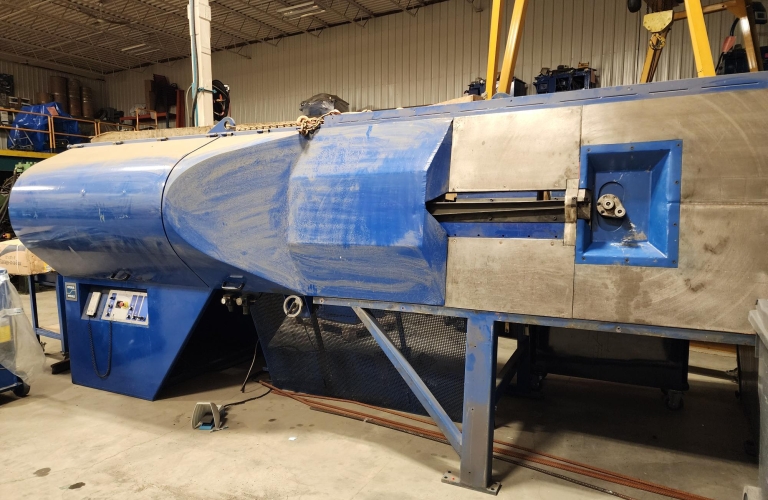

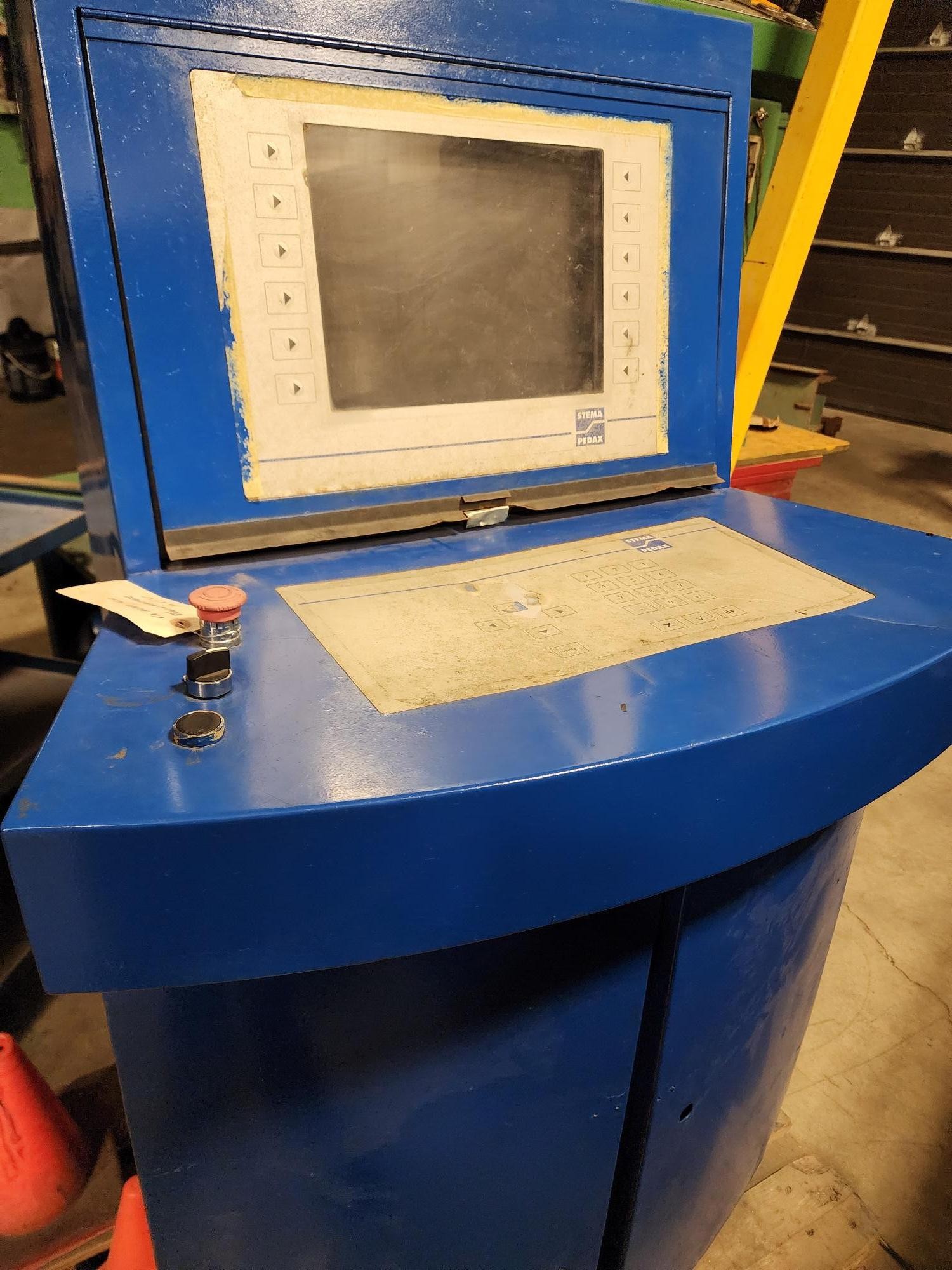

PEDAX Twinmaster 16 X - servo-driven stirrup bender 2026012

 Description

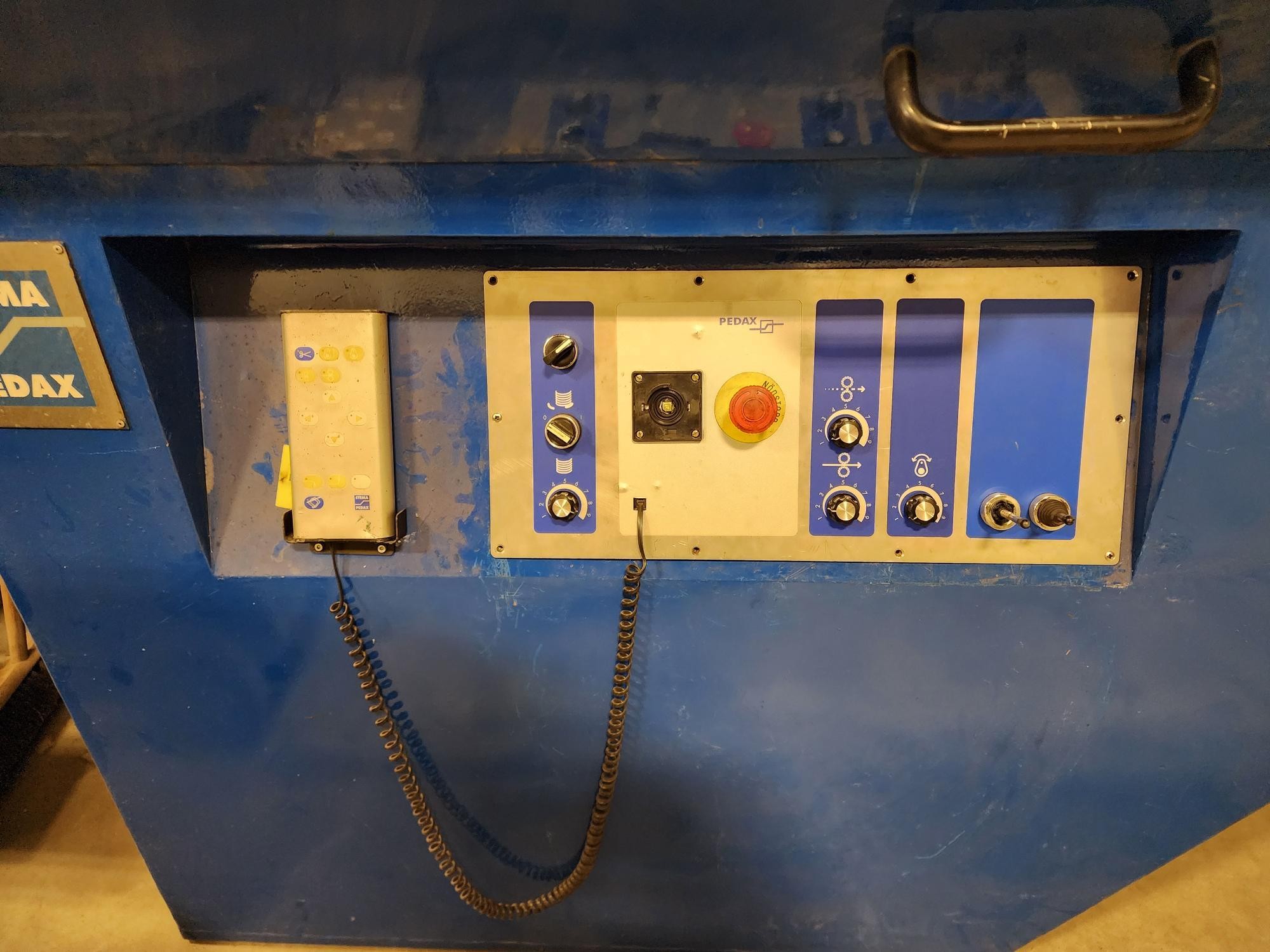

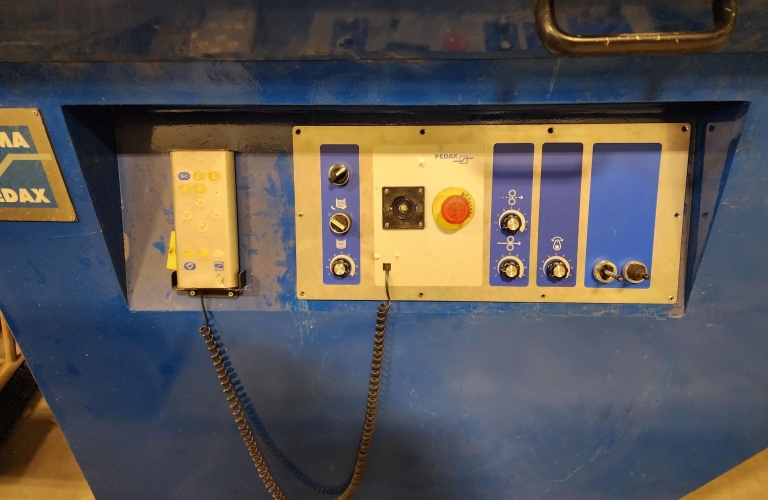

The Twinmaster 16 is a new automatic stirrup machine model with high output and maximum performance. The machine processes hot-rolled and cold drawn wire in the range from 6 mm up to 16 mm and double strand up to 12,7 mm. The differentiated roller sizes also give better straightening results for all diameters. Twinmaster 16 X includes an integrated pre-feeding unit for easy threading of 2 wires, a straightening system, which is using the well-known Quick-Jig®️ system combined with an automatic adjustment of the last roller in each straightening roller by means of 2 joysticks.
 Technical Specifications

Brand:

PEDAX

Machine Type:

Stirrup Machine

  • Machine info:

    Twinmaster 16 X with 2 pay-off reels

    Steel grade700 N/mm²
    Wire diameterSingle strand: Ø 6-16 mm and double strand: Ø 6-12,7 mm
    Rate of feed, max.120 m/min
    Bending speed, max.1500°/sec
    Bending angle0-180°
    Weight3.500 kg
    Dimensions (L x W x H)5750 x 1750 x 2150 mm (extented working surface 2960 mm)
    Operating voltage3 x 400/ V/50 Hz
    Connected load24 kW
    Average power consumption5-7 kW
    Main fuse63 Amp
    Air pressure/consumptionMax. 8 bar/approx. 200 l/min
    Drawing power of feeding rollers15.000 - 25.000 N
    TolerancesSide lengths +/- 1 mm/m
    Angles +/- 1°
    Bars +/- 1 mm/m
  • Steel grade700 N/mm²
    Wire diameterSingle strand: Ø 6-16 mm and double strand: Ø 6-12,7 mm
    Rate of feed, max.120 m/min
    Bending speed, max.1500°/sec
    Bending angle0-180°
    Weight3.500 kg
    Dimensions (L x W x H)5750 x 1750 x 2150 mm (extented working surface 2960 mm)
    Operating voltage3 x 400/ V/50 Hz
    Connected load24 kW
    Average power consumption5-7 kW
    Main fuse63 Amp
    Air pressure/consumptionMax. 8 bar/approx. 200 l/min
    Drawing power of feeding rollers15.000 - 25.000 N
    TolerancesSide lengths +/- 1 mm/m
    Angles +/- 1°
    Bars +/- 1 mm/m
  • Production year:
    2005
