MEP Syntax Line 25 - automatic loading 2025051

 Description

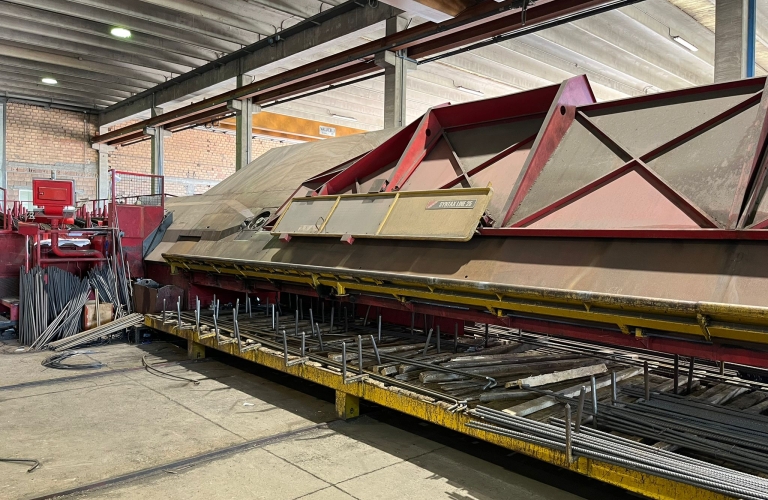

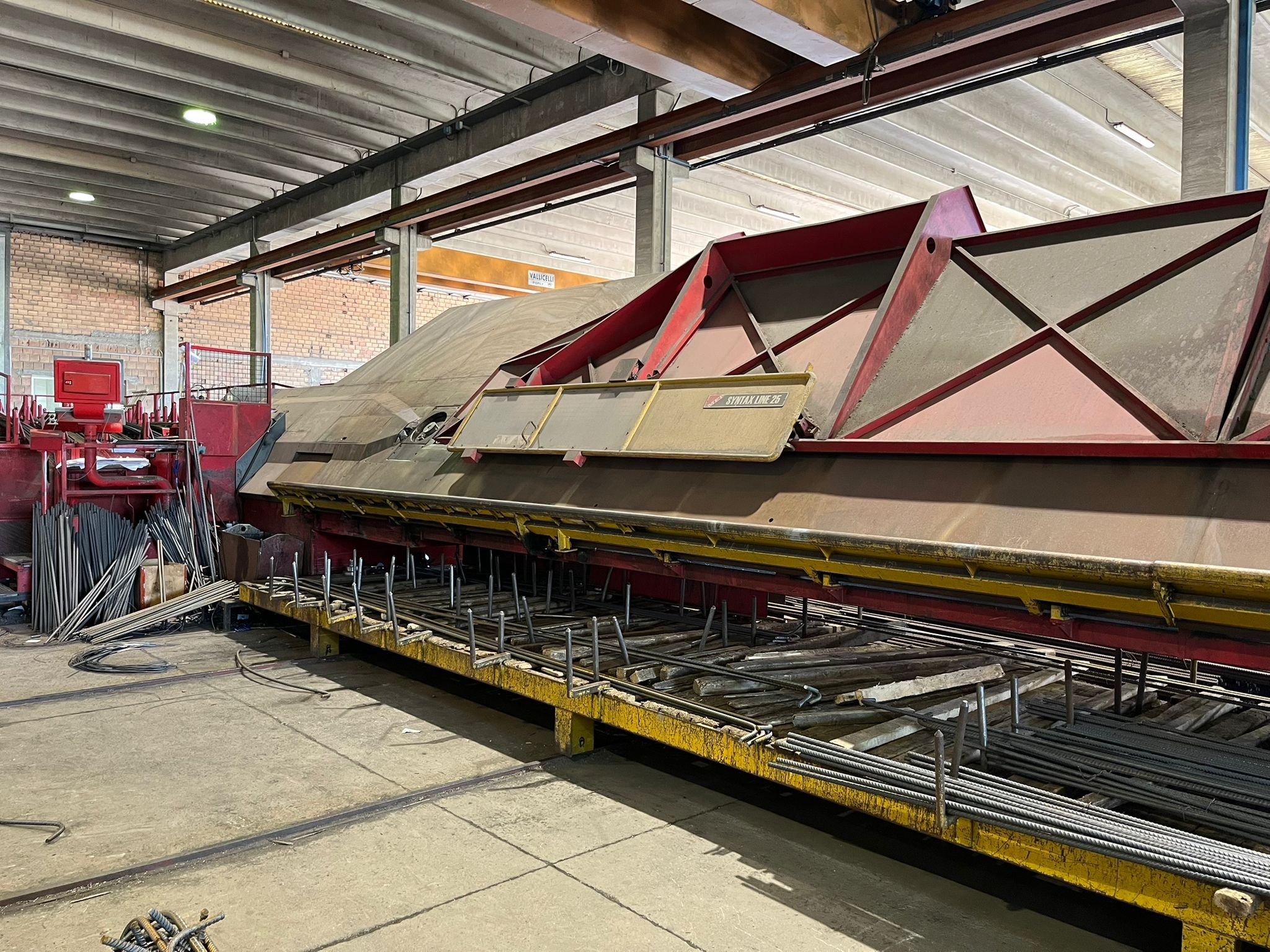

**Cutting and shaping equipment** The SYNTAX LINE is a complete and fully automated cut and bend station for processing of stock rebar. The complete production cycle (loading, cut and bend) is conceived to be carried out in full automation, without requiring any manual handling by the operator. The large extent of equipment functions and the flexibility in programming the production cycles, makes the SYNTAX LINE capable to manage any production requirement providing an outstanding quality of the finished products. **The complete Line consist of: ** \- Storage rack with 8 compartments \- Syntax 25 -- main machine \- Automatic loading of bars \- 12 m collecting bench \- 12 m trolley to receive finish material
 Technical Specifications

Brand:

MEP

Double Strand Wire Size:

2 x 16

Machine Type:

Processing Center

Single Wire Size:

25

  • Machine info:

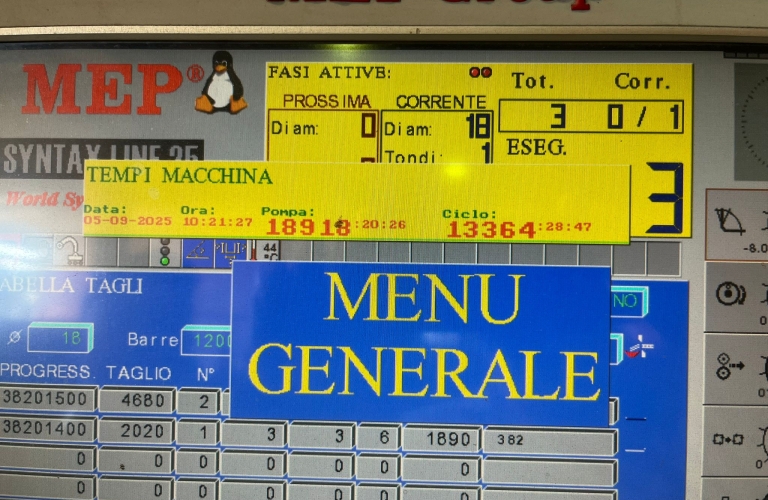

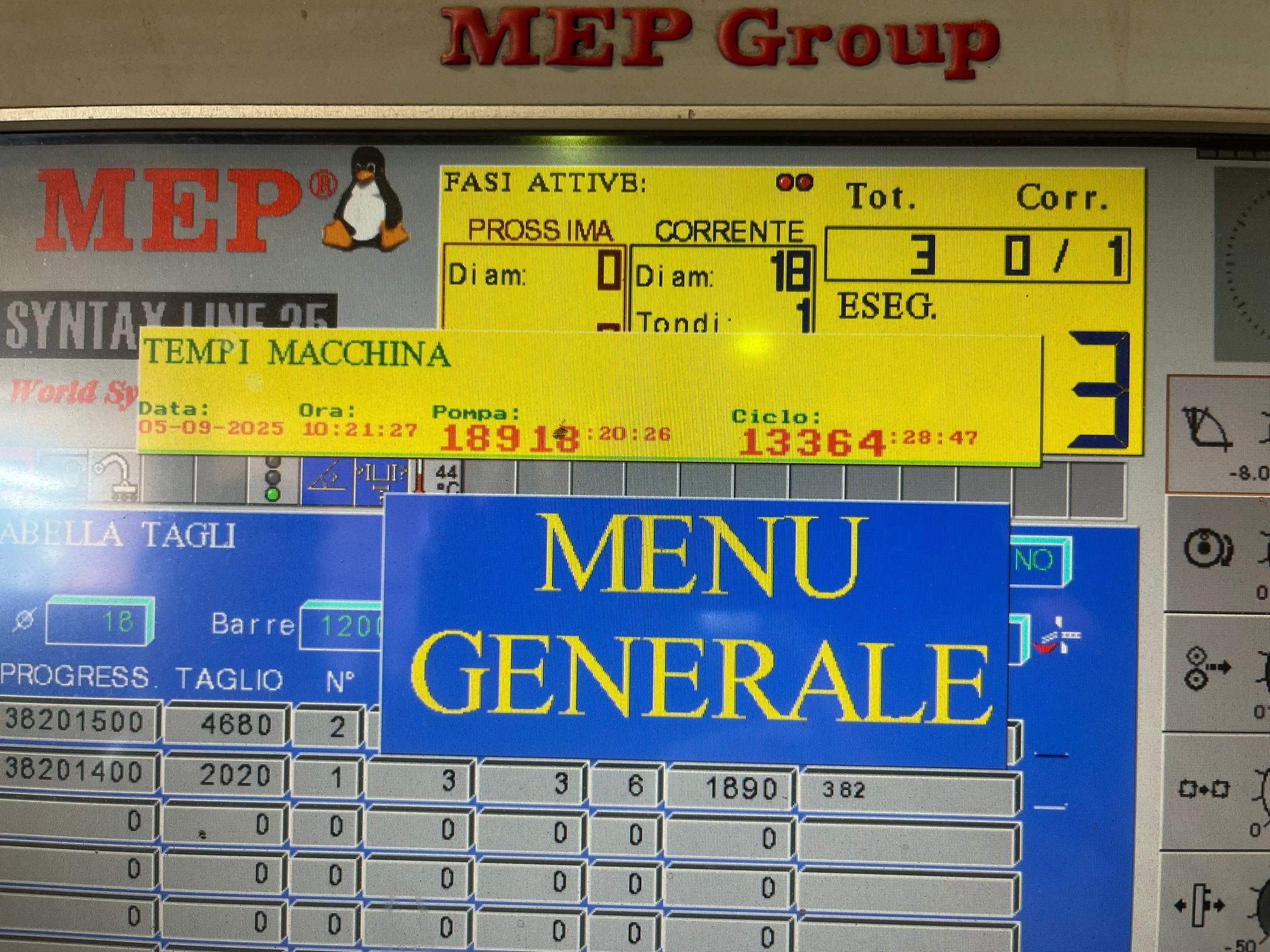

    Used MEP Syntax Line 25, with automatic loading, 2008, 13364 hours. Fully functional.

  • TECHNICAL DATA

    Voltage supply                                                  400 V - 50 Hz

    Installed power                                                  27,6 kW

    Average absorbed power                                  19 kW

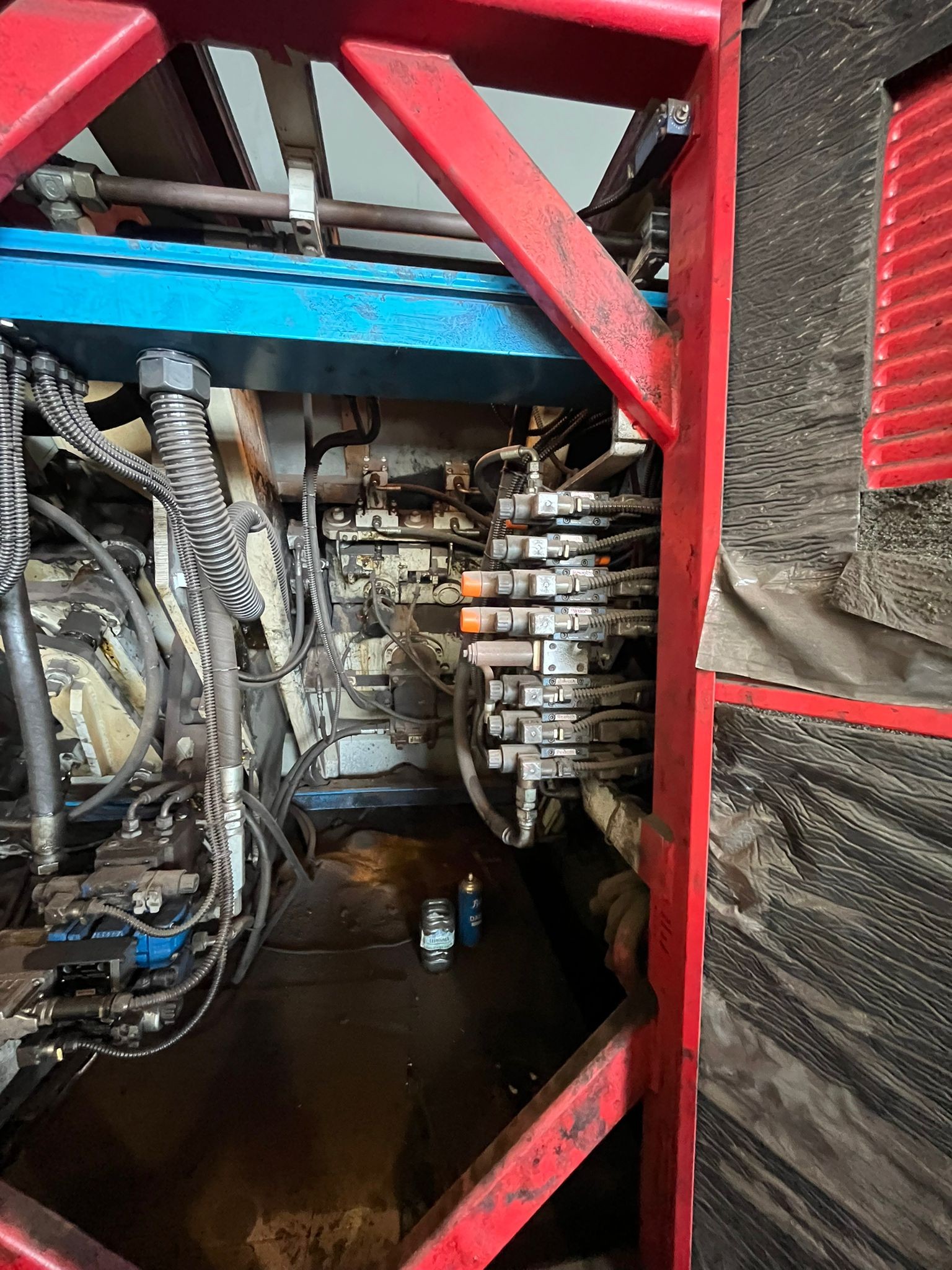

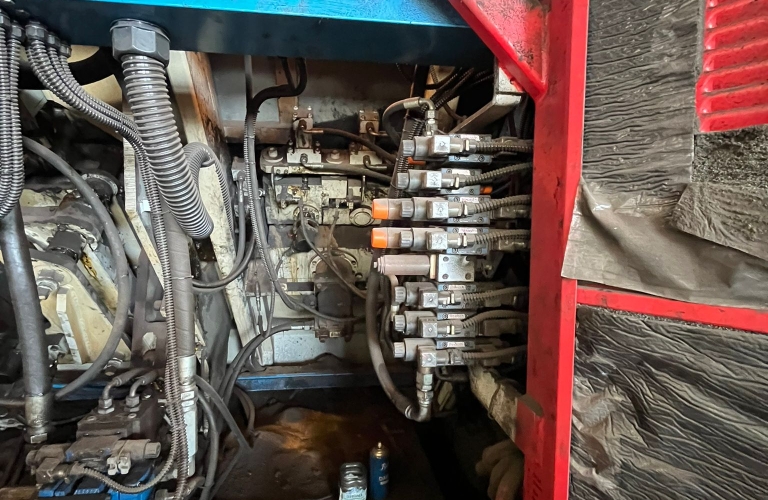

    Hydraulic unit capacity                                       300 l

    Infeed speed (dragging clamp/ in feed rollers)   3,2 m/s

    Bending speed                                                   1000 °/s

    Shearing time                                                     4/10 s

    Centre forming tools diameter                           40 - 80 - -100-120 -160 mm

    Quantity of bundle pocket                                   8 ÷ 10

    Bundle length                                                     12 m

    Overall dimensions

    Installation with bar rack (8 x 12 m)                  26800 x 8600 x 3105 mm

    Weights Machine                                               8520 kg

    Bar rack (8 x 12 m)                                            4200 kg

    Production features

    Grade of process-able material                          ribbed and plain re-bar

    Max. yield point                                                  600 N/mm2

    Max. tensile strength                                          700 N/mm2

    Diameter range

    Single ribbed or plain rod                                   8 mm to  26 mm

    Double strand max. diameter                             8 mm to 16 mm

    Operation per stirrup

    Side lengths                                                       1 ÷ 28

    Bends                                                                 1 ÷ 27

    Shaping dimension

    Max. processable side                                           3300 mm

    Min. hook length (rod dia 8 mm/ pin dia 40 mm

    / 90°÷180° bend)                                                   100 mm

    Min. hook length (rod dia 26 mm/ pin dia

    200 mm / 90°÷180° bend)                                      200 mm

    Max. bend angle                                                    180°

    Tolerances

    Side lengths                                                            ±1,5 mm/m

    Bends                                                                     ±0,5°

    Programme capacity

    Programmable memory codes                               No limits

    Programmed codes                                                69

  • Production year:
    2008
