Brand: | PEDAX |
Machine Type: | Manual/Single bender |
Single Wire Size: | 35 |

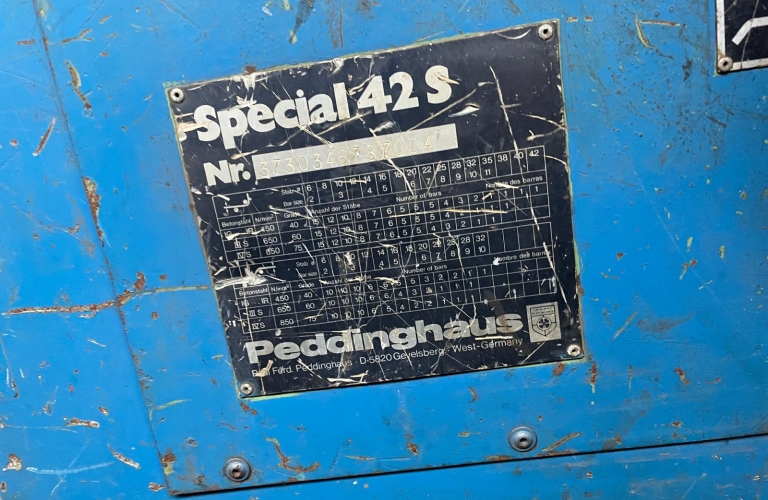

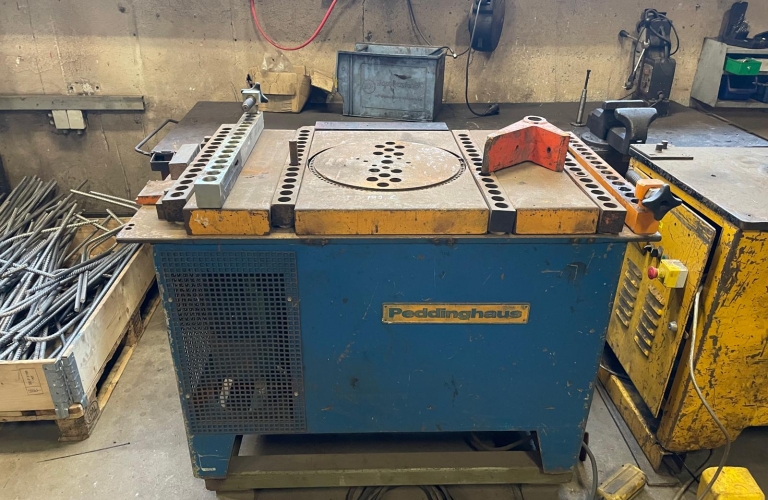

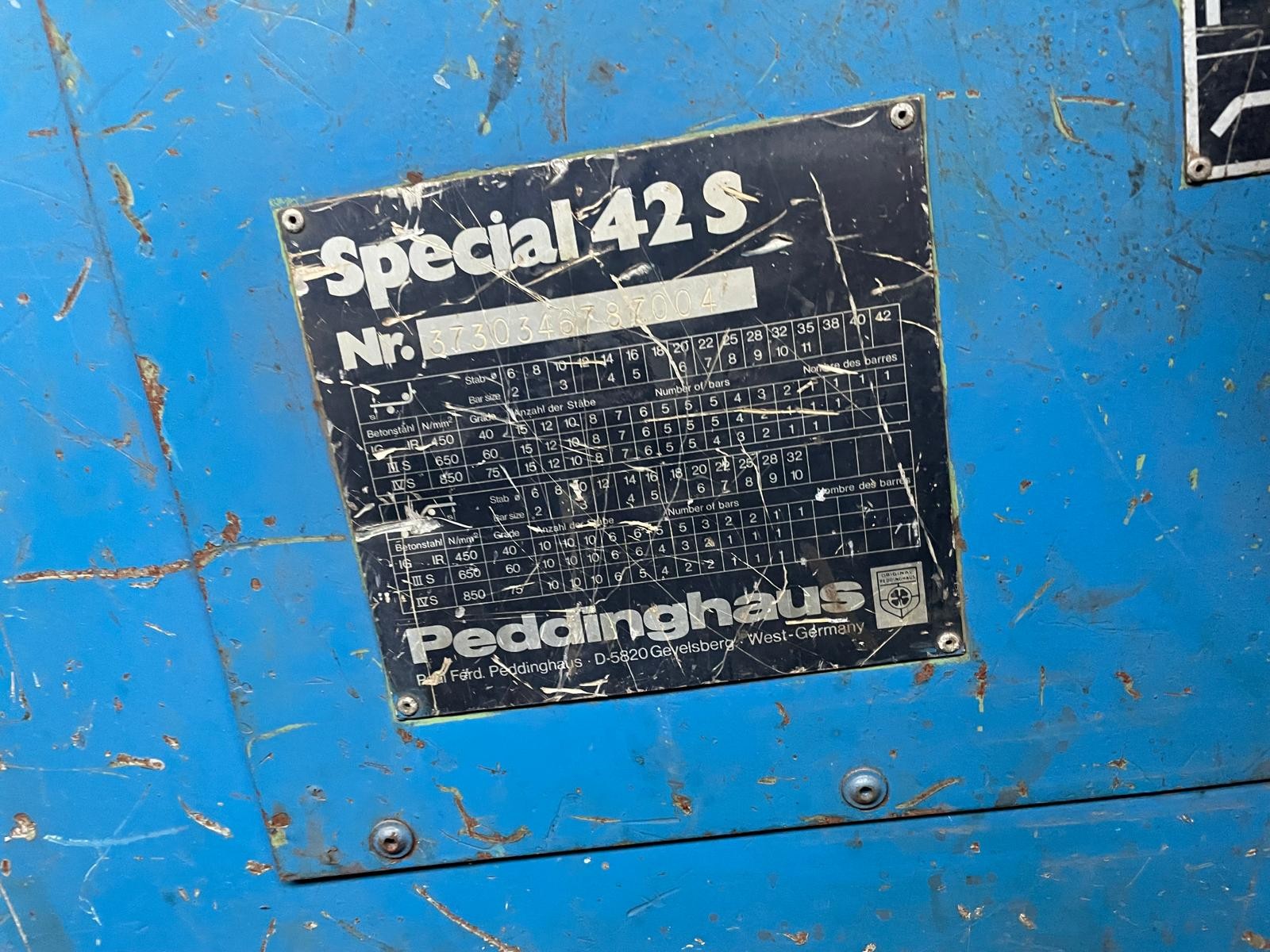

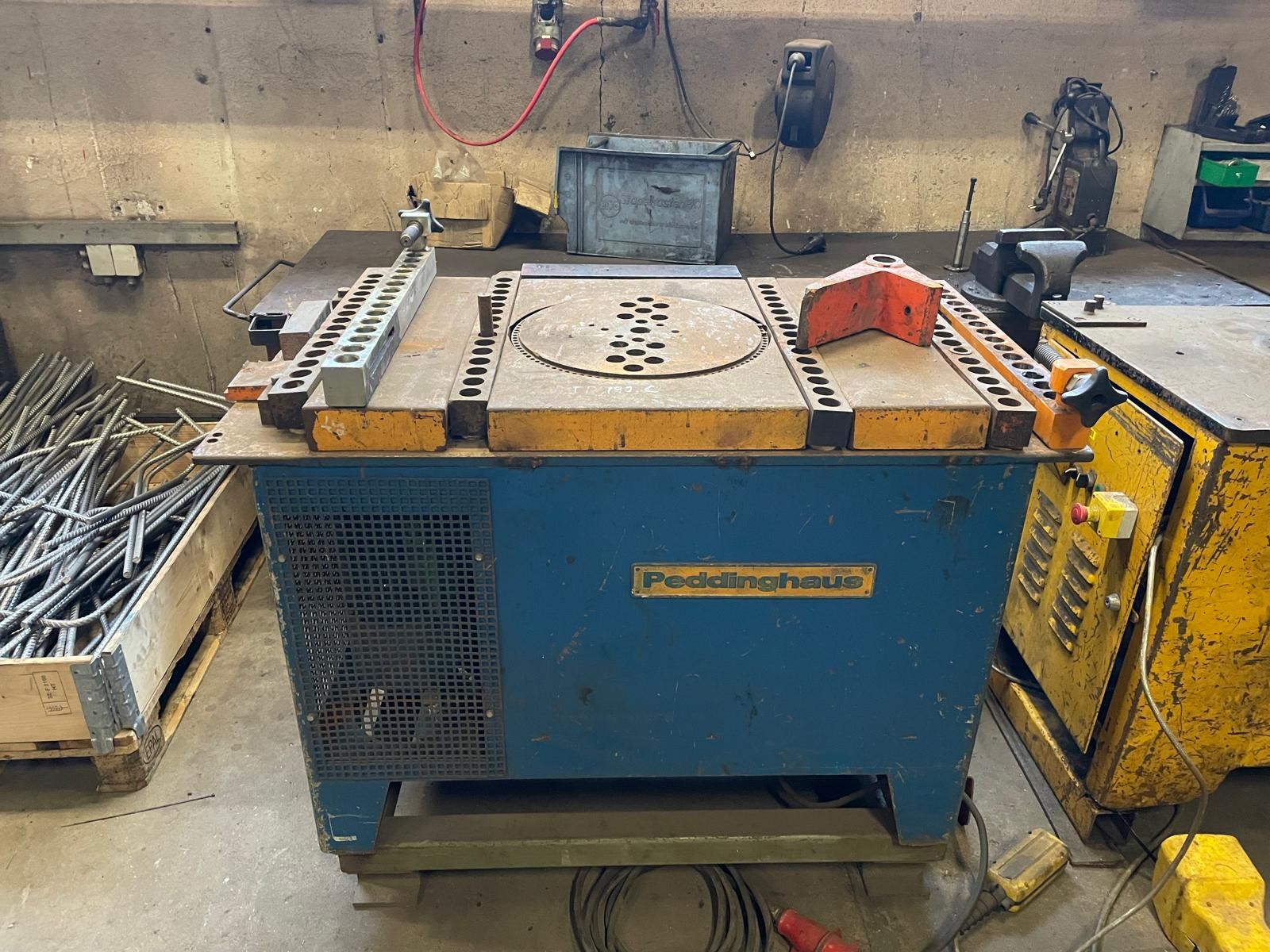

Used Peddinghaus Special 42S
Spec. | Special 42 S | |||||
Numbers of bars | 1 | 2 | 3 | 4 | 6 | |
Single bend | 450 N/mm² | 42 | 32 | 28 | 25 | 16 |
(max. bar Ø) | 650 N/mm² | 38 | 38 | 25 | 25 | 16 |
Rebar | 850 N/mm² | 35 | 28 | 25 | 22 | 16 |
Double bend* | 450 N/mm² | 32 | 25 | 20 | 18 | 14 |
(max. bar Ø) | 650 N/mm² | 28 | 22 | 18 | 16 | 12 |
Rebar | 850 N/mm² | 28 | 20 | 18 | 16 | 12 |
|
| |||||
Bending height - Stand. equipment | approx. mm | 300 | ||||
Voltage | V/Hz | 400/50 | ||||
Connected load | kW | 3,5 | ||||
Net weight | approx. kg | 590 | ||||
Gross weight | approx. kg | 615 | ||||
Case dimensions (LxBxH) | cm | 154x110x110 | ||||
