Brand: | PEDAX |
Machine Type: | Manual/Single bender |
Single Wire Size: | 50 |

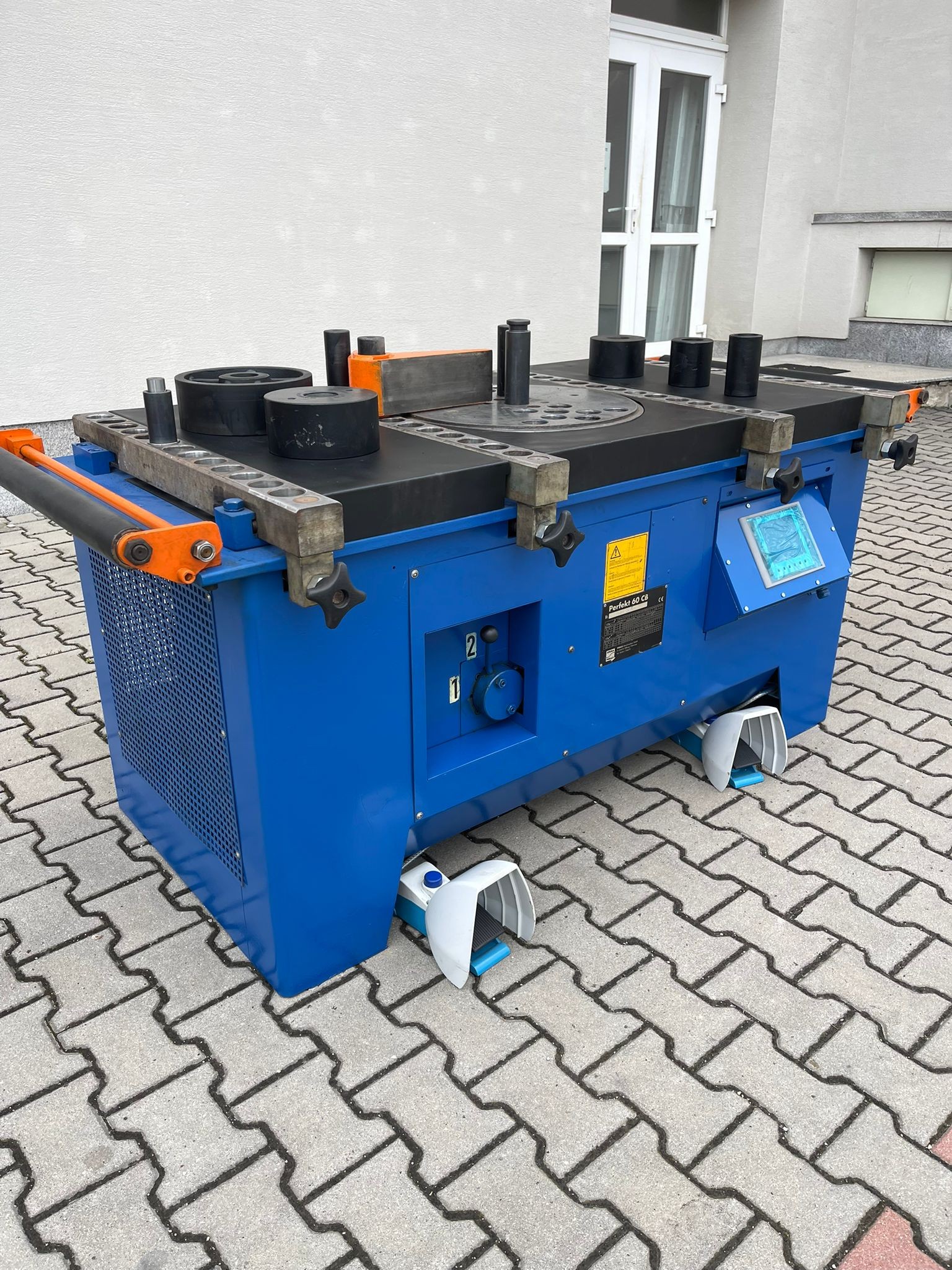

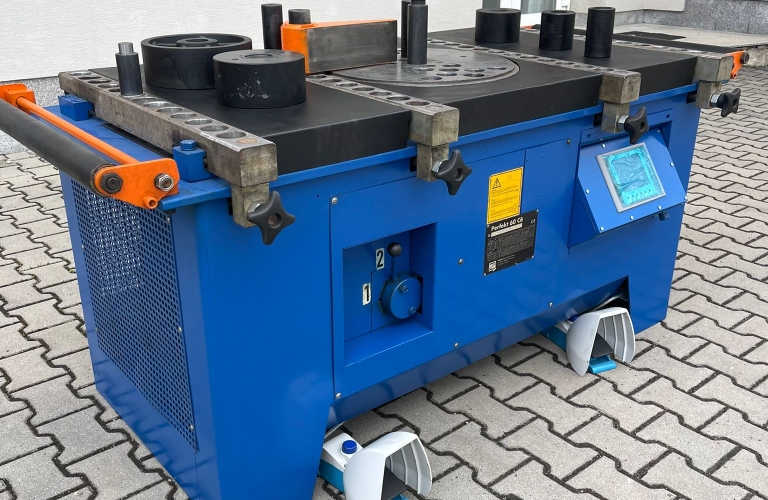

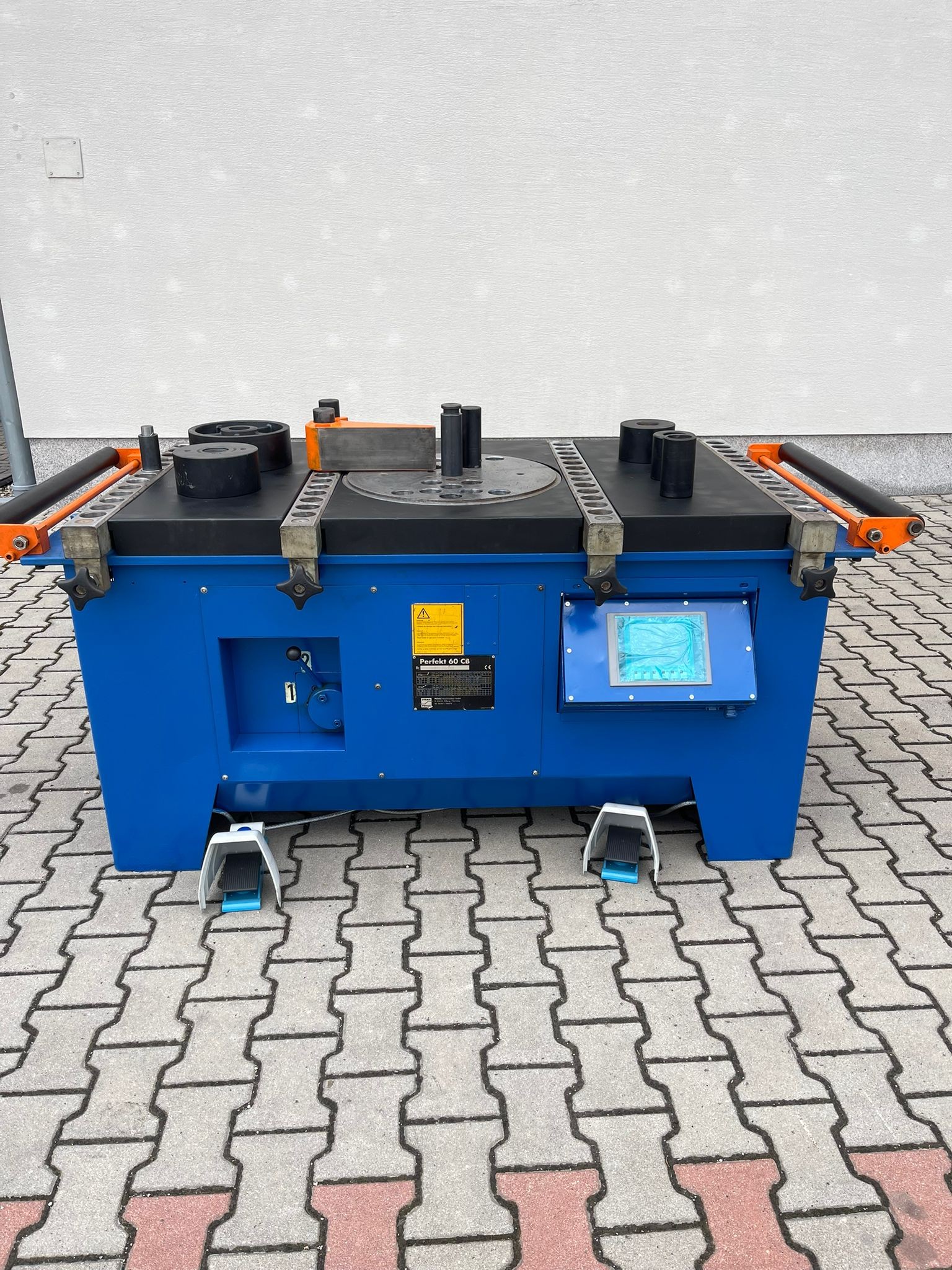

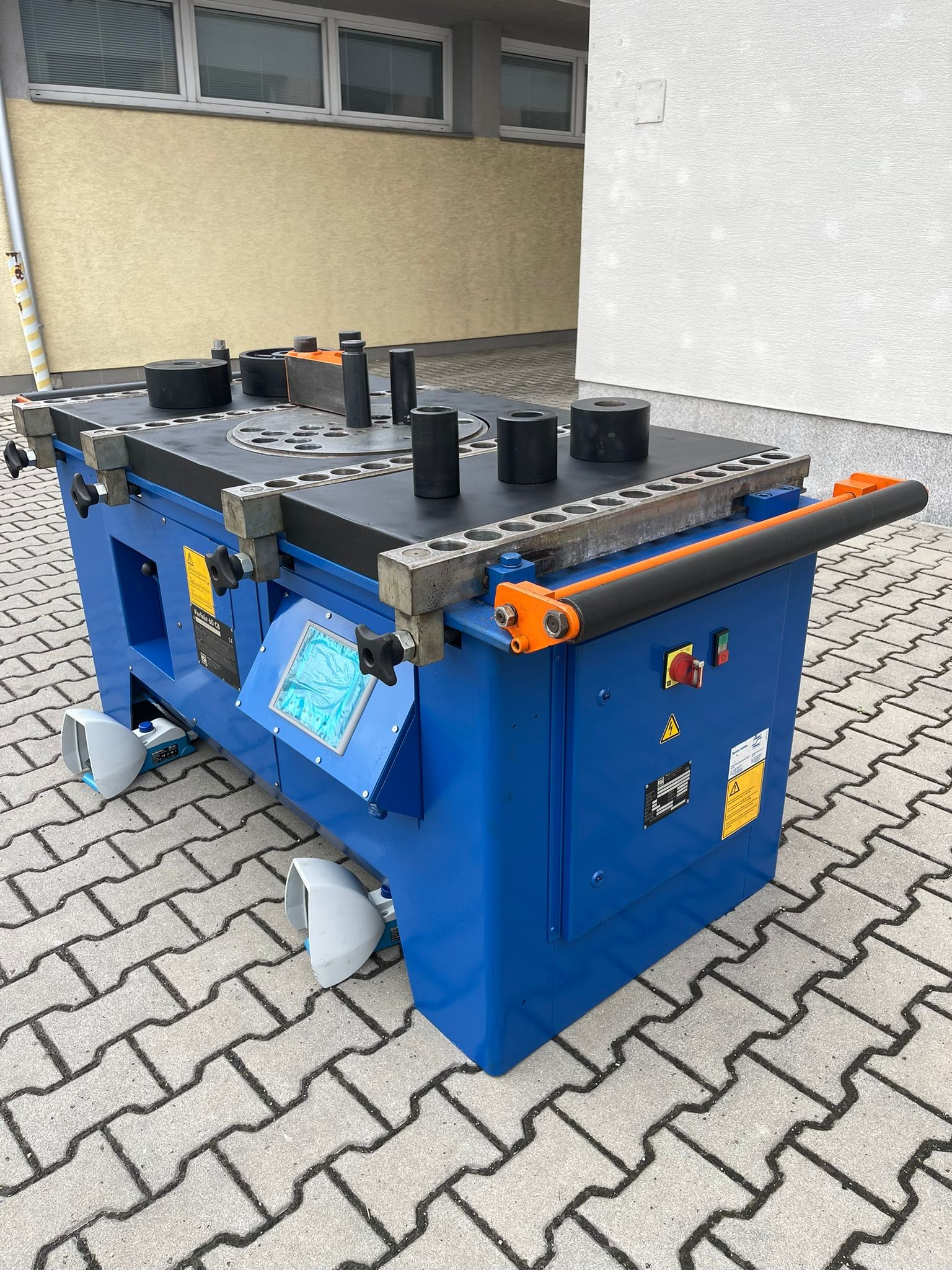

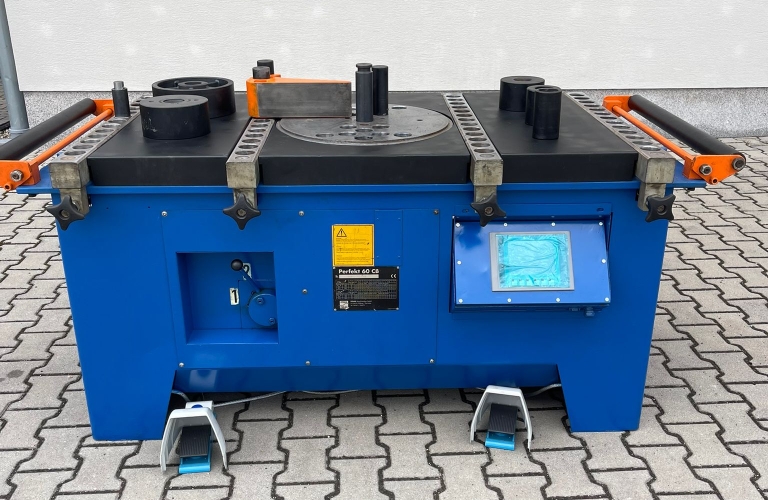

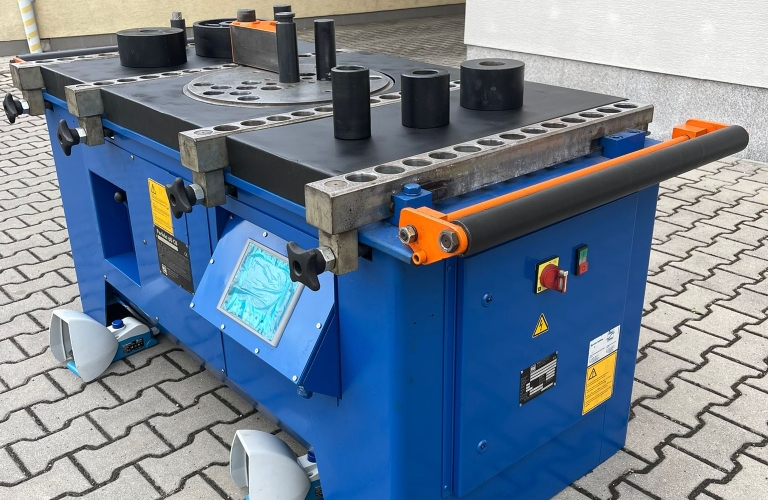

Used PEDAX Perfekt 60CB which has been upgraded to 60CC. Fully refurbished.
Technical details:
| Perfekt 60 CC | |||||||
Numbers of bars |
|
| 1 | 2 | 3 | 5 | 8 | |
Single bend | 450 N/mm² |
| 60 | 40 | 38 | 35 | 20 | |
650 N/mm² |
| 50 | 32 | 35 | 28 | 18 | ||
850 N/mm² |
| 45 | 35 | 28 | 25 | 16 | ||
Double bend* | 450 N/mm² |
| 40 | 38 | 28 | 18 | 14 | |
650 N/mm² |
| 35 | 28 | 25 | 16 | 14 | ||
850 N/mm² |
| 32 | 25 | 18 | 14 | 14 | ||
|
|
|
|
|
|
|
| |
Bending height - Stand. equipment | approx. mm |
| 450 | |||||
Bending height- with banjo** | approx. mm |
| 800 | |||||
Voltage | V/Hz |
| 400/50 | |||||
Connected load | kW |
| 4 | |||||
Turntable RPM | min. -1 |
| 5/7/10/14 | |||||
Net weight | approx. kg |
| 1325 | |||||
Gross weight | approx. kg |
| 1325 | |||||
Case dimensions | (LxWxH) cm |
| 195x125x110 | |||||
SIGMA MECHANICAL REBARBENDER (with 4 Pin hole rails): MODEL: DBM 42 – 4P, used, without CE mark
SIGMA MECHANICAL REBARBENDER (with 4 Pin hole rails): MODEL: DBM 42 – 4P, NEW, with CE mark
SIGMA MECHANICAL REBARBENDER (with 4 Pin hole rails): MODEL: DBM 42 – 4P, NEW, with CE mark
SIGMA MECHANICAL REBARBENDER (with 4 Pin hole rails): MODEL: DBM 42 – 4P, NEW, with CE mark
Used Peddinghaus Special 42S
Used Oscam radius machine
Used Oscam radius machine

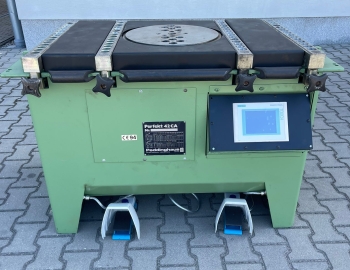

Used PEDAX Perfekt 42CA which has been upgraded to 42CC. Fully refurbished.
