Brand: | PEDAX |
Machine Type: | Manual/Single bender |
Single Wire Size: | 40 |

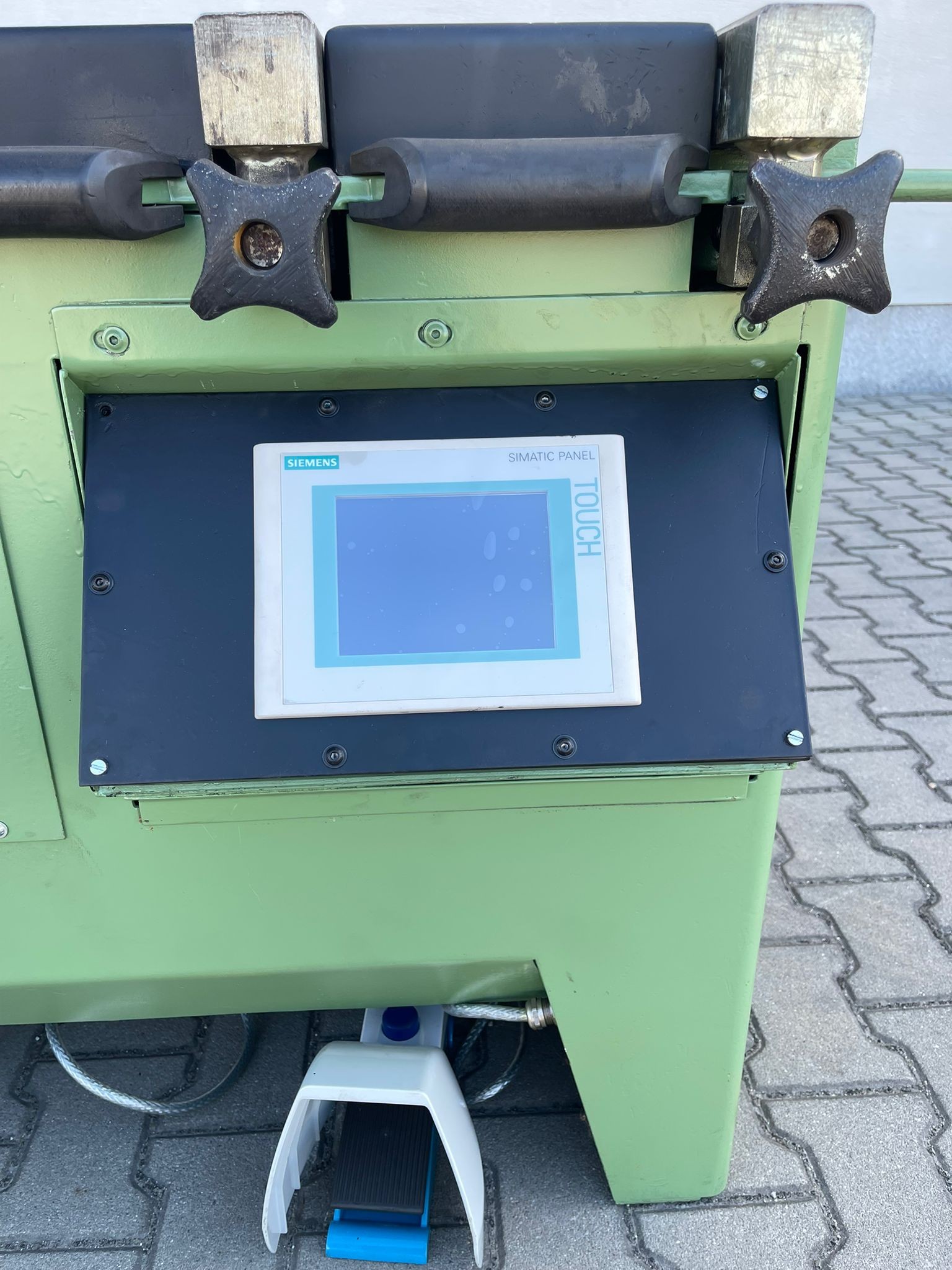

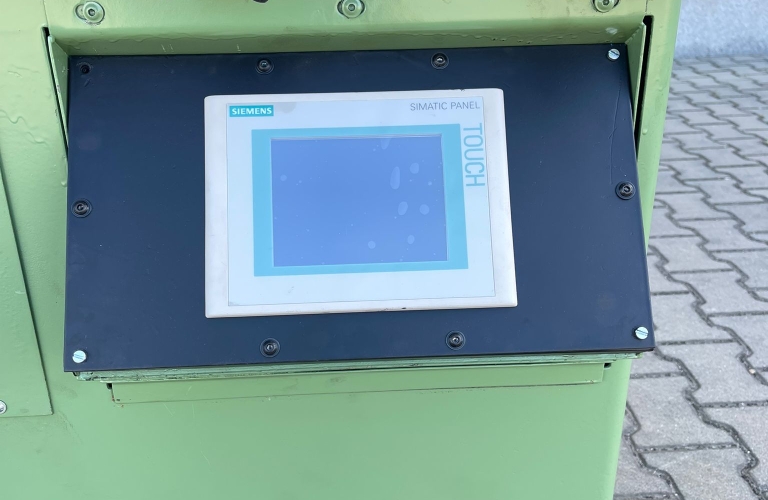

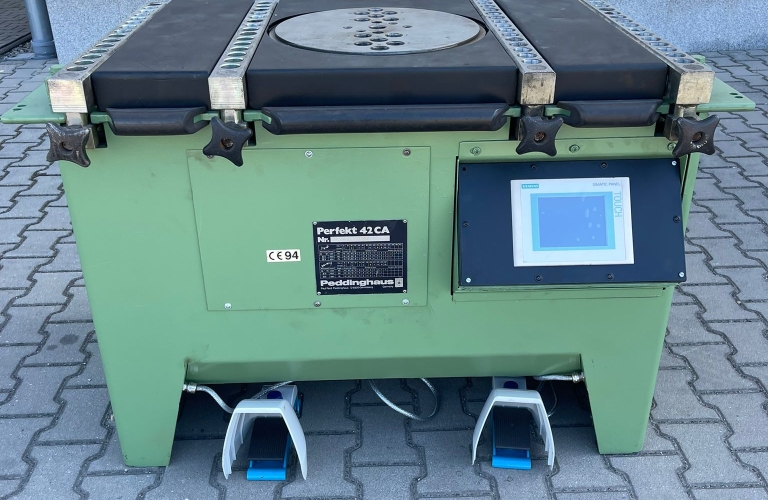

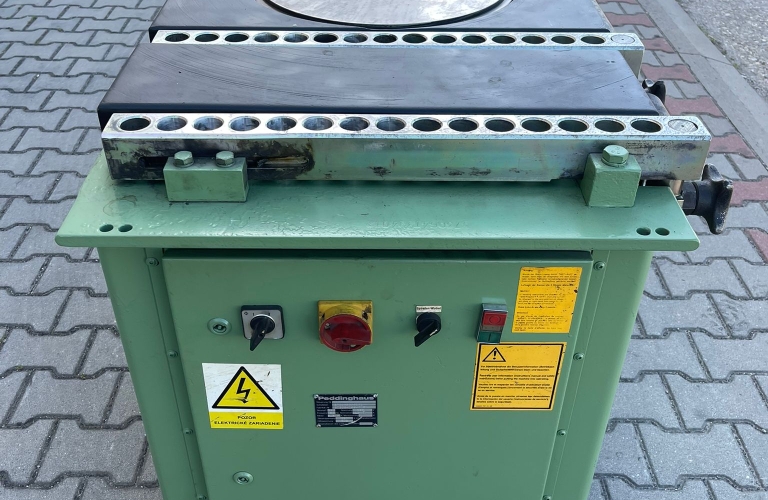

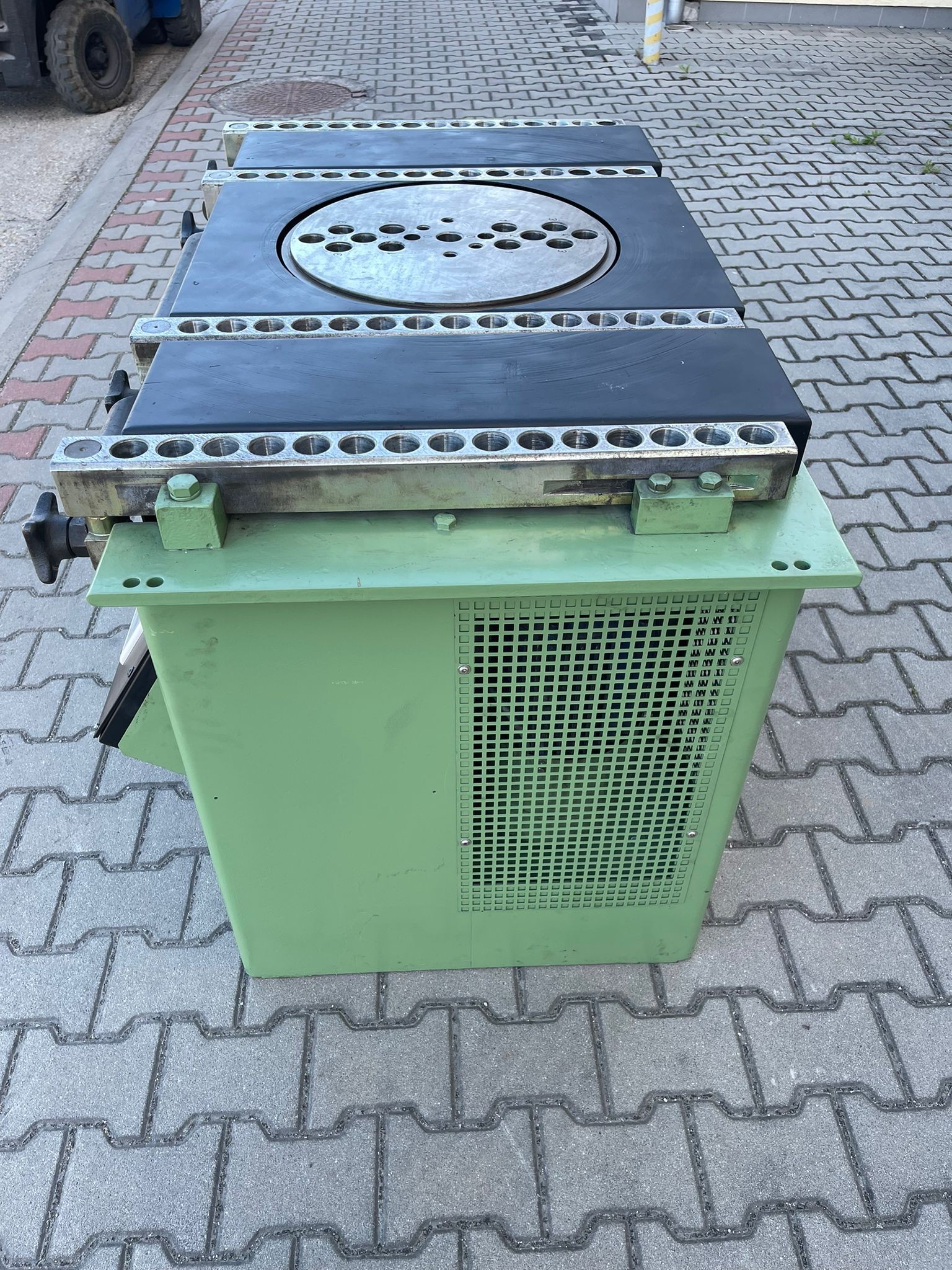

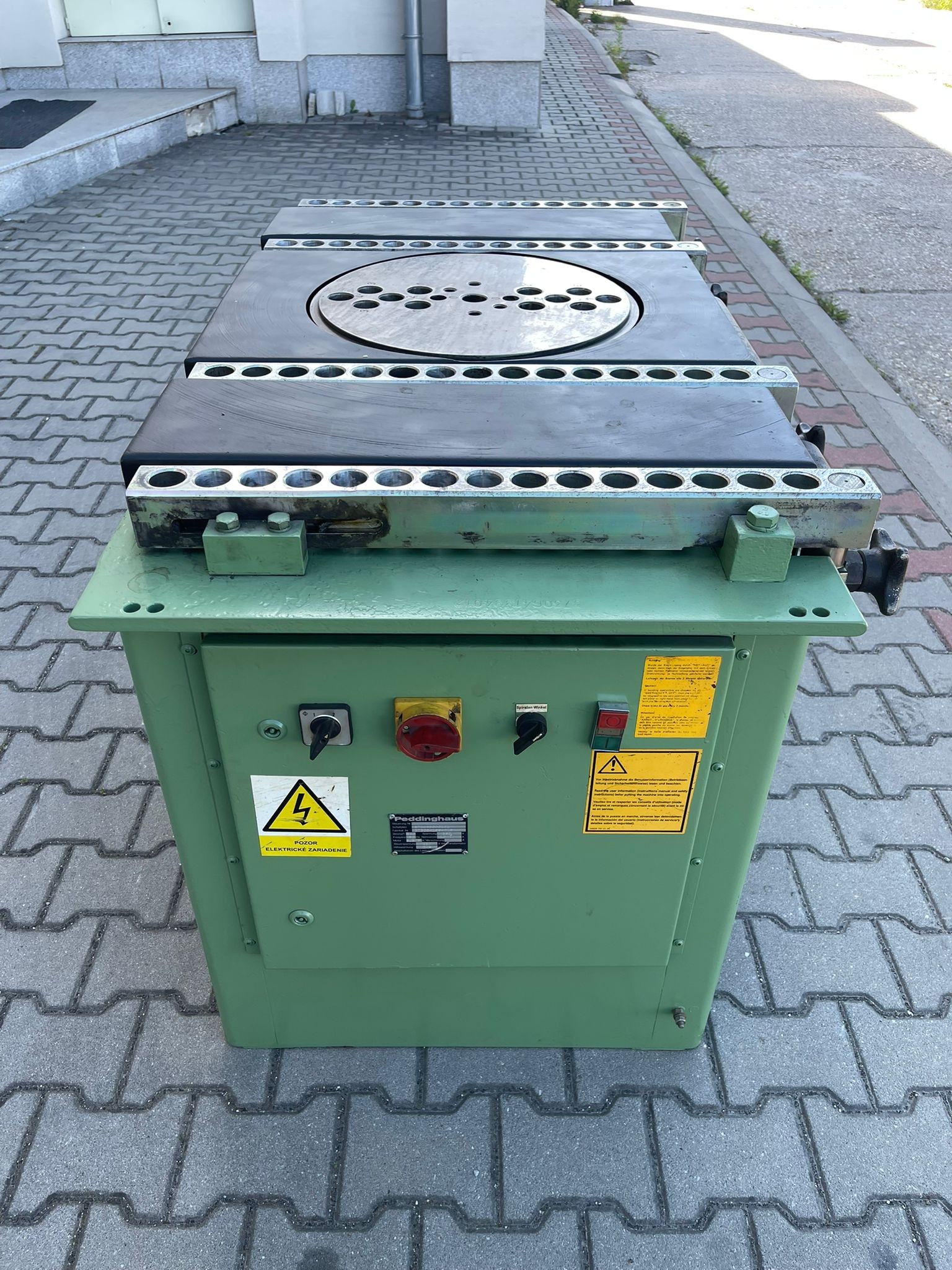

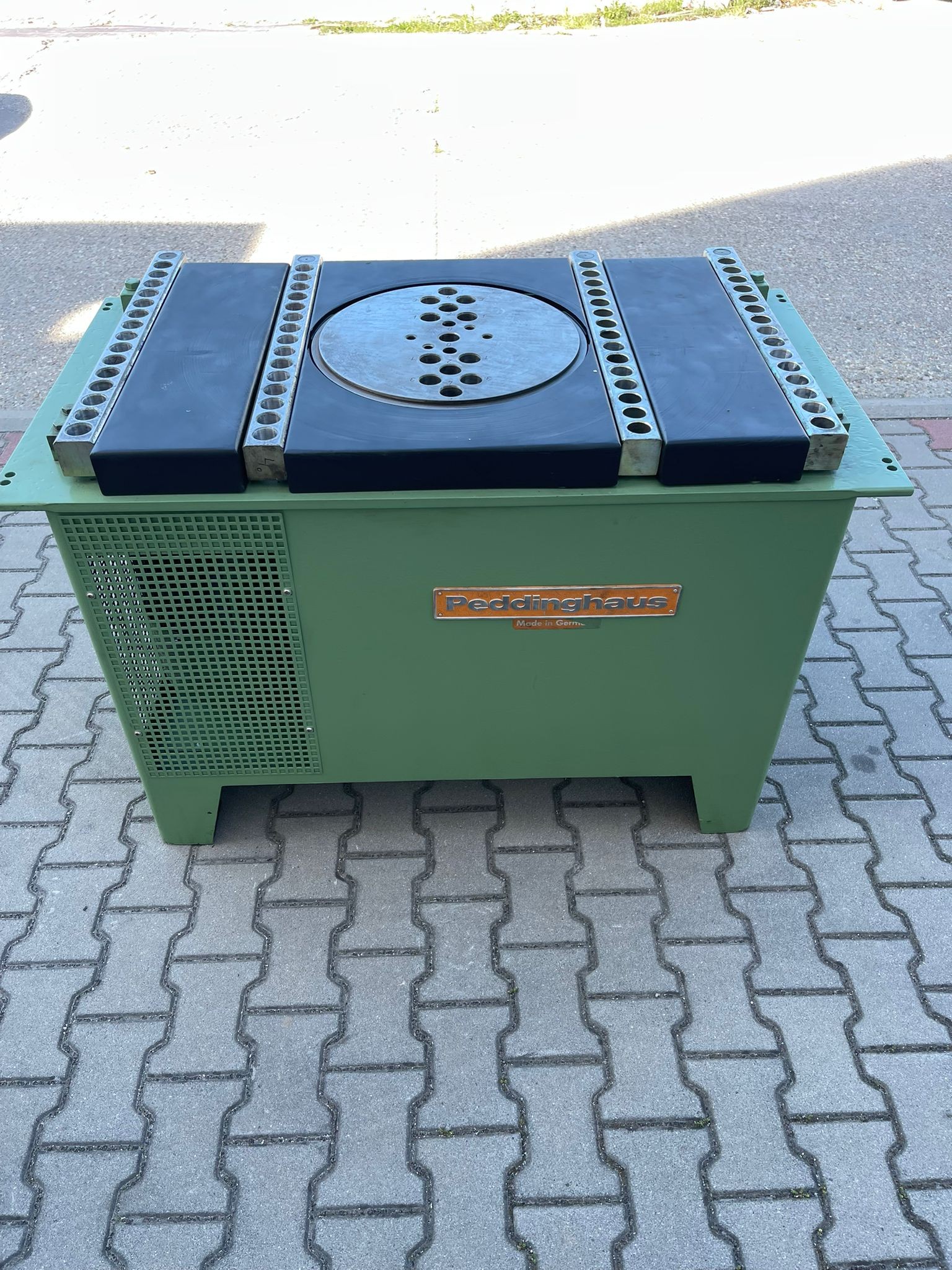

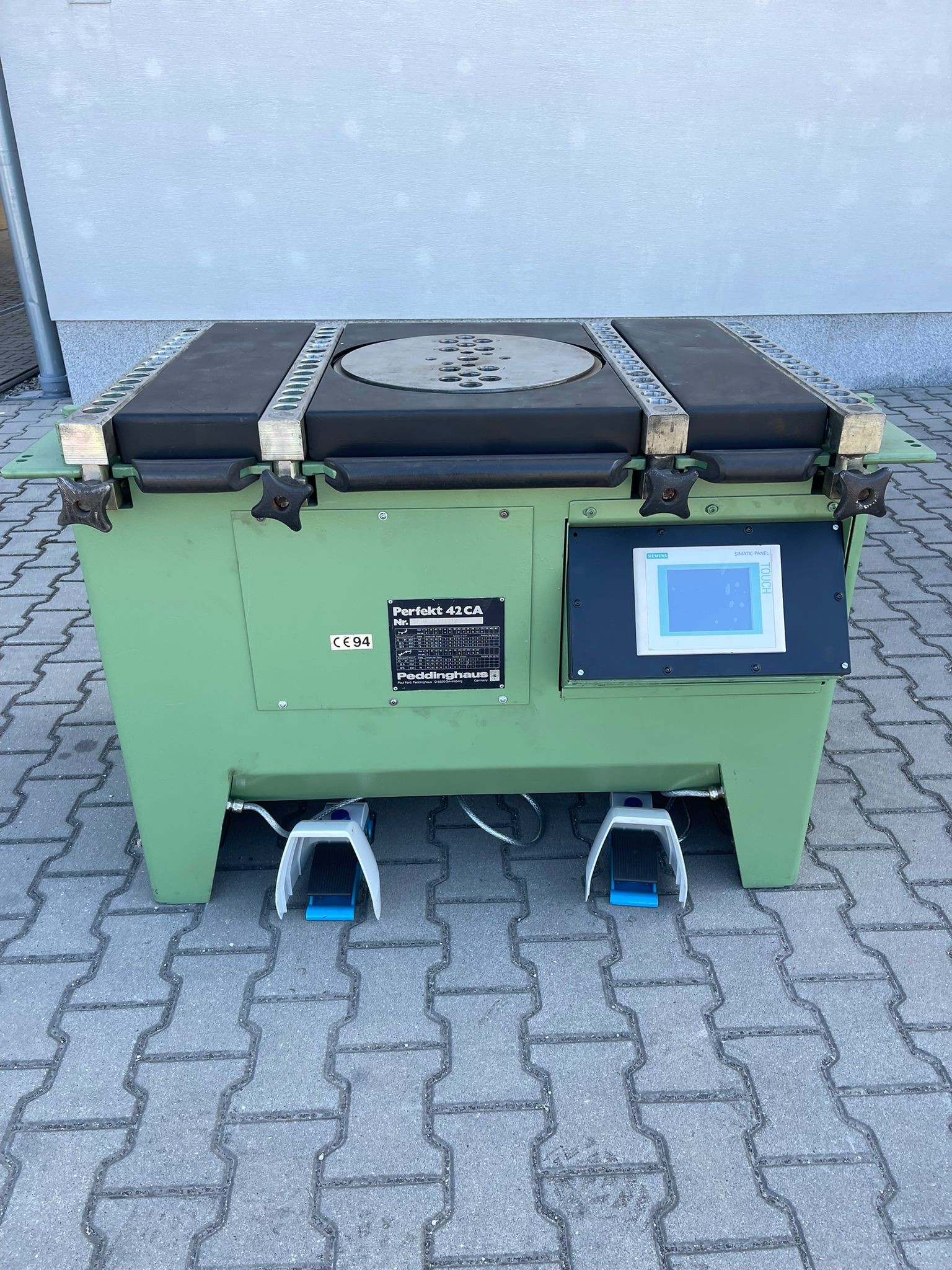

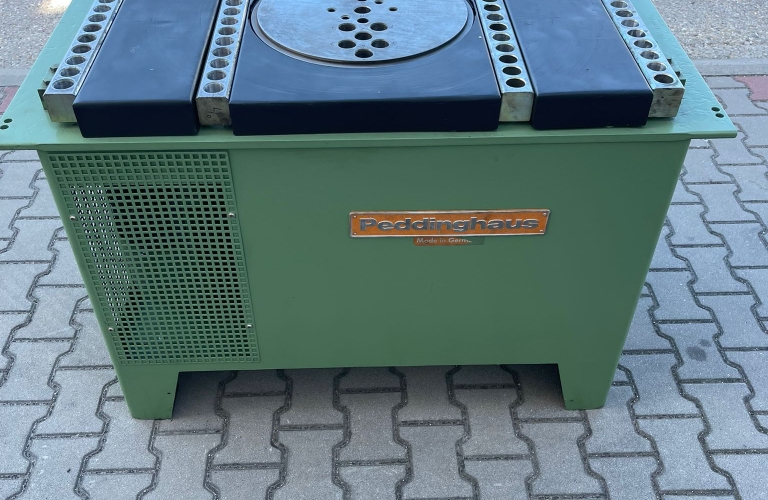

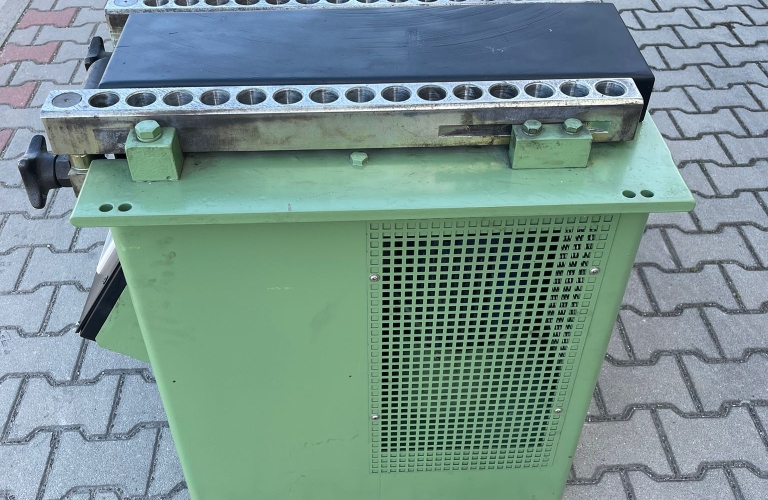

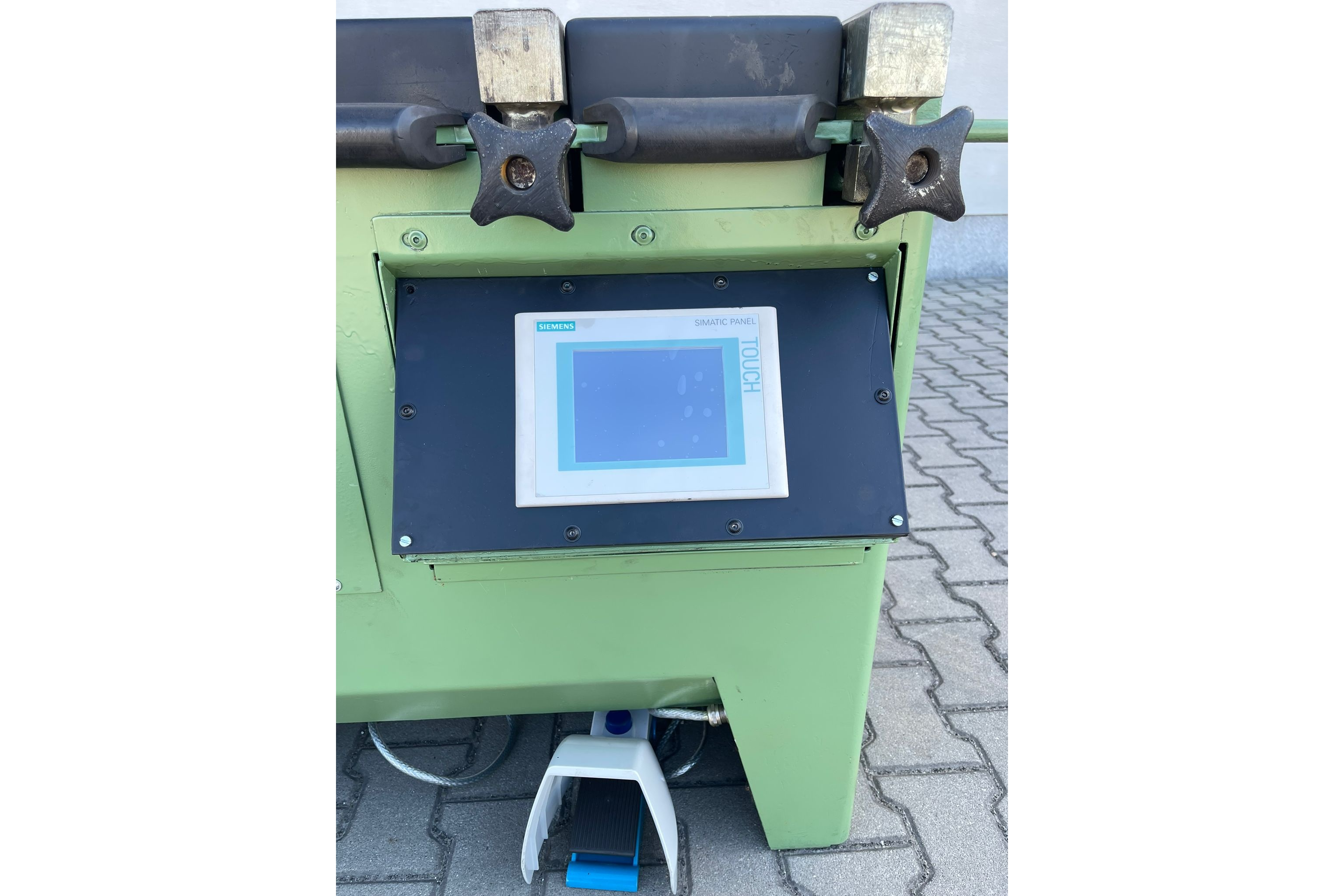

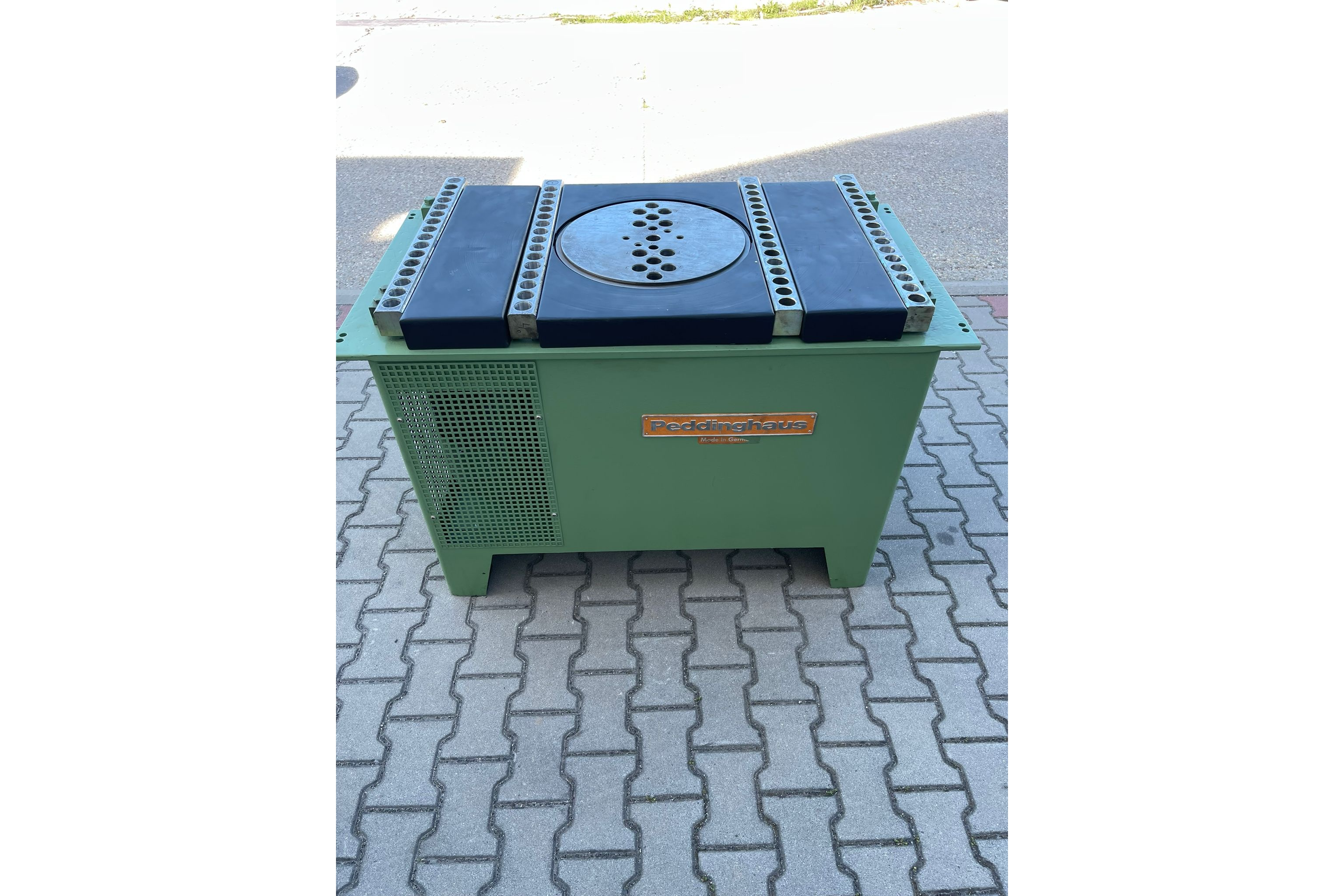

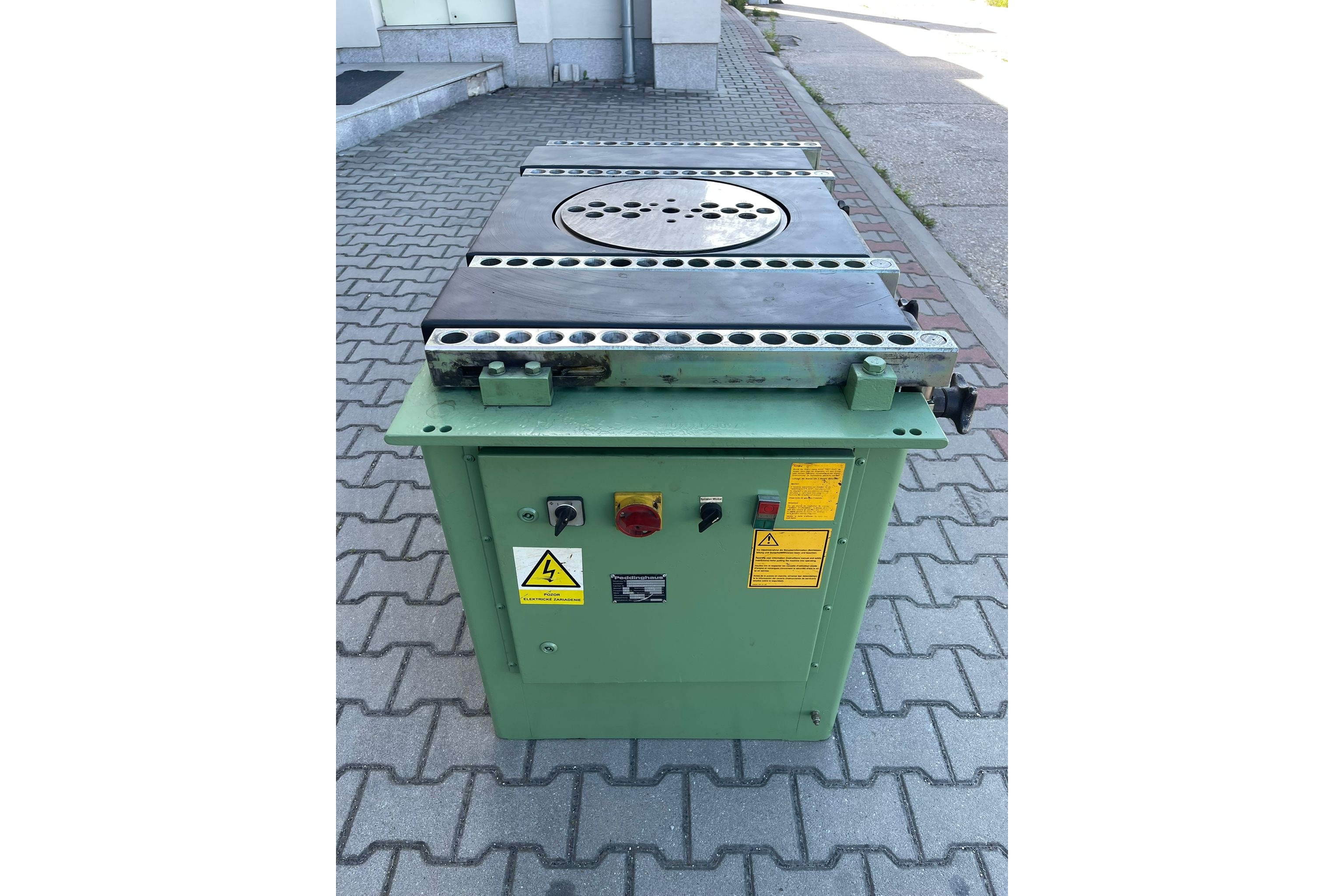

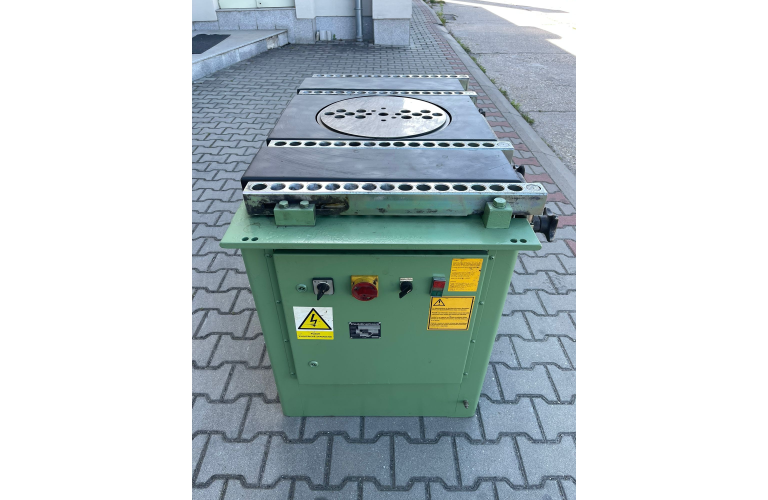

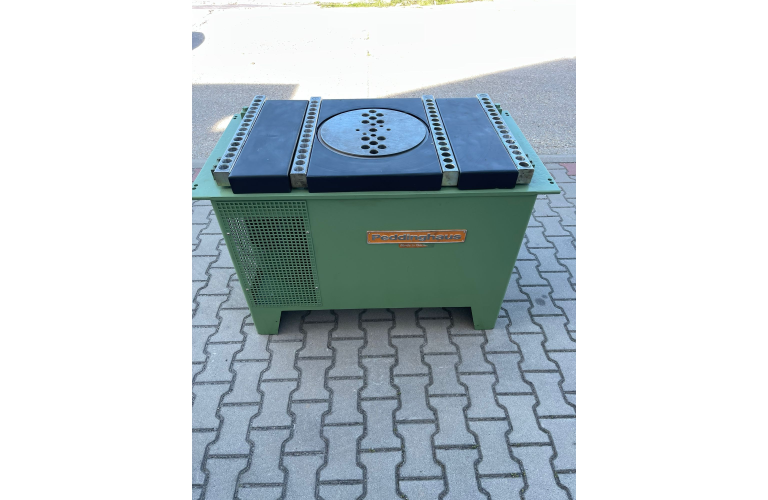

Used PEDAX Perfekt 42CA which has been upgraded to 42CC. Fully refurbished.
Technical details: | |||||||
Perfekt 42 CC | |||||||
Numbers of bars | 1 | 2 | 3 | 4 | 6 | ||
Single bend | 450 N/mm² | 42 | 32 | 28 | 25 | 16 | |
(max. bar Ø) | 650 N/mm² | 38 | 38 | 25 | 25 | 16 | |
Rebar | 850 N/mm² | 35 | 28 | 25 | 22 | 16 | |
Double bend* | 450 N/mm² | 32 | 25 | 20 | 18 | 14 | |
(max. bar Ø) | 650 N/mm² | 28 | 22 | 18 | 16 | 12 | |
Rebar | 850 N/mm² | 28 | 20 | 16 | 16 | 12 | |
Bending height - Stand. equipment | approx. mm | 300 | |||||
Bending height- with banjo** | approx. mm | 650 | |||||
Voltage | V/Hz | 400/50 | |||||
Connected load | kW | 3,5 | |||||
Turntable RPM | min. -1 | 8/16 | |||||
Net weight | approx. kg | 590 | |||||
Gross weight | approx. kg | 615 | |||||
Case dimensions | (LxWxH) cm | 154x110x110 | |||||
SIGMA MECHANICAL REBARBENDER (with 4 Pin hole rails): MODEL: DBM 42 – 4P, used, without CE mark
SIGMA MECHANICAL REBARBENDER (with 4 Pin hole rails): MODEL: DBM 42 – 4P, NEW, with CE mark
SIGMA MECHANICAL REBARBENDER (with 4 Pin hole rails): MODEL: DBM 42 – 4P, NEW, with CE mark
SIGMA MECHANICAL REBARBENDER (with 4 Pin hole rails): MODEL: DBM 42 – 4P, NEW, with CE mark
SIGMA MECHANICAL REBARBENDER (with 4 Pin hole rails): MODEL: DBM 42 – 4P, used, without CE mark
Used Peddinghaus Special 42S
Used Oscam radius machine

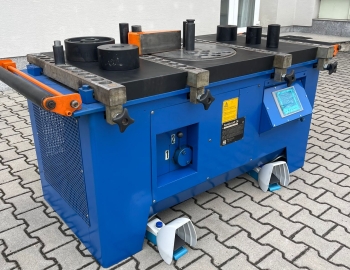

Used PEDAX Perfekt 60CB which has been upgraded to 60CC. Fully refurbished.
