Brand: | MEP |
Double Strand Wire Size: | 2 x 12 |
Machine Type: | Stirrup Machine |
Single Wire Size: | 16 |

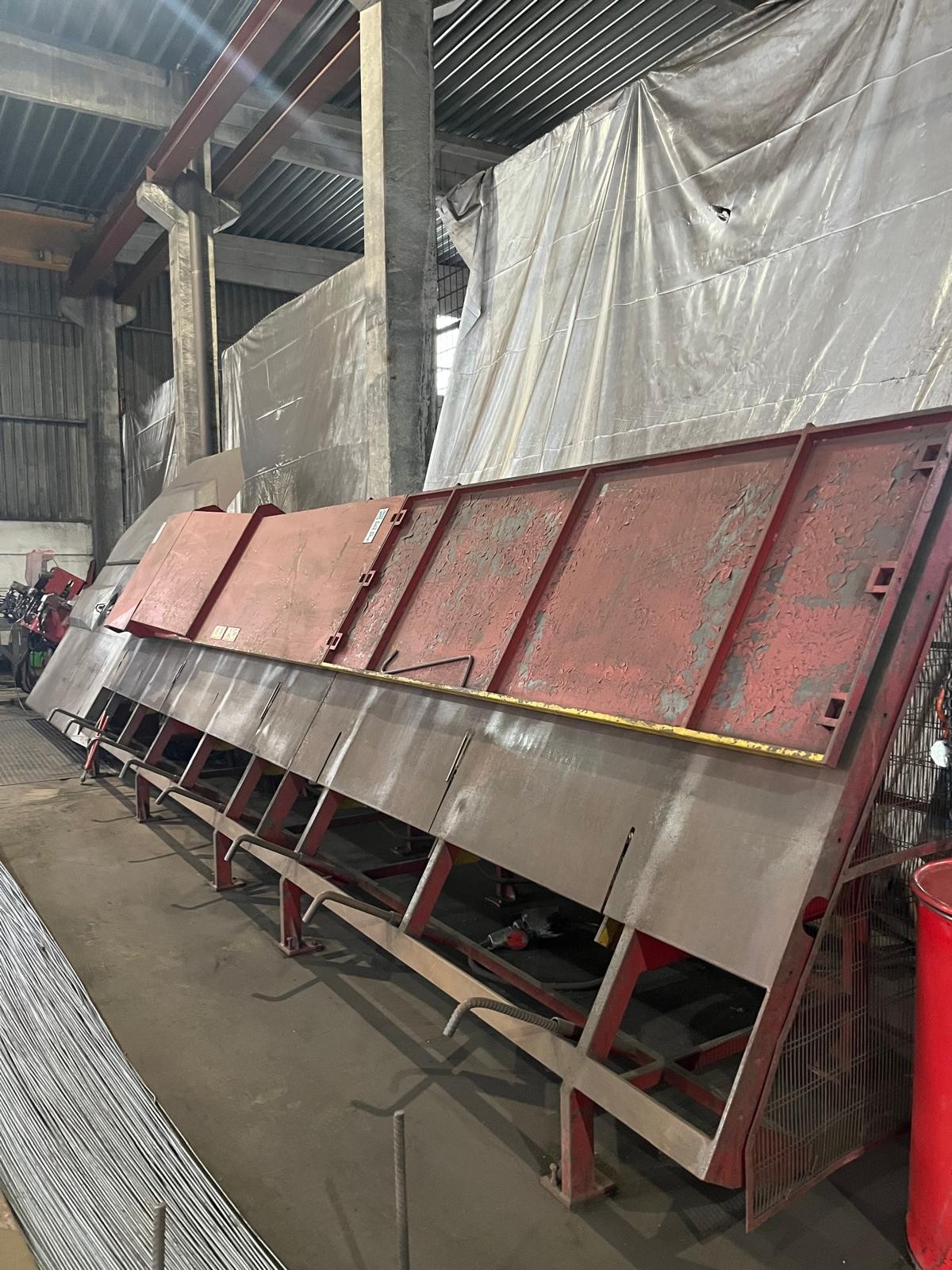

Good working condition. 4 payoffs, 12 m bench, automatic change of wire, 9413 working hours.
TECHNICAL SPECIFICATIONS
| Voltage supply | 400 V - 50 Hz |
| Others voltages upon request | 200/415 V - 50/60 Hz |
| Installed power | 34 kW |
| Average absorbed power | 23 kW |
| Hydraulic unit capacity | 320 l |
| Infeed speed | 0 ÷ 1,5 m/s |
| Bending speed | 0 ÷ 1000 °/s |
| Shearing time | 4/10 s |
| Centre forming tools diameter for small stirrups | 20-30-40-40-50-55mm |
| Centre forming tools for stirrups | 60-80-100-120 |
| Pay-off station max capacity | 3200 kg |
| Overall dimensions | |
| Machine | 4500 x 2300 x 3000 mm |

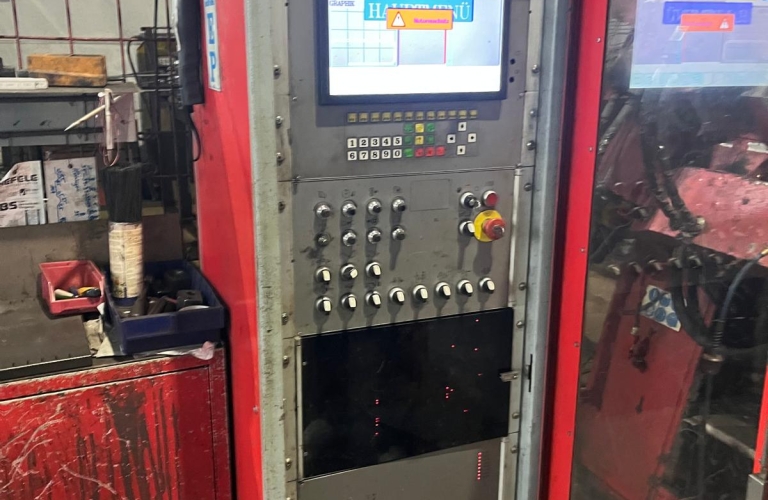

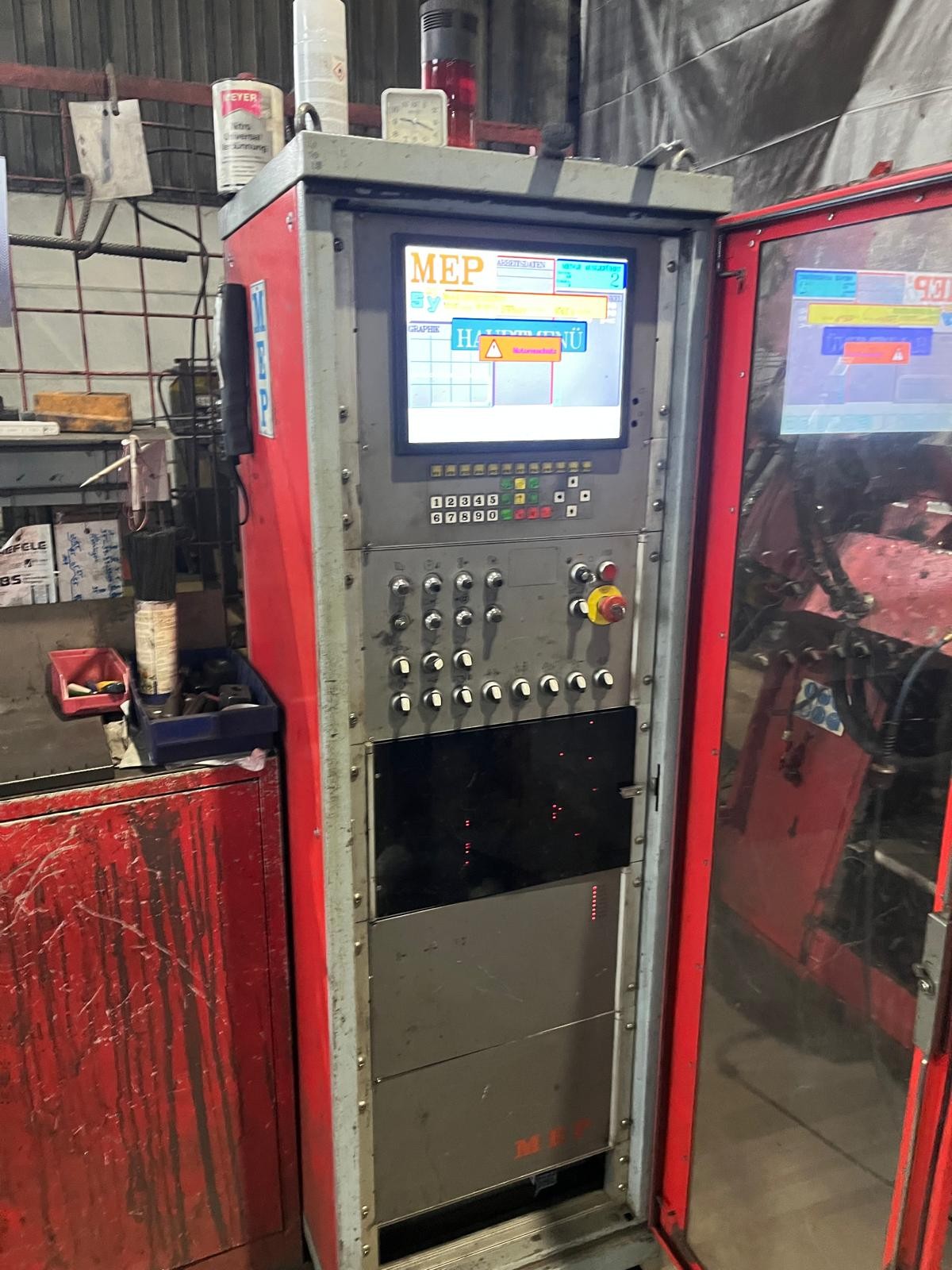

| Control cabinet | 560 x 600 x 1850 mm |
| LC pay-off station | 2500 x 2203 x 3000 mm |
| Weights | |
| Machine | 4100 kg |
| Control cabinet | 214kg |
| LC pay-off station | 1104 kg |
PRODUCTION FEATURES
| Ribbed and plain rod type allowable maximum strength | |
| Max. unit yield point | 600 N/mm2 |
| Max. tensile strength | 700 N/mm2 |
| Diameter range | |
| Single ribbed or plain rod | Ø6 ÷ 16mm |
| Double strand max. diameter | Ø12 mm |
| Operation for shape | |
| Side lengths | 1 ÷ 28 |
| Bends | 1 ÷ 27 |
| Max. bent side length | 2500 mm |
| Min. first side length | 35 mm |
| Min. last side length | 10 mm |
| Max. angle in clockwise bend | 180° |
| Max. angle in anticlockwise bend | 180° |
| Tolorances | |
| Side lengths | ±1 mm/m |
| Bends | ±1° |
| Productivity | |
| Quantity of stirrup/hour (lengths developed 1100 mm with 5 bends) | 1100 |
| Program capacity | |
| Programmable memory codes | No limits |
| Pre-programmed memory codes | 69 |
MEP System S from 1994, 4 pay offs, refurbished
Used Progress EBA S 16, from 2008, 4 payoffs, automatic change of the wire. Good working condition.
Used Twinmaster 12 S, from 2004, 2 payoffs. 6 or 9 m bench (option)
Used EVG Polybend PBC 2-16, from 2007, 2 payoffs, 12 m bench, both sides bending, New PC from 2022. ...
EVG Polybend stirrup machine PBE 2-16 comes with 2 Pay offs - build in 2000Comes with a complete new...
Twinmaster 16 X with 2 pay-off reelsSteel grade700 N/mm²Wire diameterSingle strand: Ø 6-16 mm and do...

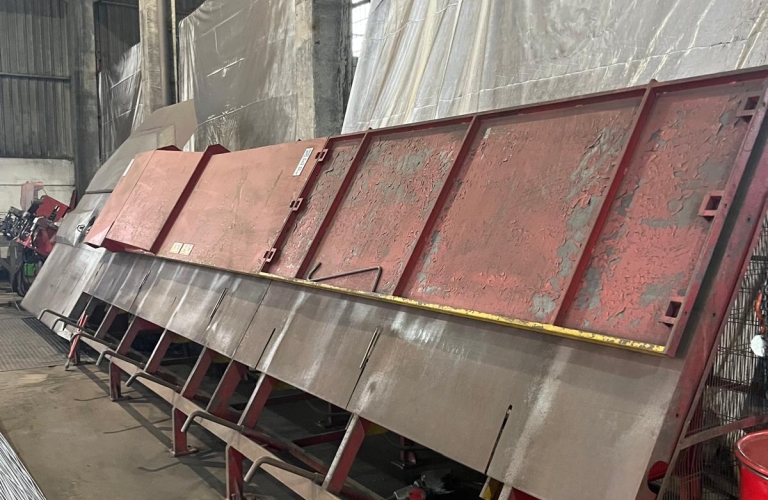

Used MEP Mini Syntax 16 from 2006, 4 payoffs, bench, good working condition

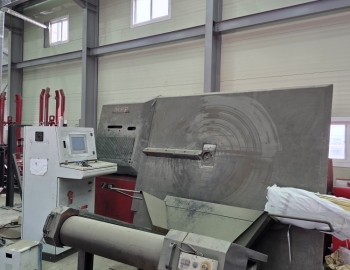

Used MEP F13. 2 payoffs. 170 working hours. Excellent working condition.
MEP System S from 1994, 4 pay offs, refurbished
Used EVG Polybend PBC 2-16, from 2007, 2 payoffs, 12 m bench, both sides bending, New PC from 2022. ...
Used SCHNELL Coil 16, EVO HS-CF, 2011, 4 payoffs, automatic change of wire. Refurbished.
EVG Polybend stirrup machine PBE 2-16 comes with 2 Pay offs - build in 2000Comes with a complete new...
Used MEP Mini Syntax 16 from 2006, 4 payoffs, bench, good working condition
RaXe 16/6 from 2003, very good working condition.

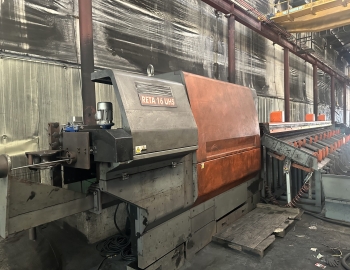

Used Schnell Reta 16-09 Super V.1, from 2017, 2 payoffs, 9 m bench. Working condition.
