Brand: | MEP |
Double Strand Wire Size: | 2 x 12 |
Machine Type: | Stirrup Machine |
Single Wire Size: | 16 |

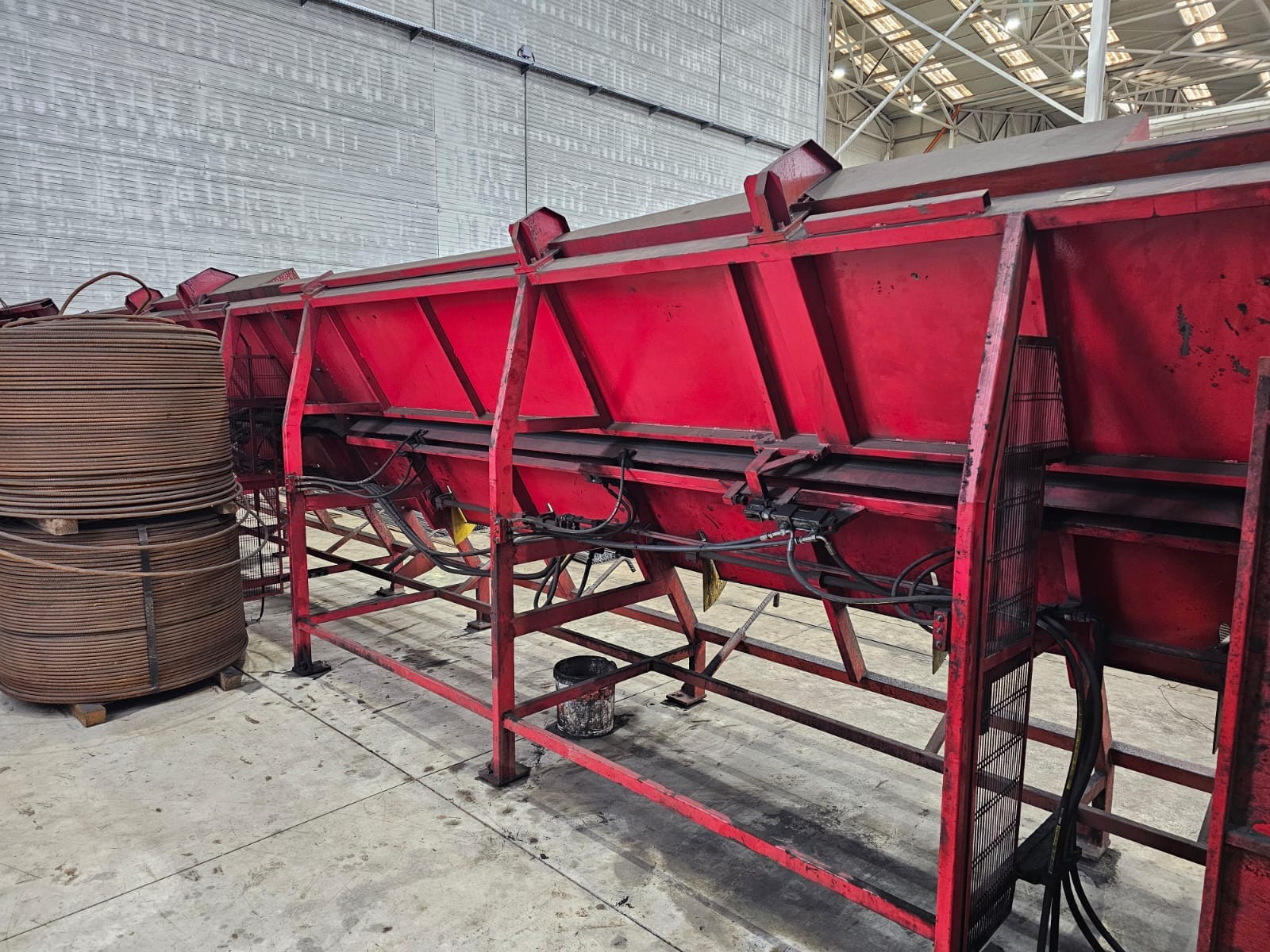

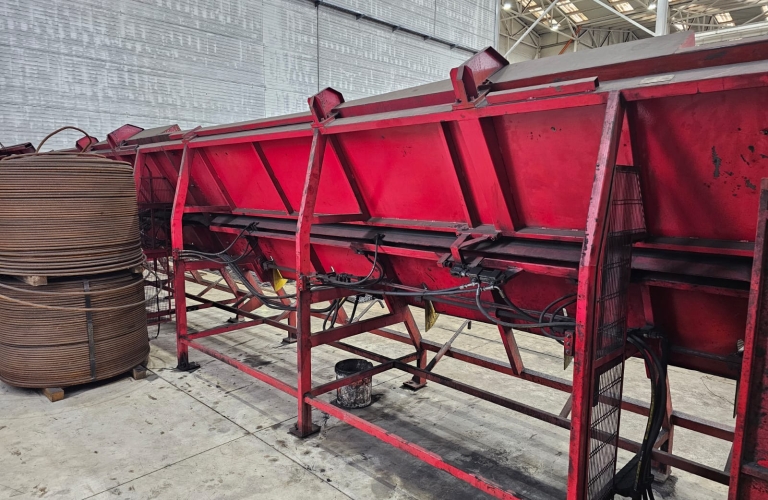

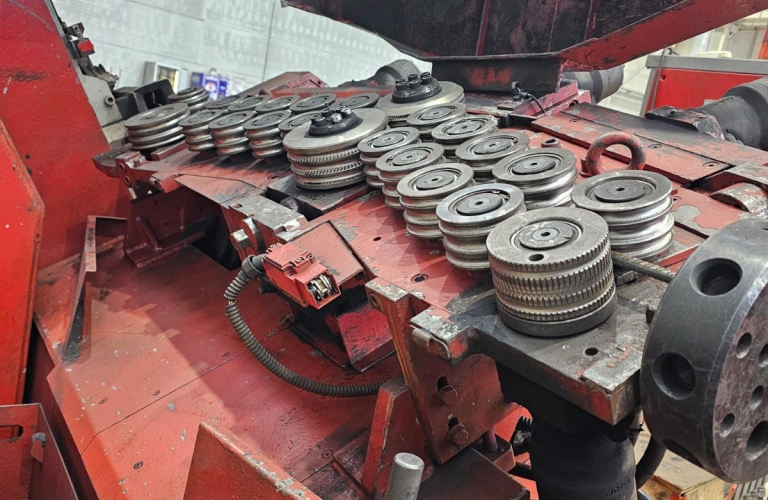

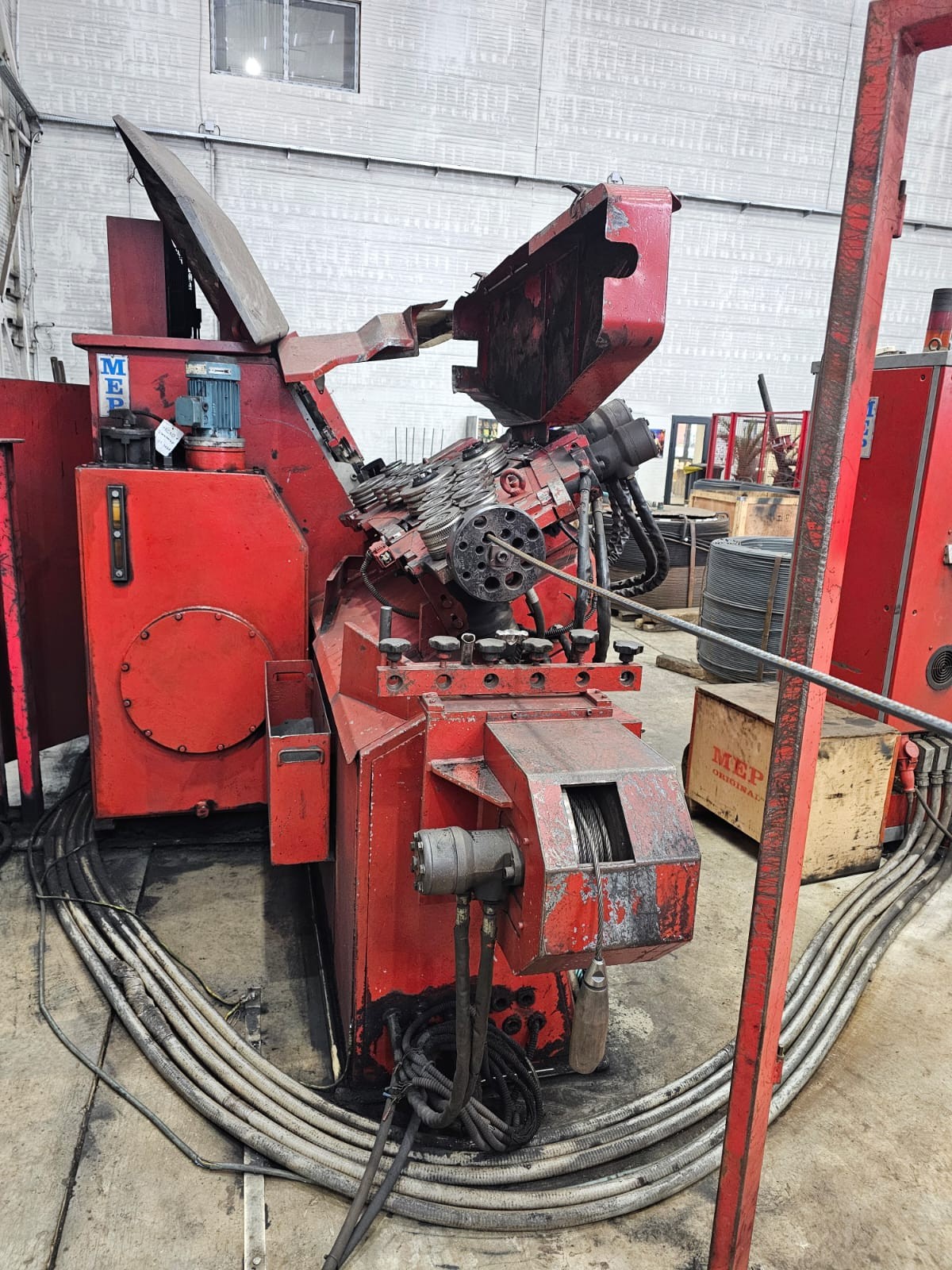

Used MEP Mini Syntax 16, from 1999, 3 payoffs, 12 m bench. Working condition.
TECHNICAL SPECIFICATIONS
| Voltage supply | 400 V - 50 Hz |
| Others voltages upon request | 200/415 V - 50/60 Hz |
| Installed power | 34 kW |
| Average absorbed power | 23 kW |
| Hydraulic unit capacity | 320 l |
| Infeed speed | 0 ÷ 1,5 m/s |
| Bending speed | 0 ÷ 1000 °/s |
| Shearing time | 4/10 s |

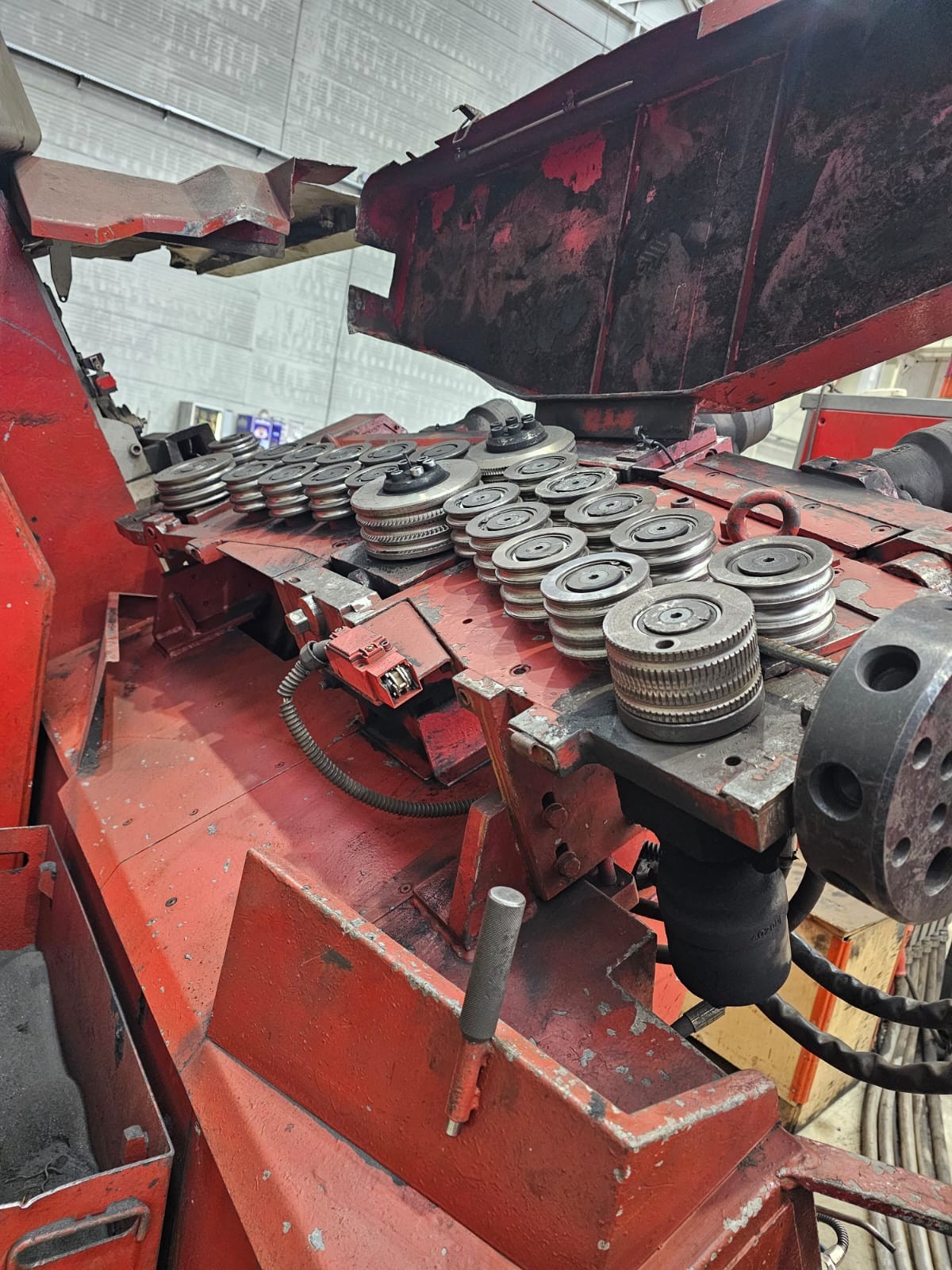

| Centre forming tools diameter for small stirrups | 20-30-40-40-50-55mm |
| Centre forming tools for stirrups | 60-80-100-120 |

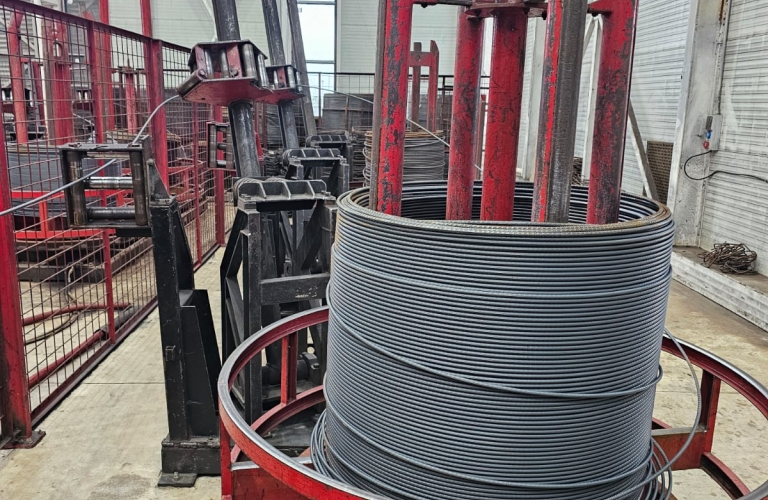

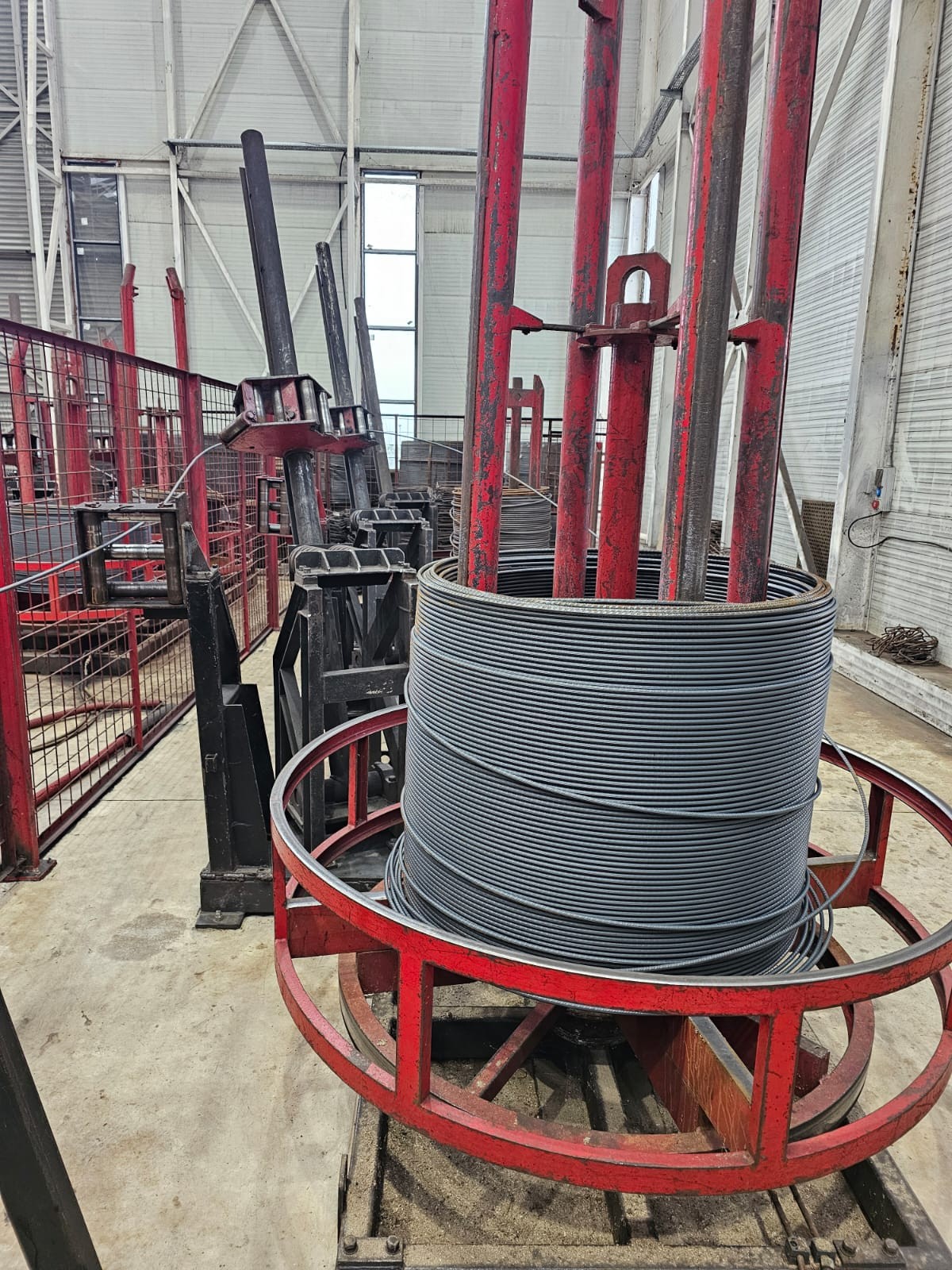

| Pay-off station max capacity | 3200 kg |
| Overall dimensions | |
| Machine | 4500 x 2300 x 3000 mm |

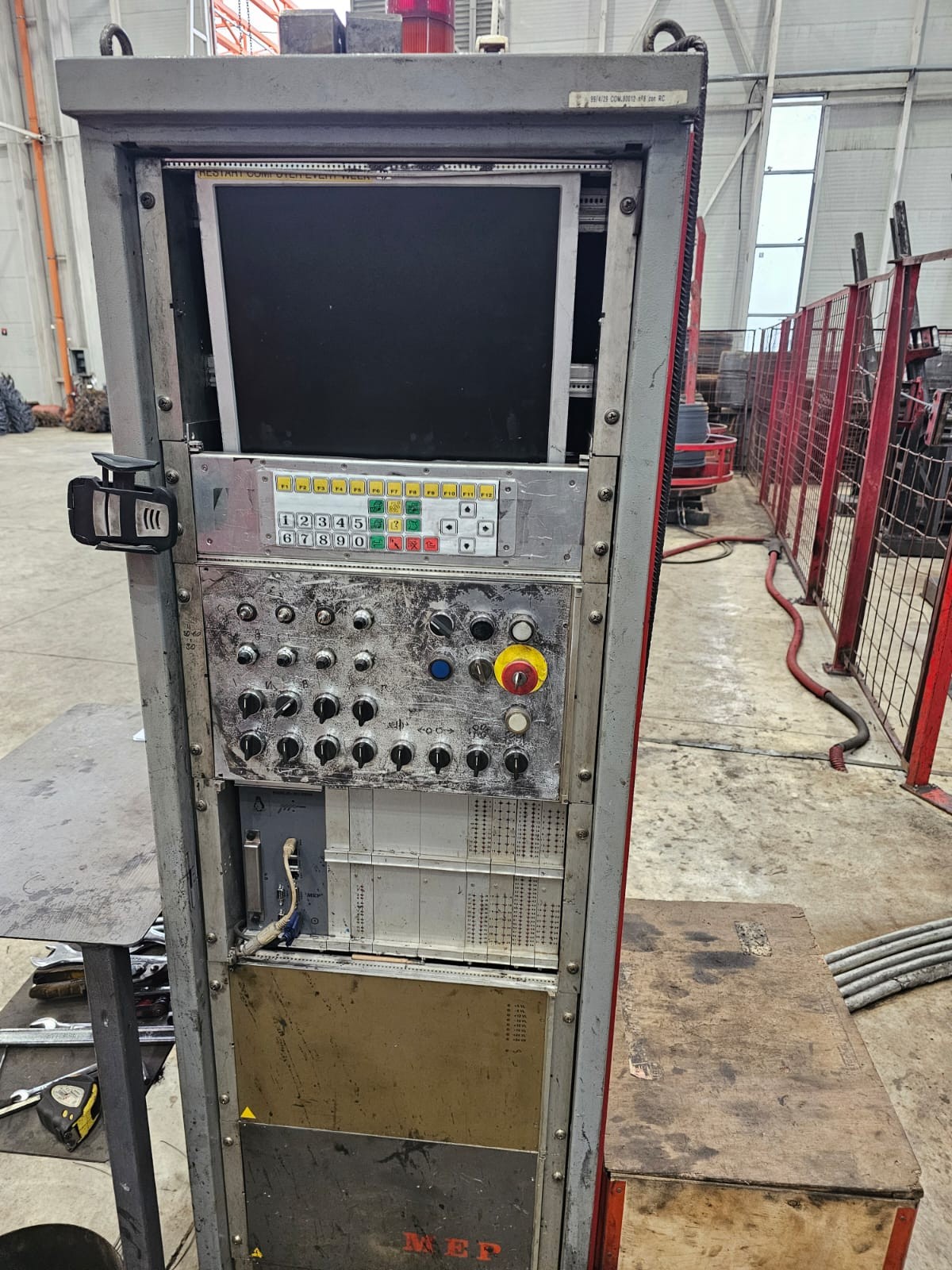

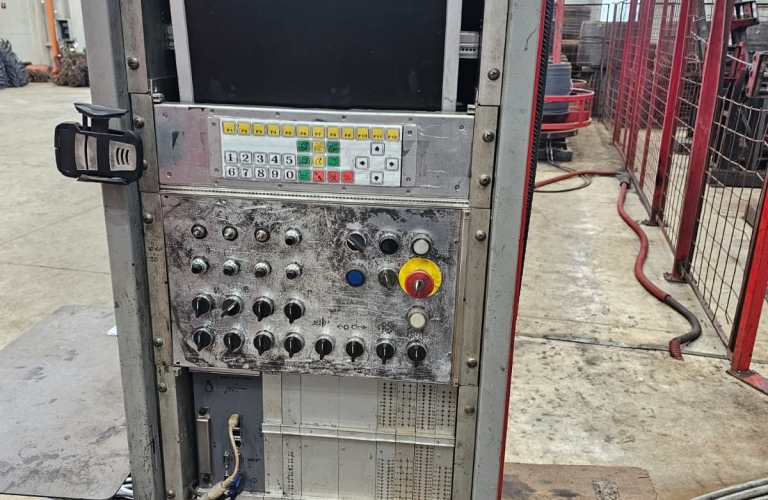

| Control cabinet | 560 x 600 x 1850 mm |
| LC pay-off station | 2500 x 2203 x 3000 mm |
| Weights | |
| Machine | 4100 kg |
| Control cabinet | 214kg |
| LC pay-off station | 1104 kg |
PRODUCTION FEATURES
| Ribbed and plain rod type allowable maximum strength | |
| Max. unit yield point | 600 N/mm2 |
| Max. tensile strength | 700 N/mm2 |
| Diameter range | |
| Single ribbed or plain rod | Ø6 ÷ 16mm |
| Double strand max. diameter | Ø12 mm |
| Operation for shape | |
| Side lengths | 1 ÷ 28 |
| Bends | 1 ÷ 27 |
| Max. bent side length | 2500 mm |
| Min. first side length | 35 mm |
| Min. last side length | 10 mm |
| Max. angle in clockwise bend | 180° |
| Max. angle in anticlockwise bend | 180° |
| Tolorances | |
| Side lengths | ±1 mm/m |
| Bends | ±1° |
| Productivity | |
| Quantity of stirrup/hour (lengths developed 1100 mm with 5 bends) | 1100 |
| Program capacity | |
| Programmable memory codes | No limits |
| Pre-programmed memory codes | 69 |
MEP System S from 1994, 4 pay offs, refurbished
Used MEP Staf 12 S, 2002, 3 payoffs, working condition.
Used EVG Polybend PBC 2-16, from 2007, 2 payoffs, 12 m bench, both sides bending, New PC from 2022. ...
Used Twinmaster 12 S, from 2004, 2 payoffs. 6 or 9 m bench (option)
Used Schnell Formula 12 HS, from 2004, 2 payoffs, 40000 hours, good working condition. Baumuller.
Used MEP Planet 20 +, from 2014, 5 payoffs, automatic change of the wire, 12 m bench, 12, collecting...
Used EVG Polybend PBX 16 3D, from 2021. 4 payoffs, the bench. Excellent working condition.

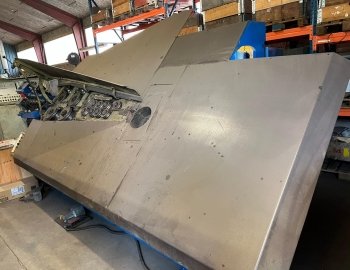

EVG Polybend stirrup machine PBE 2-16 comes with 2 Pay offs - build in 2000Comes with a complete new...
