Brand: | SCHNELL |
Double Strand Wire Size: | 2 x 10 |
Machine Type: | Stirrup Machine |
Single Wire Size: | 12 |

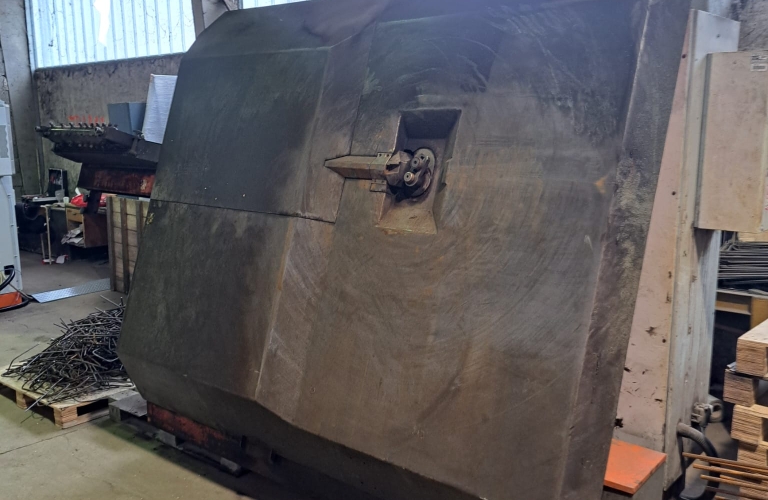

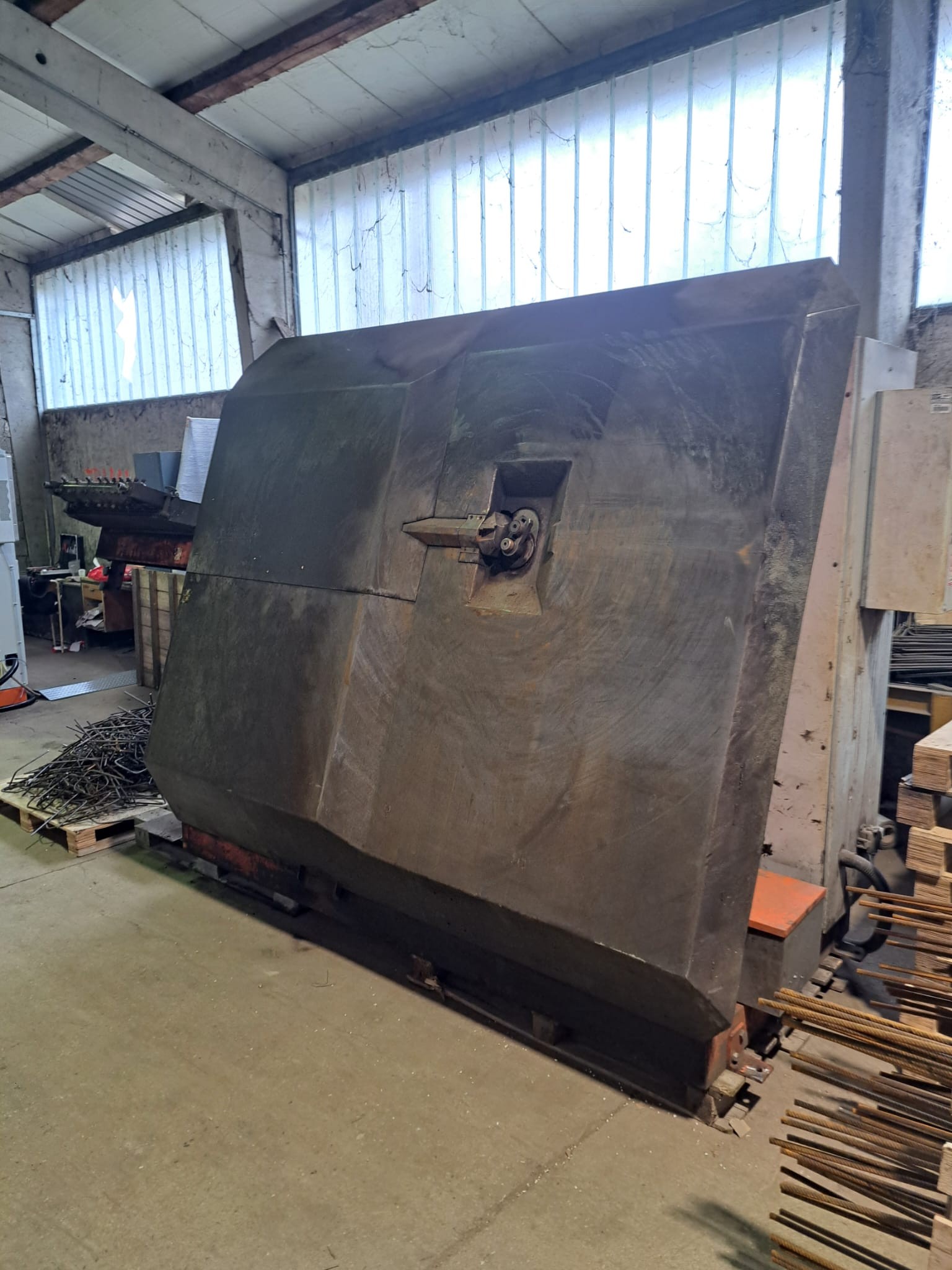

Used SCHNELL Prima 12, 2008, without payoffs, good working condition
Function: Automatic bidirectional stirrup bender for the production of hot rolled or cold drawn wire.

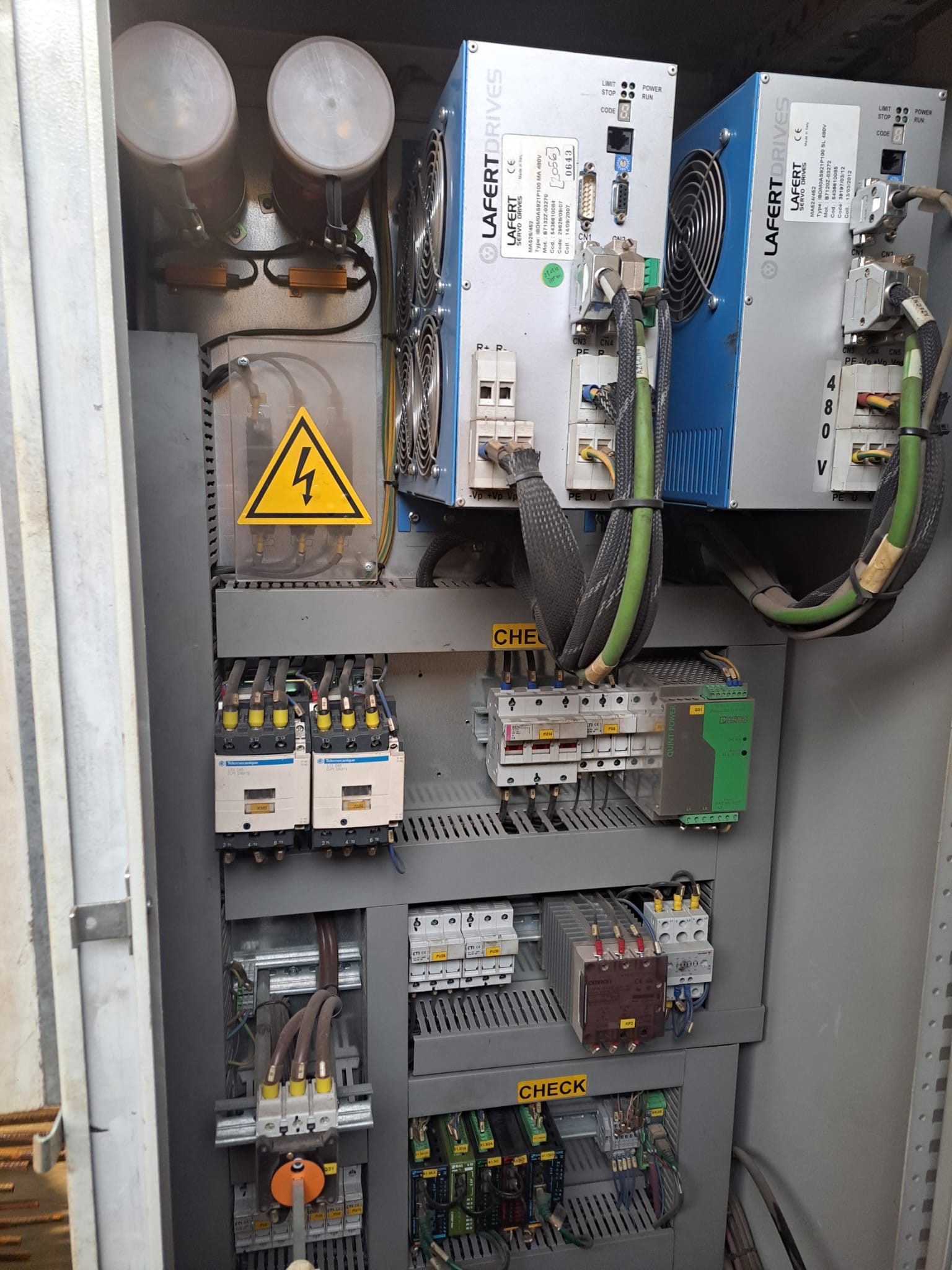

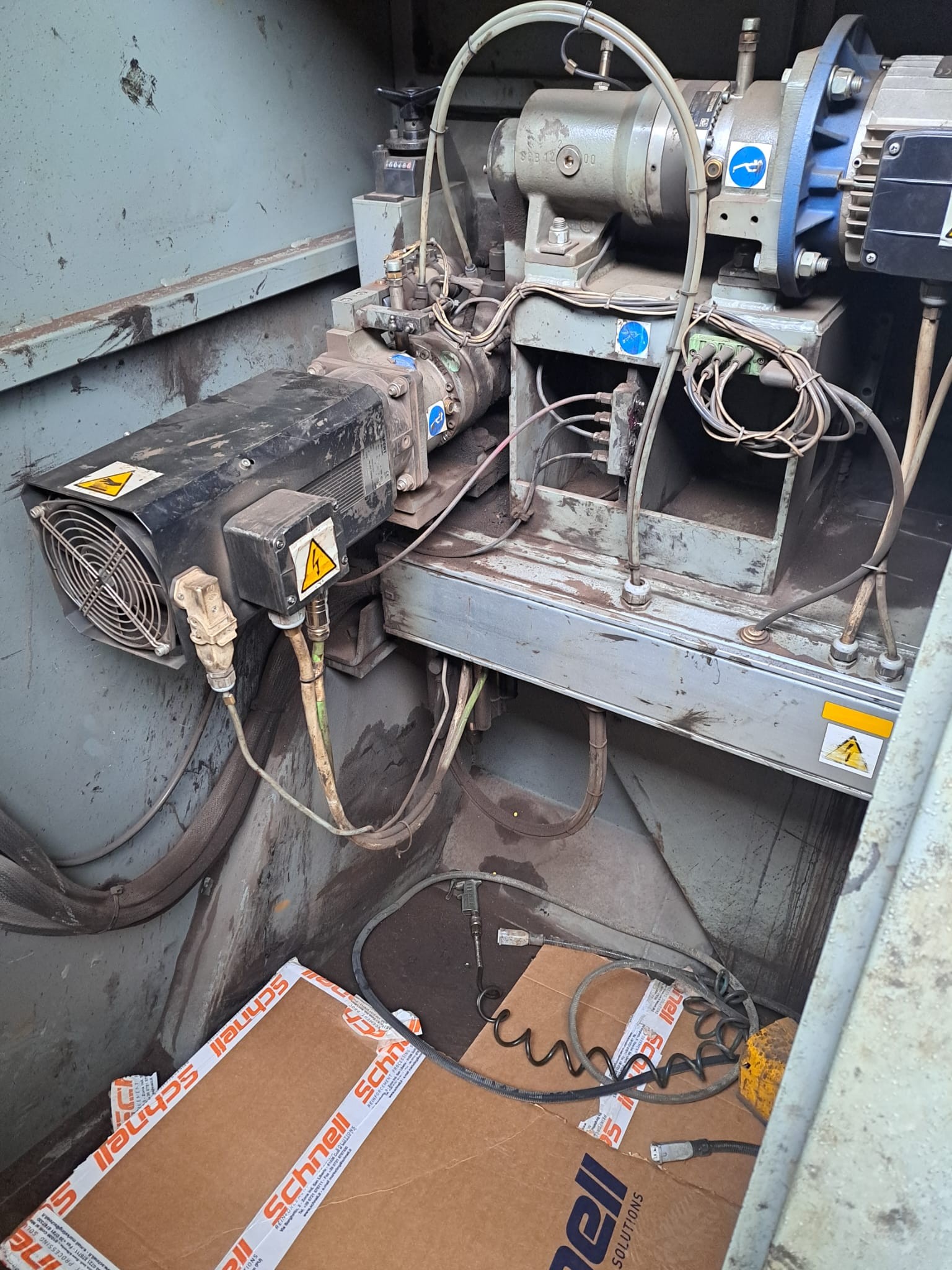

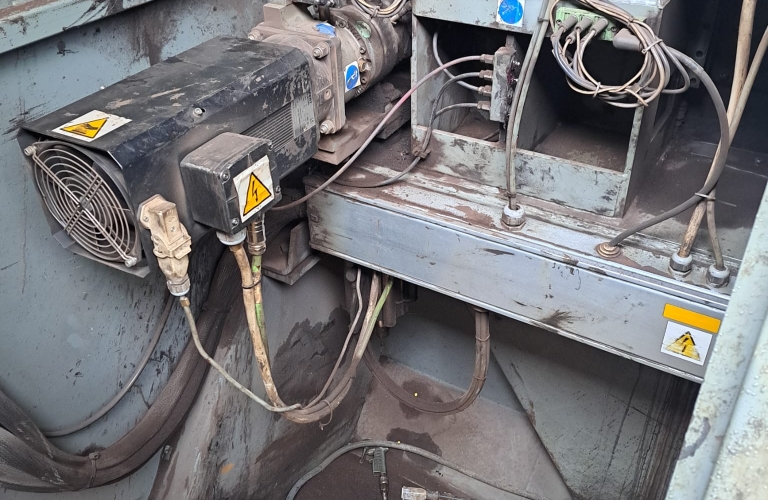

Drive by digital electric servomotors.
Capacity: 2 Wires: Ø 6-8 mm 1 Wire: Ø 6-12.7 mm
Performance: Duration of a standard cycle (5-fold stirrup, total length 1,200 mm): 3 seconds (with 1 or 2
wires):3 sec.
Configuration: Straighteners with mechanical memory and independent adjustment on both wires; computer
alphanumeric; Serial connection;
Dimensions: 3,530 x 1,330 x 2,180 (h) mm
Weight: approximately 2,300 Kg.
Average consumption
Electrical energy: 3 Kw/h (400 V/50 Hz; 480V/60 Hz) (depending on the diameter of the wire) Compressed air: pressure of machine operation 7 bars
Advantages of Prima 12
Prima is a fast, reliable, functional stirrup bender at an advantageous price; It is the basic equipment for any plant of
production of rebar or prefabricated. In addition, the double roller system (Schnell Patent) guarantees a
easy and effective straightening, with which this machine (along with the bar collecting channel, available on request)
It can be perfectly used as a straightener.
