EVG Polybend PBX 16 A 3D 2026013

 Description
Automatic heavy-duty machine for the processing of hot-rolled or cold-rolled rebar wire. Wire advance is ensured by a driven roller-type straightening unit. 8 straightening rolls are driven by an electrical servomotor and mechanical power take-off gear.
 Technical Specifications

3D Option (H):

Yes

Brand:

EVG

Double Strand Wire Size:

2 x 12

Machine Type:

Stirrup Machine

Single Wire Size:

16

  • Machine info:

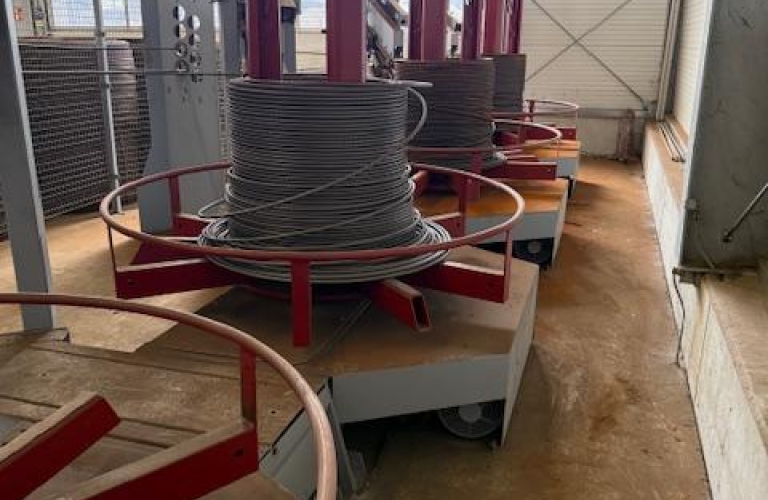

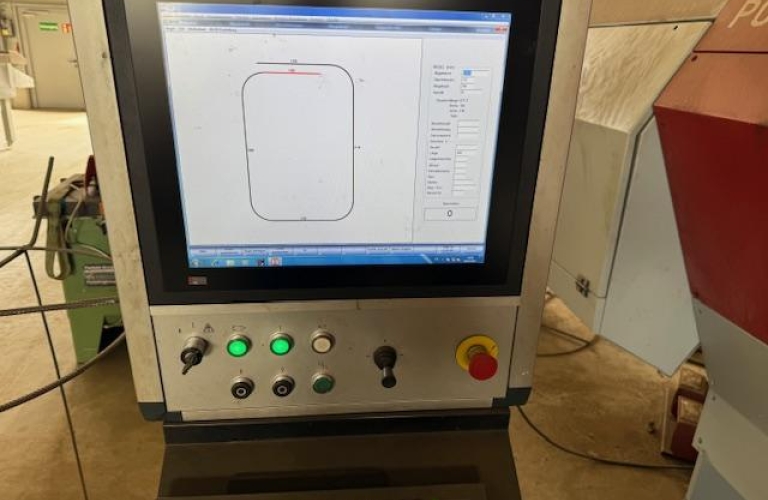

    EVG Polybend PBX 16 A with 3 D function, from 2014, 4 motorised payoffs (5t), automatic wire changer, 6 m bench. Refurbished in 2022. New touch display (2023). Good working condition.

  • Technical Specifications:

    Single Strand:

    6-16mm

    Double Strand:

    2 x 6-12mm

    Bending Angle:

    +/- 200 degree

    Bending Speed:

    Max. 1.800 degree/ sec

    Advanced Speed:

    Speed gear:

    Power gear:


    Max. 185 m/min

    Max. 125 m/min

    Power drive (incl. Hydrualics + cooler)

    35kW

    Supply voltage:

    400 V, 50 Hz, 3ph, mains according to EN 60204-1, IEC 60364-4-41 TN-C


  • Production year:
    2014
