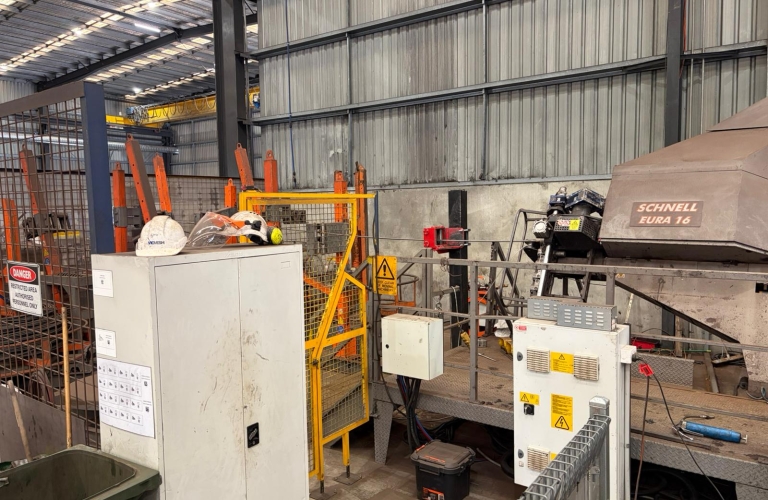

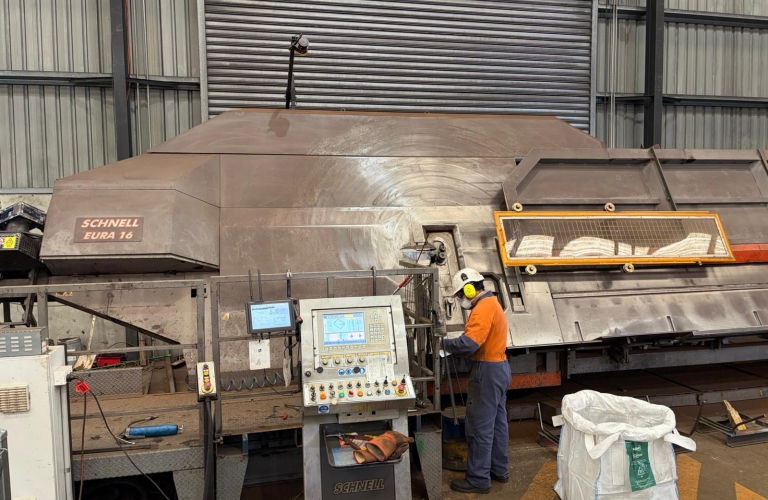

SCHNELL EURA 16 2026038

Description

Stirrup bender and bar shaping machine from coil with 2 bending heads for the production of stirrups and shaped wires with bends at both ends using wires up to Ø 16 mm (#5). Driven by electric servomotors. Also available HS version machine. \- Max. pulling speed: 140 m/min (460 ft/min) - HS Version: 200 m/min (660 ft/min) \- Straighteners (horizontal-vertical) with electronic and independent setting for the 2 wires with Joystick\- Anti-Twist electronic device (Optional)- Patented feed unit that allows independent advancement for single o double wire(Optional)- 2 bending unit (upper and lower) \- 4 pulling drive wheels \- Cutting unit with adjustable wire guide, reversible mobile and fixed cutting blades - Web Teleassistance 3D version for the production of tri-dimensional pieces. The 'bridge' version (Eura 16 Bridge) is suitable for accepting an optional mobile carriage which allows collecting and classifying the manufactured stirrups and rebars.

Technical Specifications

3D Option (H):	Yes
Brand:	SCHNELL
Double Strand Wire Size:	2 x 16
Single Wire Size:	16

More specifications

Machine info:

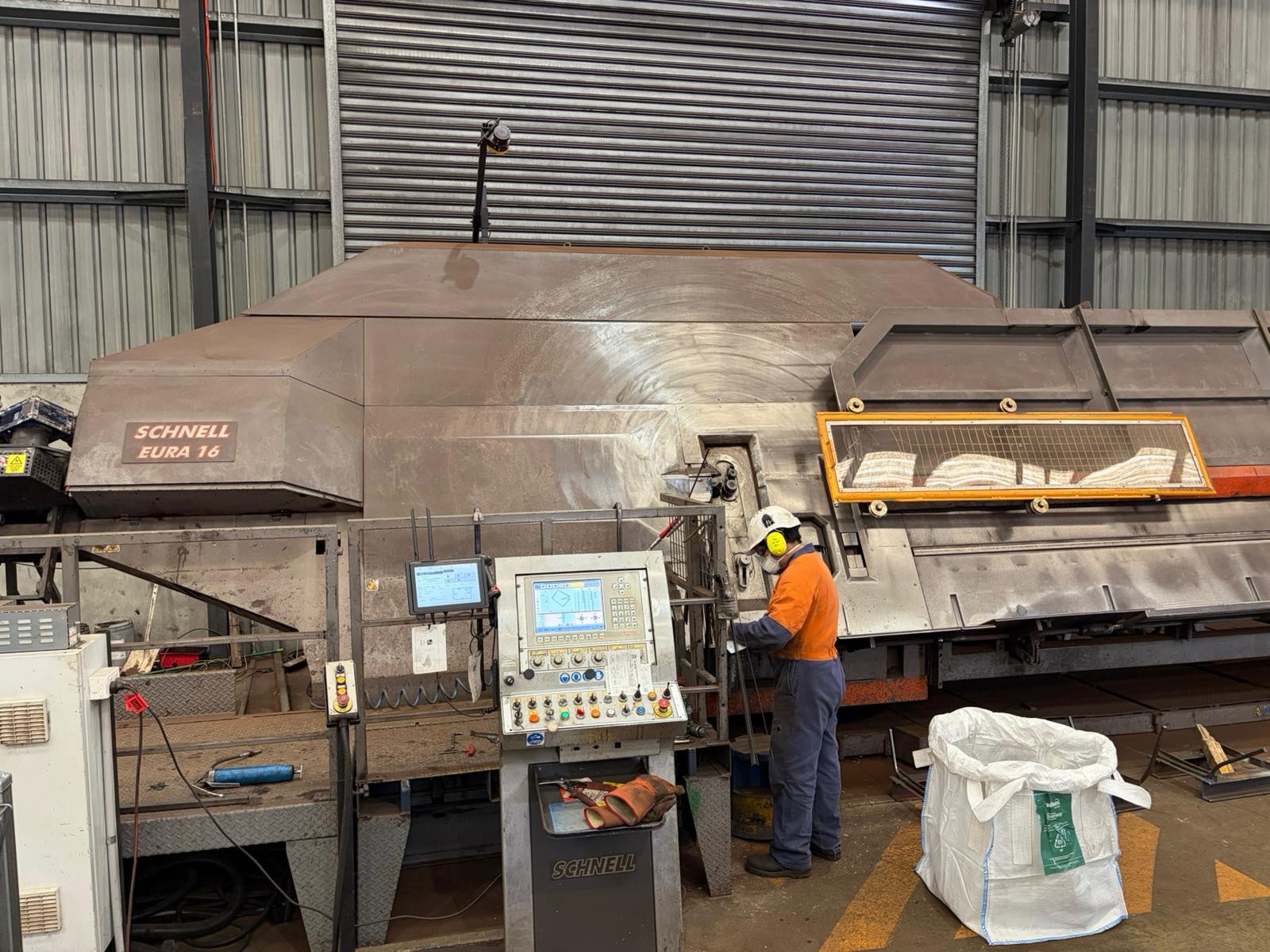

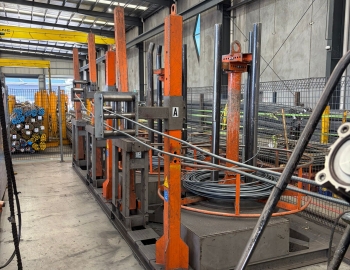

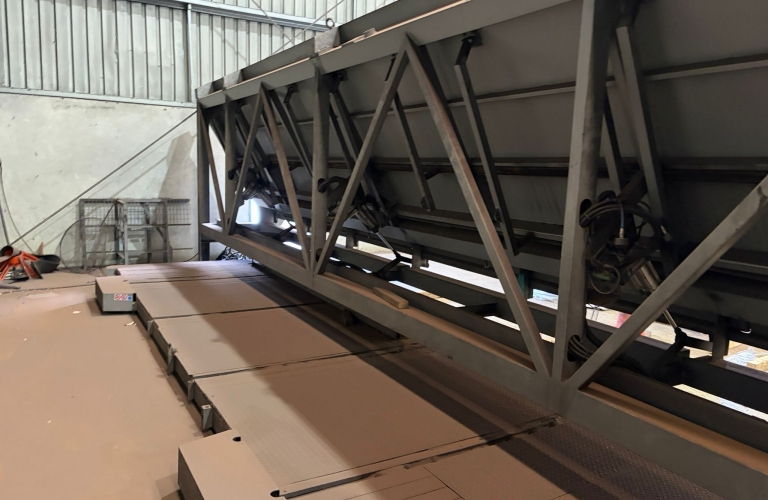

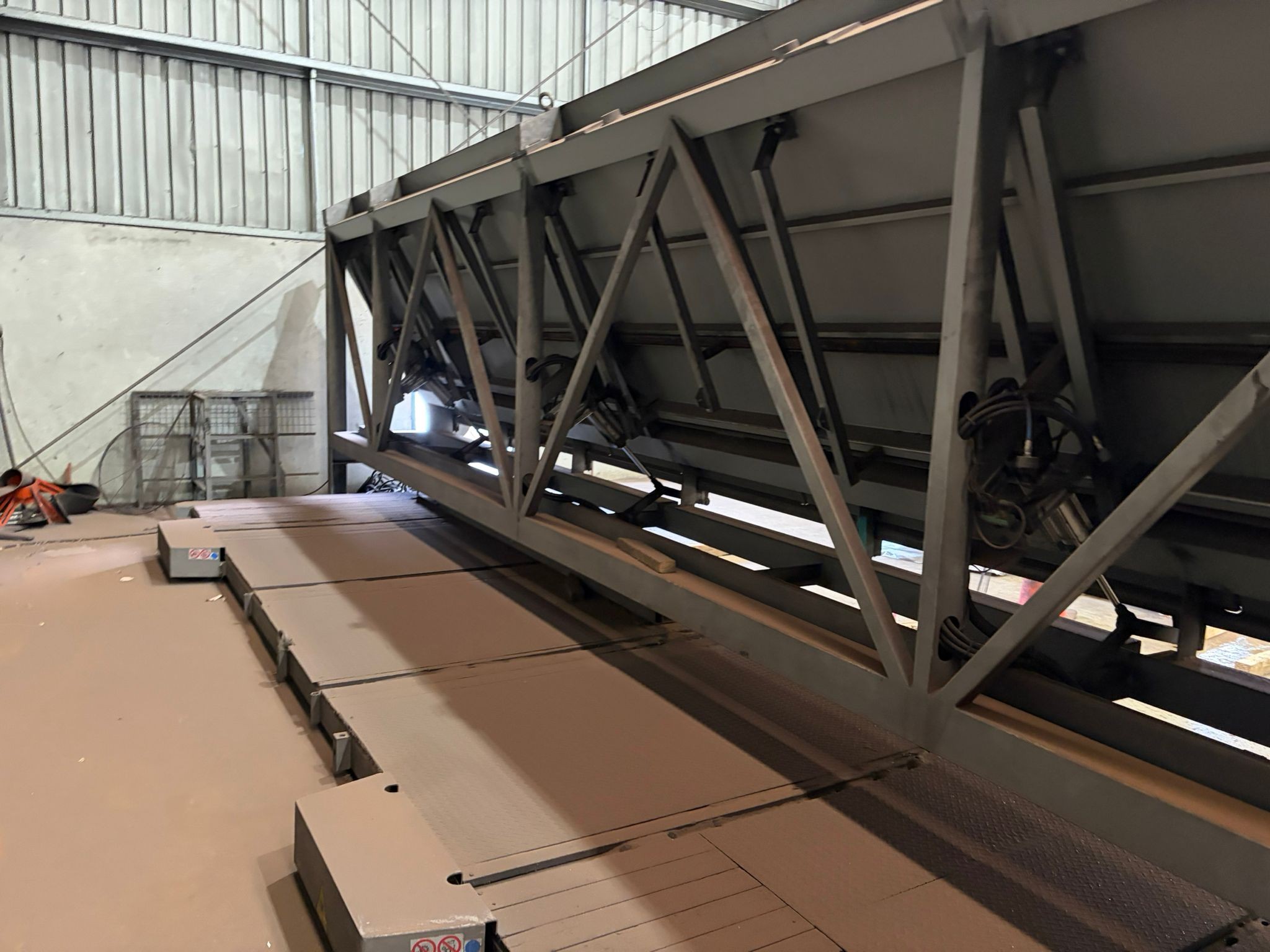

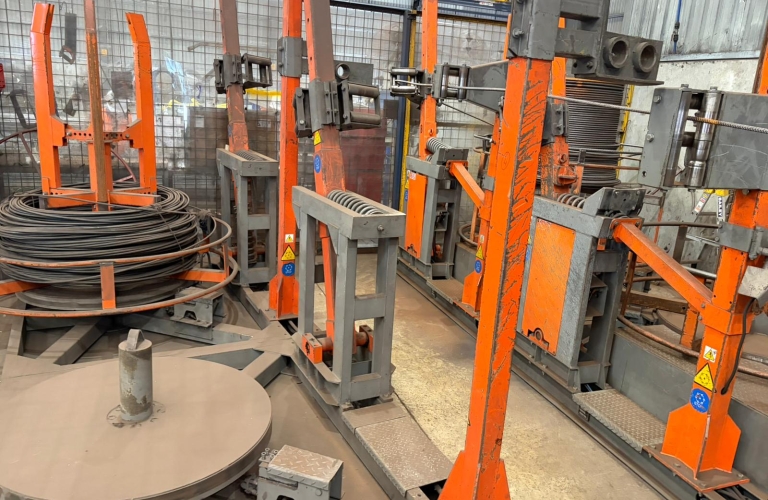

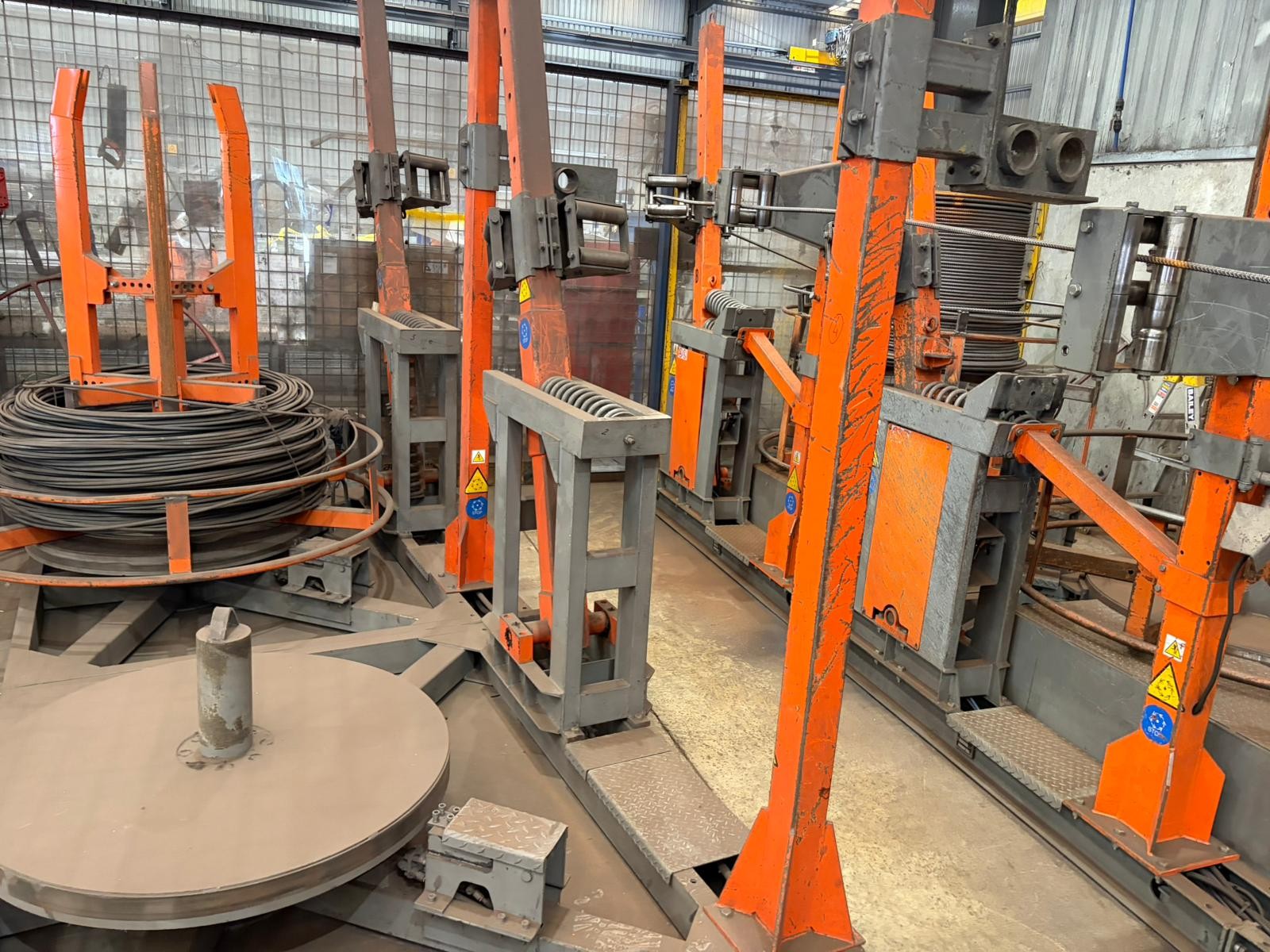

Used SCHNELL EURA 16, 2006, refurbished in 2016 by Schnell, 4 payoffs, 12 m bench, collecting unit, automatic change of the wire. Good working condition.

Processed wire type
Single strand

Double strand

Pulling speed
HS Version
Bending speed
Average power consumption

Coil
1 Ø 6÷16 mm (#5)

2 Ø 6÷13 mm (#4)

140 m/min (460 ft/min)
200 m/min (660 ft/min)
1680°/sec
5 kWh
