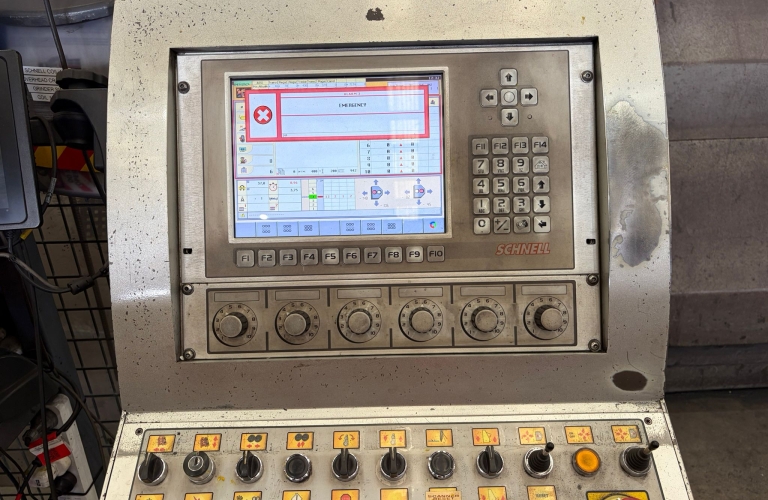

SCHNELL Coil 16 2026039

Description

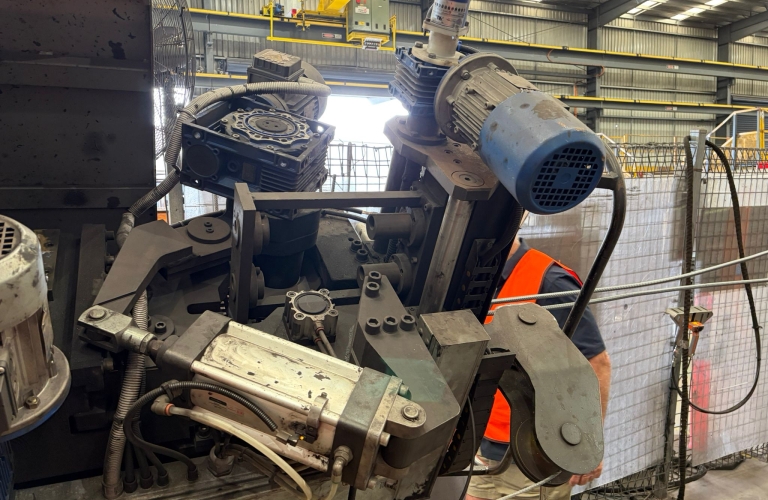

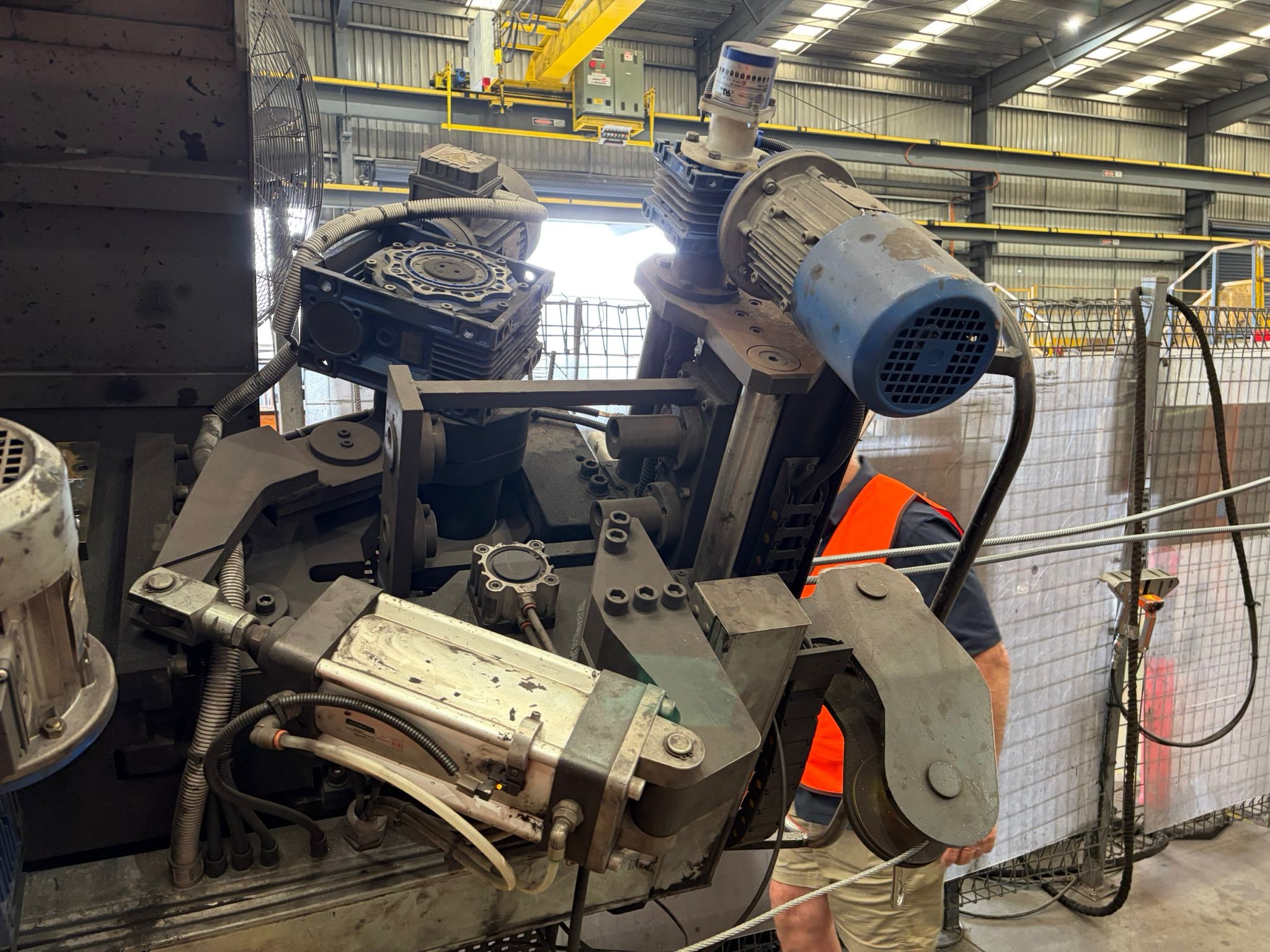

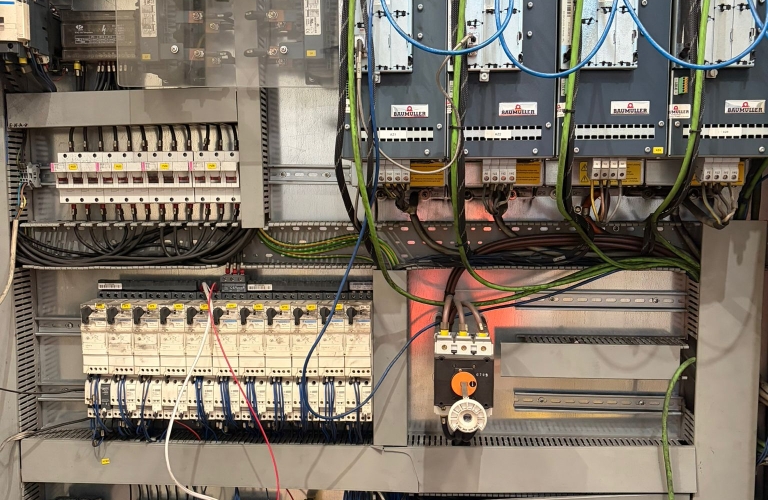

Bi-directional automatic stirrup bender from coil, allows to produce stirrups and cut-to-size bars using wires up to Ø 16 mm (#5). Driven by digital electric servomotors. \- Max. pulling speed: 140 m/min (460 ft/min) - HS Version: 200 m/min (660 ft/min) - Anti-Twist device (Optional) \- 4 pulling drive wheels \- Cutting with Brushless motors with adjustable wire guide, reversible mobile and fixed cutting blades - Pneumatic stirrup collector flap - Web Teleassistance 3D version for the production of tri-dimensional pieces.

Technical Specifications

3D Option (H):	Yes
Brand:	SCHNELL
Double Strand Wire Size:	2 x 13
Single Wire Size:	16

More specifications

Machine info:
Used SCHNELL Coil 16. Fully refurbished.

Processed wire type
Single strand

Double strand

Pulling speed
HS version
Bending speed
Average power consumption

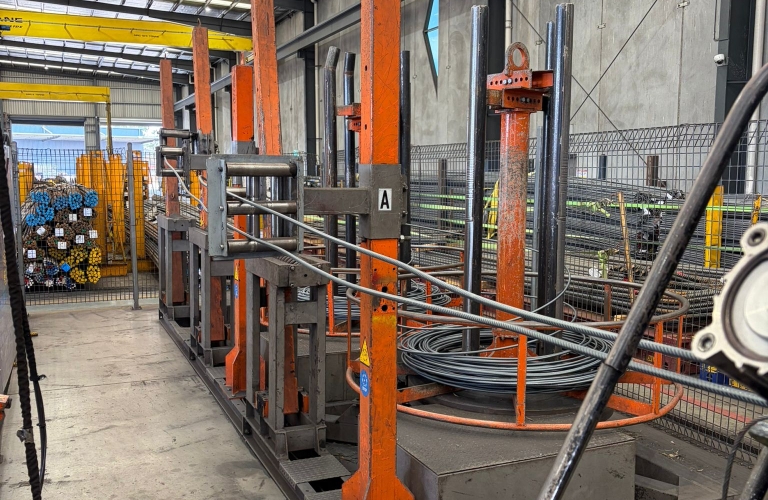

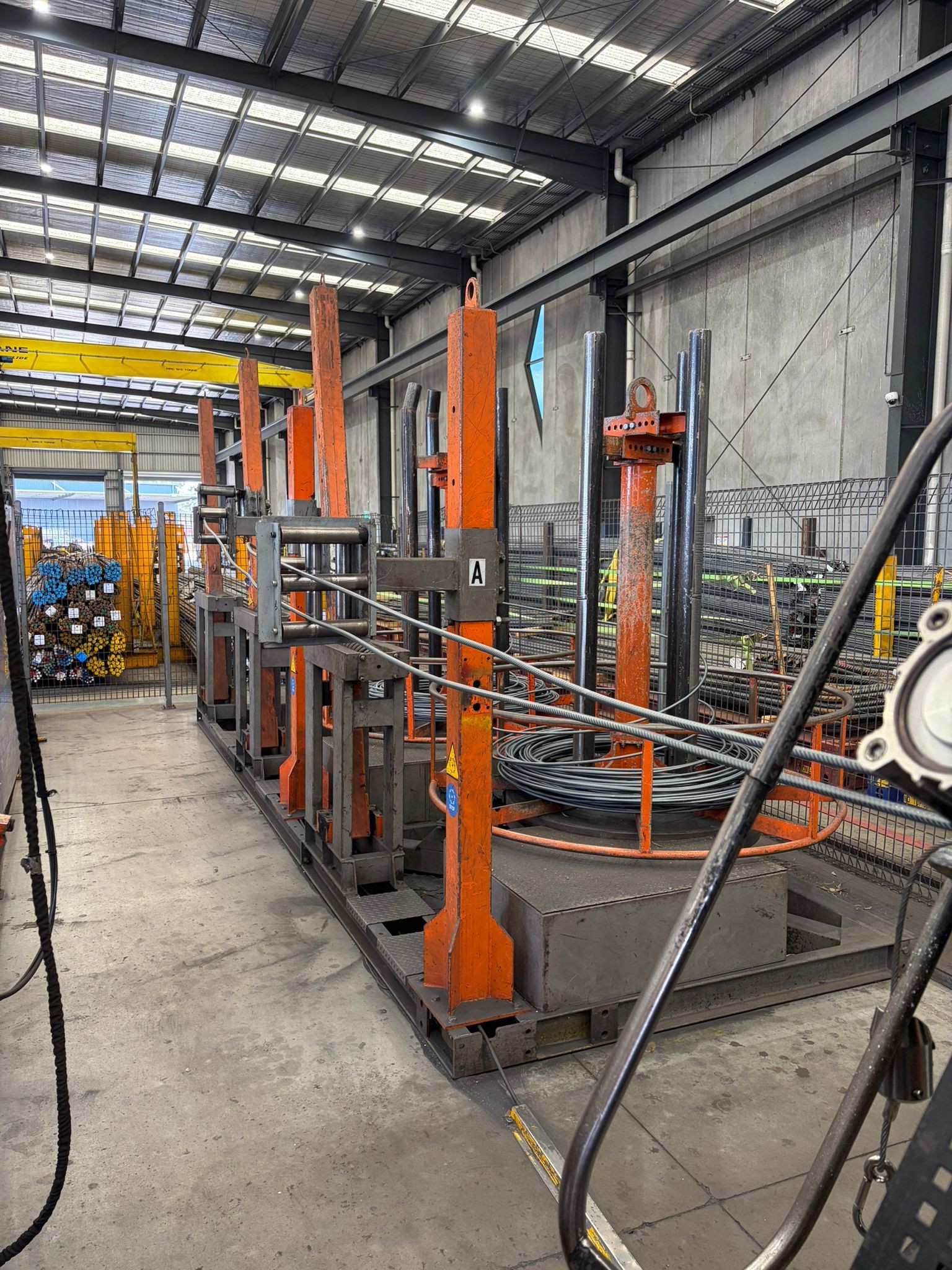

Coil
1 Ø 6÷16 mm (#5)

2 Ø 6÷13 mm (#4)

140 m/min (460 ft/min)
200 m/min (660 ft/min)
1668°/sec
3 kWh

Production year:
2007

View refurbished version

Related by Single Wire Size

MEP System S

MEP System S

MEP System S from 1994, 4 pay offs, refurbished

EVG PBE 2 - 16 Polybend

EVG PBE 2 - 16 Polybend

EVG Polybend stirrup machine PBE 2-16 comes with 2 Pay offs - build in 2000Comes with a complete new...

RaXe 16/6

RaXe 16/6

RaXe 16/6 from 2003, very good working condition.

SCHNELL RETA 16 Super

SCHNELL RETA 16 Super

Used Schnell Reta 16-09 Super V.1, from 2017, 2 payoffs, 9 m bench. Working condition.

Schnell Prima 16 Plus

Schnell Prima 16 Plus

Used Schnell Prima 16, 2013, 2 payoffs, cleaned, 100% functional. 10300 working hours.

EVG Polybend PBC 2-16

EVG Polybend PBC 2-16

Used EVG Polybend PBC 2-16, from 2007, 2 payoffs, 12 m bench, both sides bending, New PC from 2022. ...

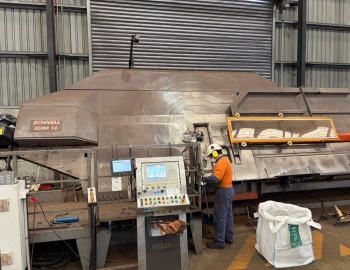

SCHNELL EURA 16
