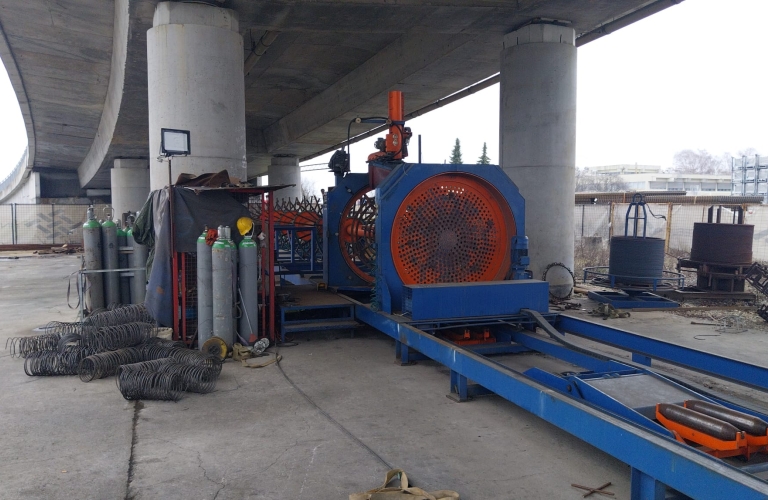

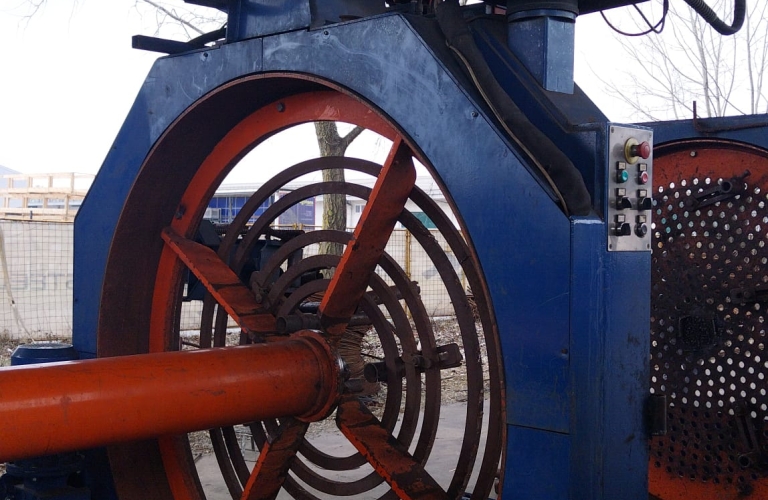

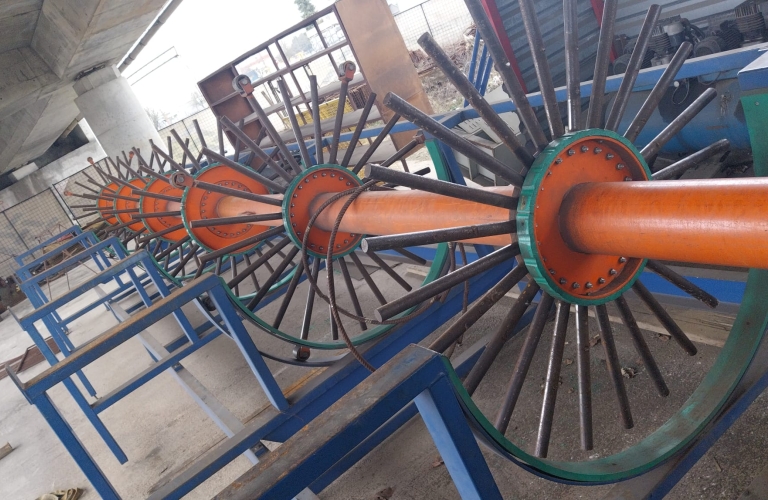

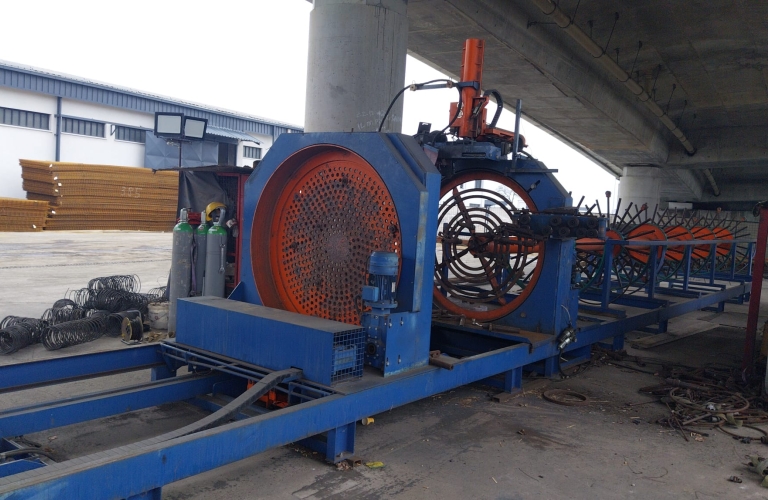

PEDAX Pilemaster 200/1500 DC 2026042

Description

Pilecage machine for reinforcement piles of both small and big dimensions for foundations, piling, viaducts etc. Our PileMaster releases cylindrical cage according to your needs. The machine required by the clients is supplied with welding robot. The Pilemaster produces cylindrical and squared piles of different dimension and length, with welded spiral and programmable pitch. The machine is supplied with heavy-duty supports that give the machine stability and power; a fixed disc and a movable one with holes on request by the client, a controlled system for rotating disc and recipes. The welding robot can be supplied on request.

Technical Specifications

Brand:	PEDAX
Machine Type:	Pilecage machine
Pile Cage Ø:	1500
Single Wire Size:	40

More specifications

Machine info:
Pedax Pilemaster 1500/200 14m model. Fully refurbished and upgraded to ring system in 2019, by Difer.

Technical specifications:

	PM 200/1500 - 12m
Cage diameter:
Max. Min.	1500 mm 200 mm
Spirals:
Wire diameter Pitch	6-16 mm 50-500 mm
Longitudinal bar diameters:	10-32 mm 40 mm on request
Max. cage weight	8 t
Rotational speed, incl. welding: No welding: Time per spot weld:	1-6,5 r.p.m. 1-8,2 r.p.m 0,5-2 sec
Dimensions:
Length x width x height of the system for 12 m cages	27,7x5,7x3,3 m
Total weigth of the overall system	14 t
Connected load for Pilemaster	11 kW
Connected load for Pilemaster with welding robot and welding installation	11 kW
Average electricity consumption Pilemaster	5 kW
Average electricity consumption for the MIGATRONIC welder	11 kW
Control with airconditioning (option)	PLC Frequency converter

Production year:
2005

View refurbished version
