PEDAX Cadormatic 300 2025041

 Description
Cadormatic is the most powerful concrete reinforcing steel shearing cutting plant in the world. Powerful because Cadormatic - cutting plants with the extra strong shearing machines RS 300 and are built to offer cutting widths of 300mm. The concept has a modular design and has been developed for high economic efficiency. Cadormatic bar shearing systems thus guarantee unrivalled high performance and efficient working sequences.,Permatic double bending lines decisively streamline the bending of reinforcing steel from bars.
 Technical Specifications

Blade Width (mm):

300

Brand:

PEDAX

Cuts per minute:

15

Machine Type:

Shearline,Double bender

Single Wire Size:

45

  • Machine info:

    Cadormatic Shear Line RS 300 – working condition

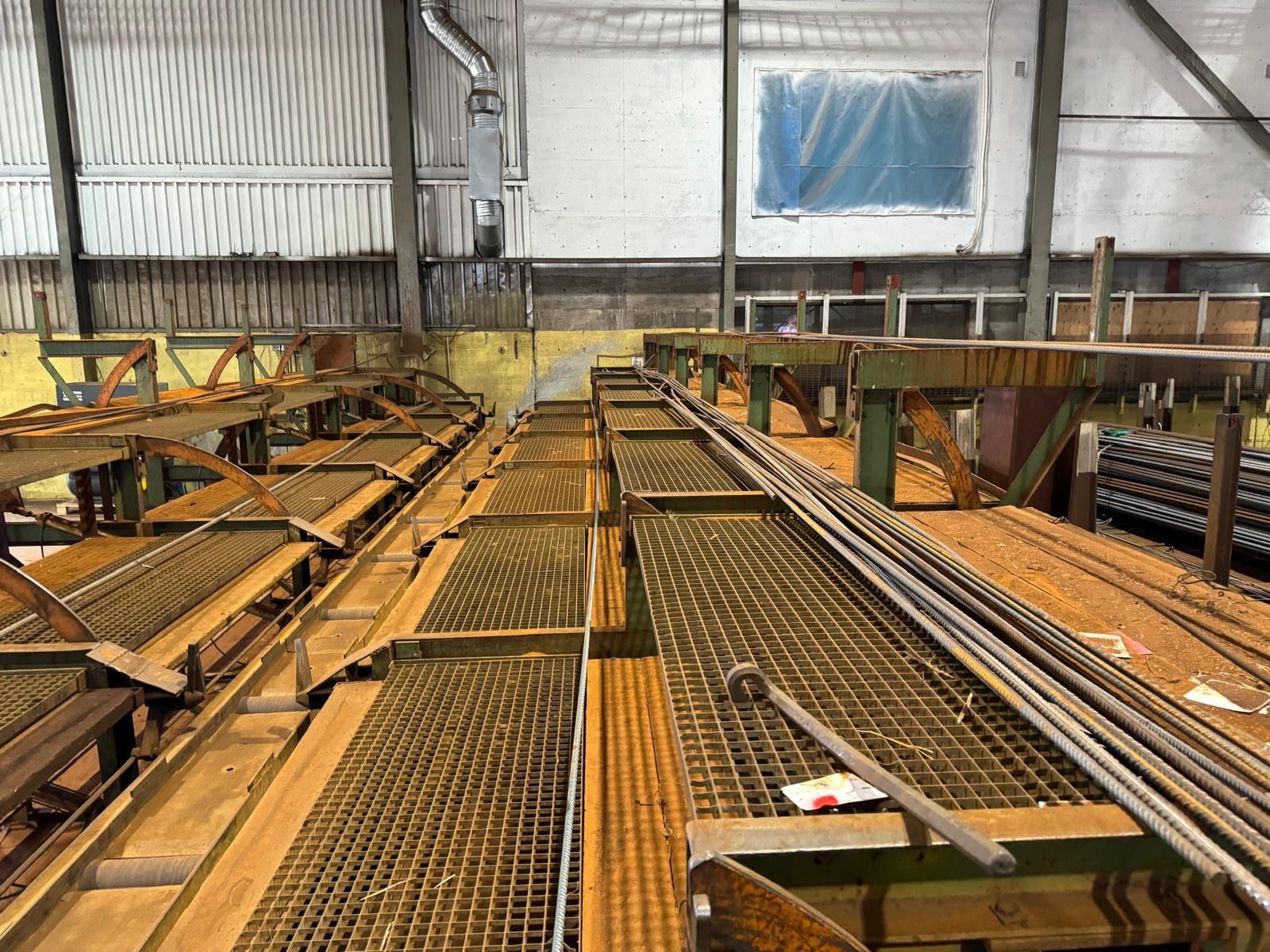

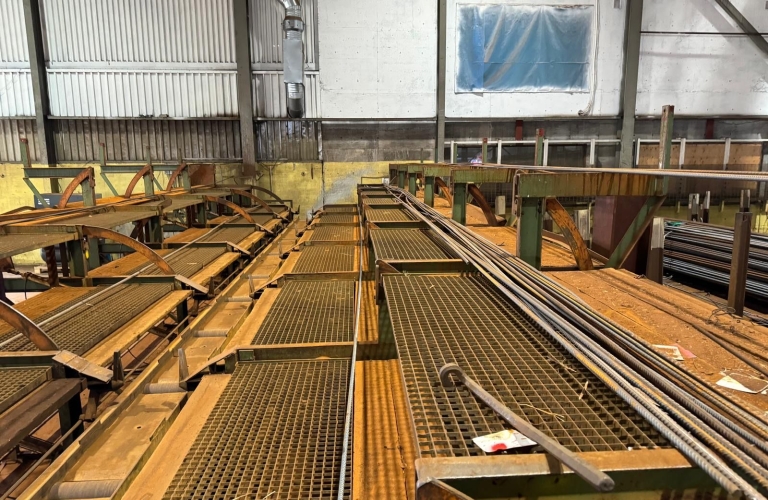

    3 level in feed storage 14m long each side

    In feed conveyer 1100mm x 500mm x 14m

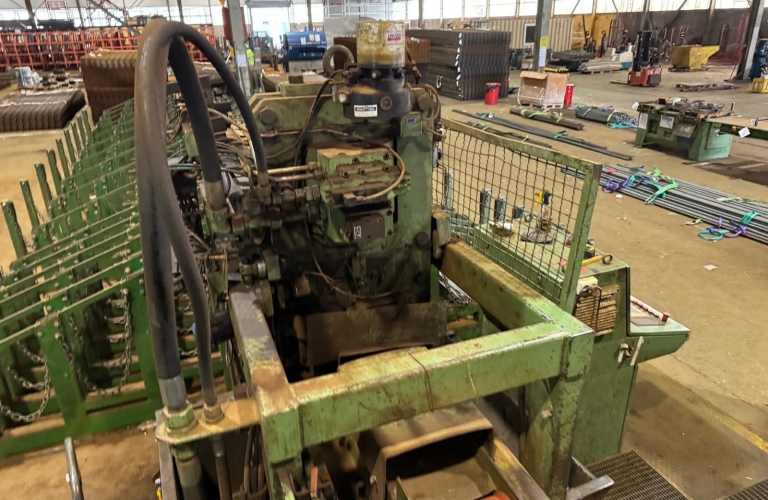

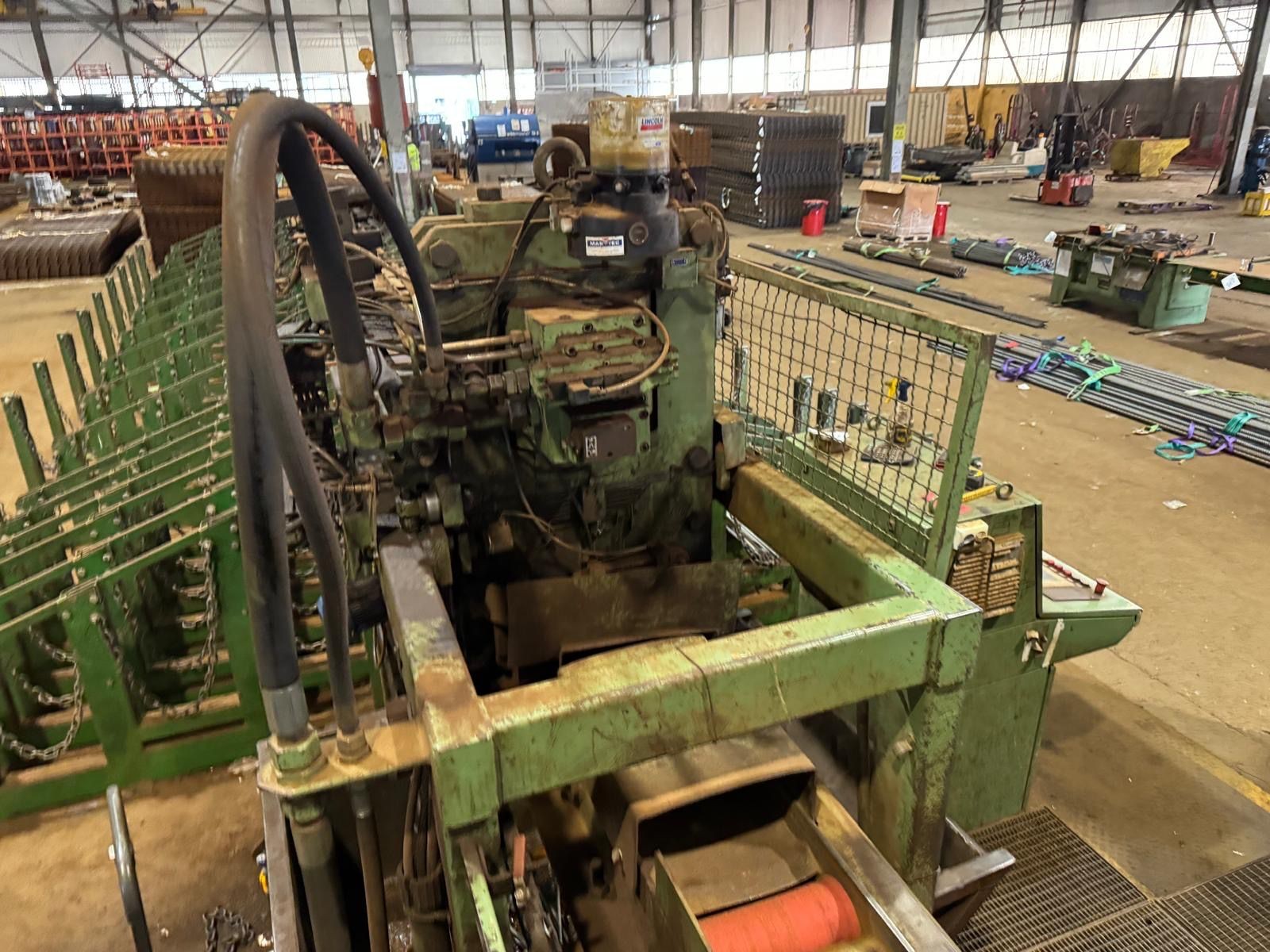

    Simplex RS 300 shear, movable incl. Frame

    Control Box Siemens S7 – installed new in 2018

    Gauge Table 14m long with 2 side kick off

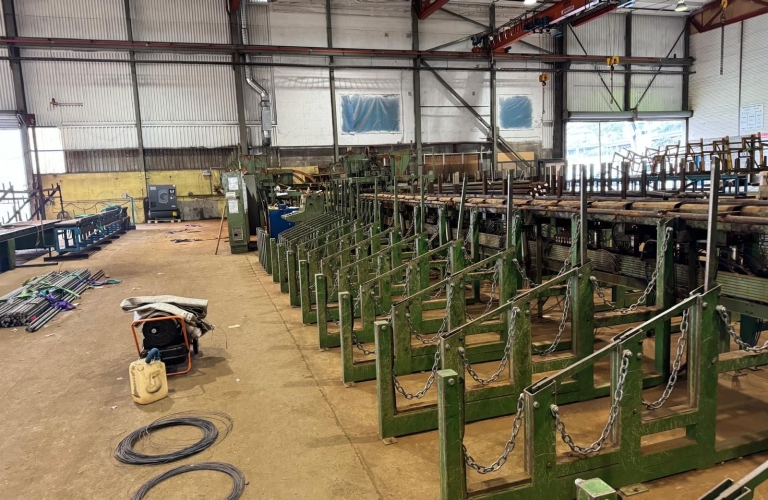

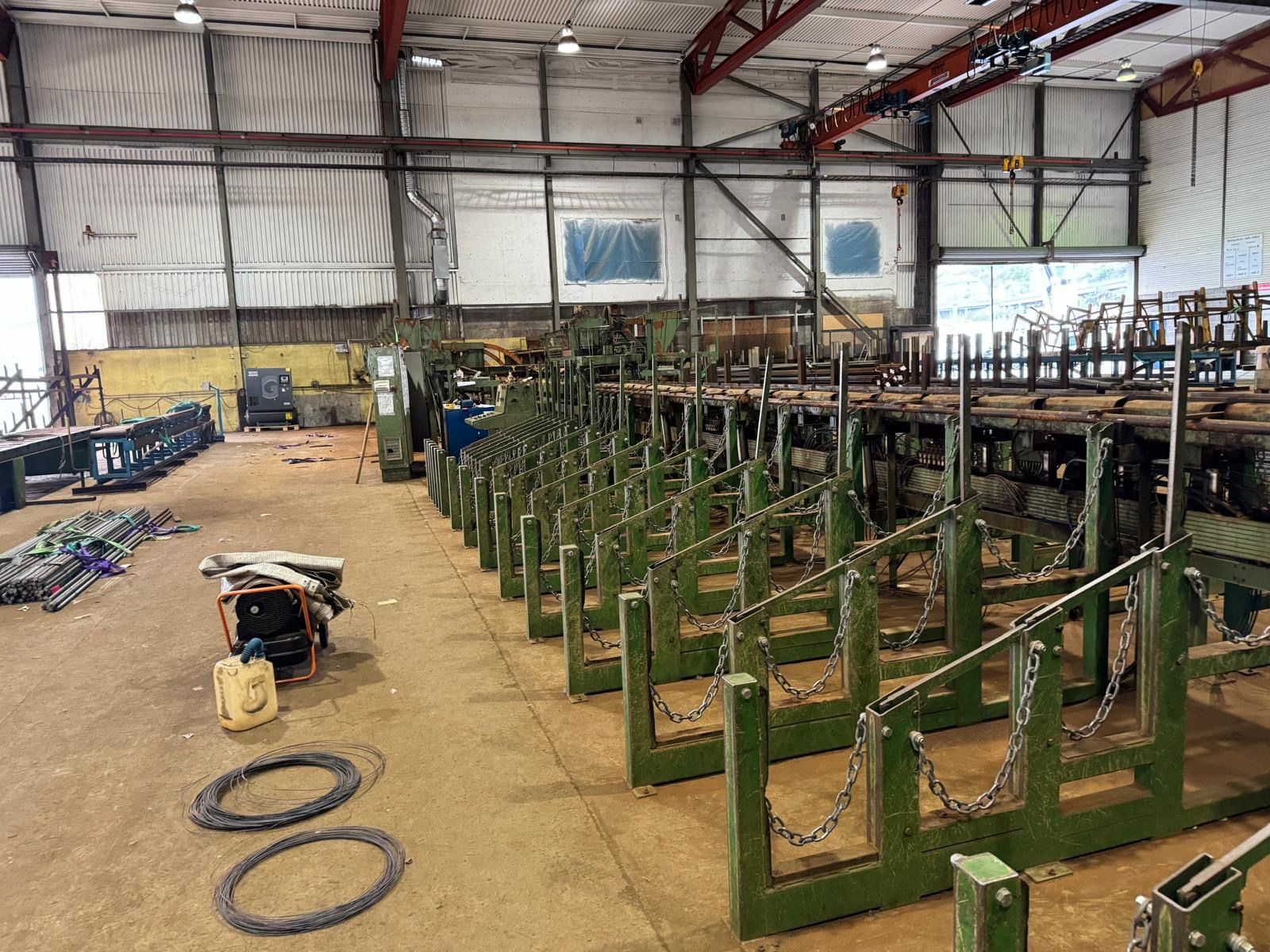

    Collecting pockets 16 units 4 bins

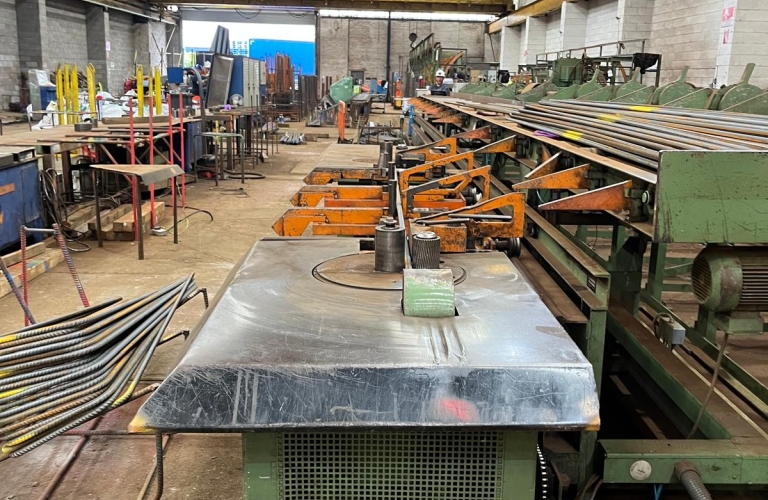

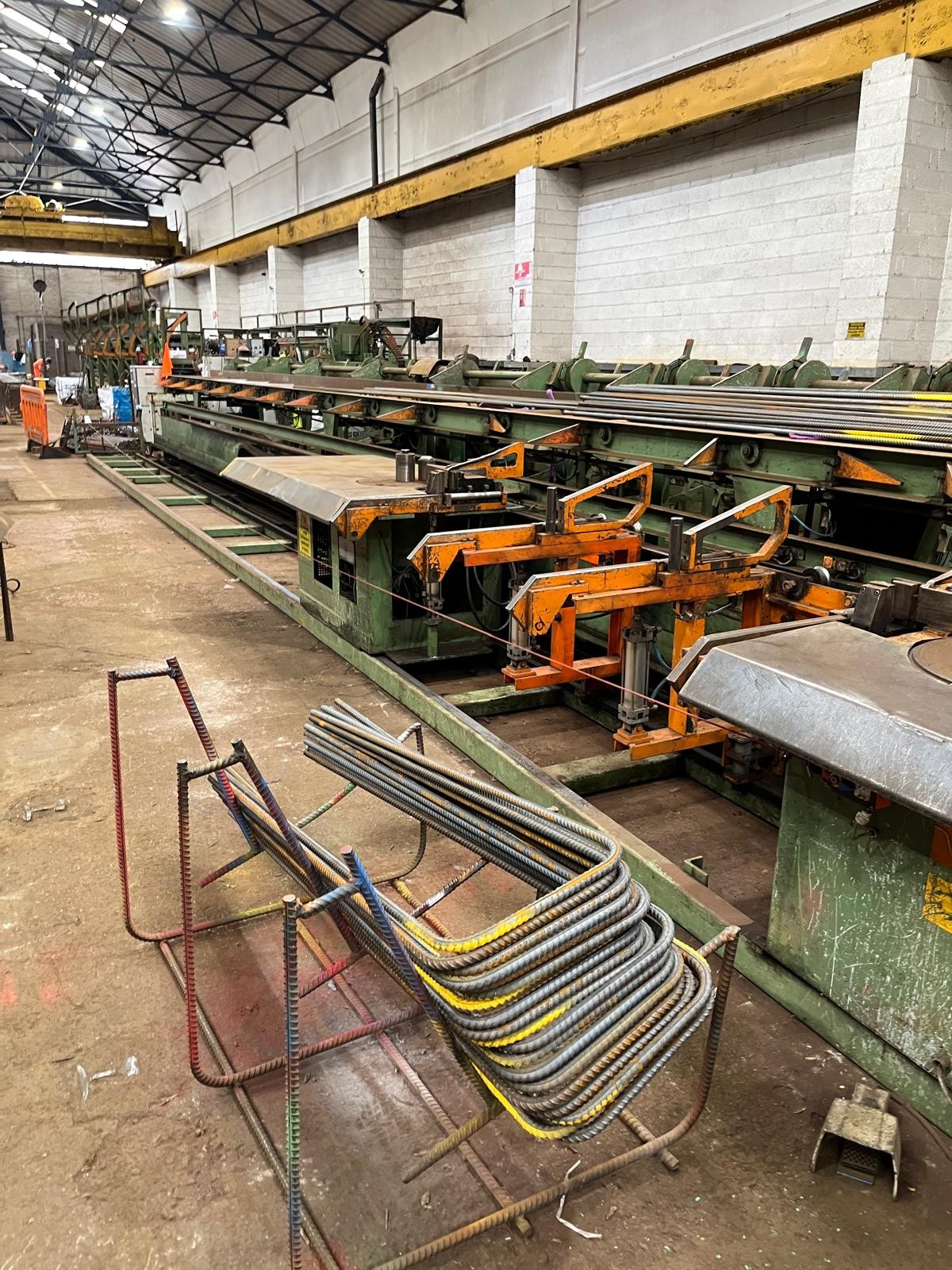

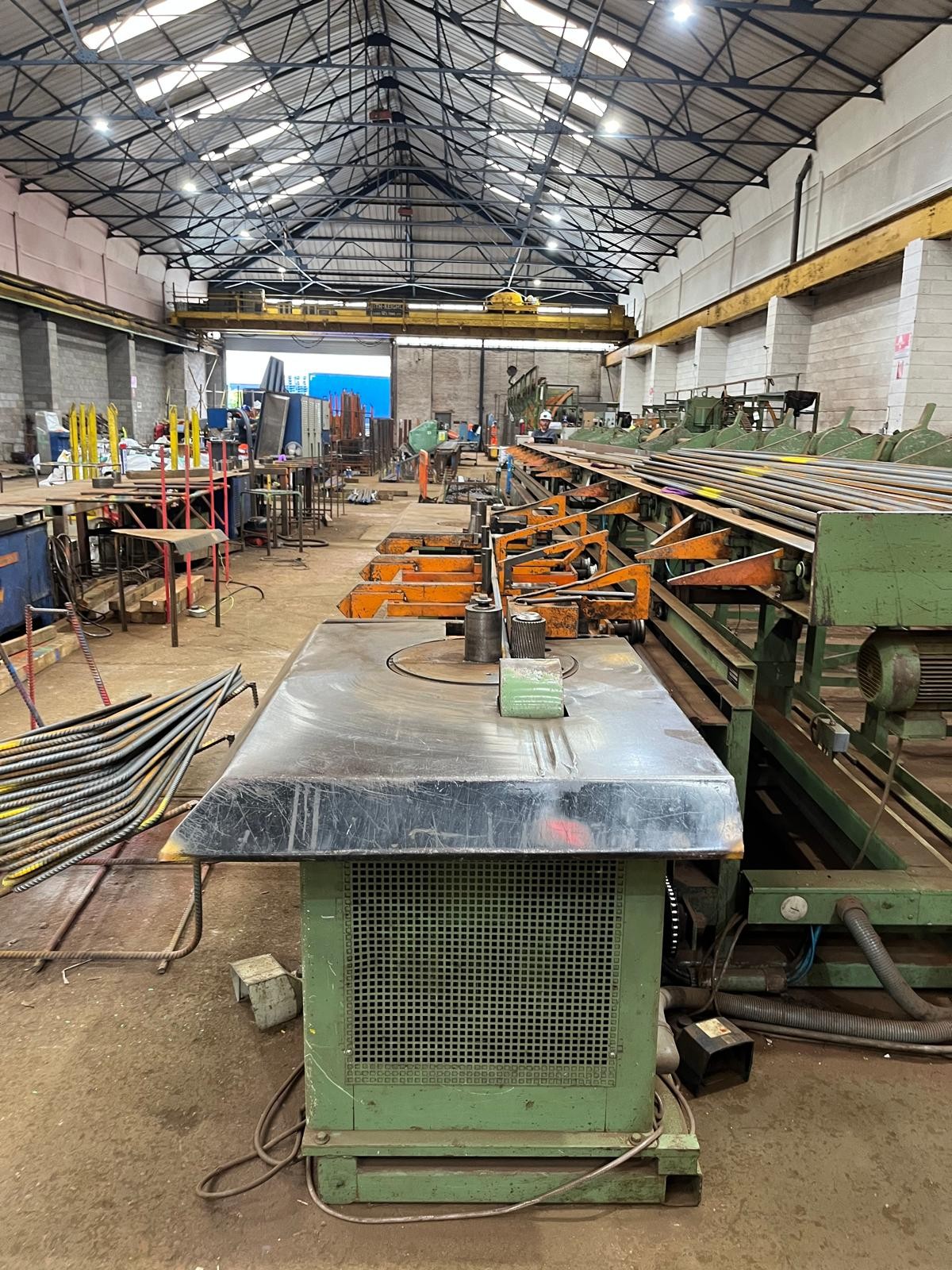

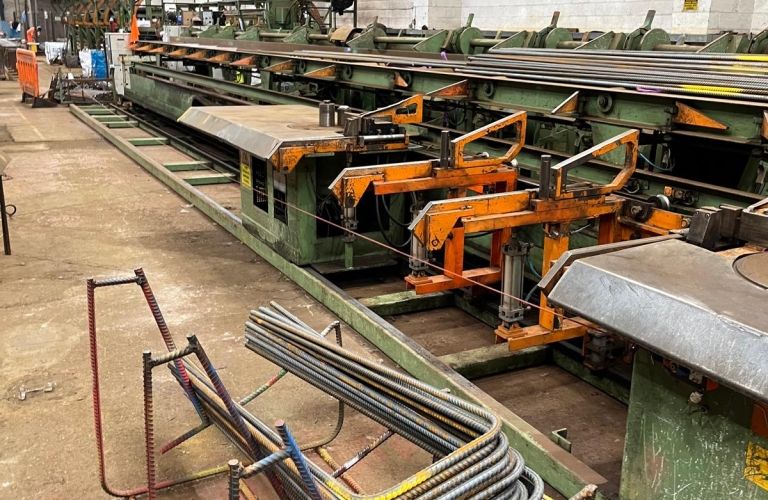

    Permatic 60 double bender - 14m - working condition

    Including a 6 box chain conveyor

    With standard bending tools as required in Belgium

    Control unit rebuild to Siemens S 7


  • Technical Details

    Method of operation: Bars to be cut are stored on a multiple-storage rack, from where they are placed into a counting pocket. The infeed conveyor takes over the bars and transports them through the shear to a position in front of a measuring conveyor stop. The Simplex RS cutting machine already positions the bars to the exact cutting length measurement during transportation. All the cut bars are then automatically conveyed and ejected into the programmed storage box or processing station.

    Cadormatic 300: with Simplex RS 300, hydraulically operated, 300 mm conveyor and cutting width
    Bar diameter, mm 554036322825222018161412108
    No. of bars at 650 N/mm² 16
    		7
    		8
    		9
    		10
    		1213141619222633
    No. of bars at 850 N/mm² 16
    		7
    		8
    		9
    		10
    		1213141619222633
    Number of strokes: 12 to 15 strokes/minute
