Brand: | MEP |
Double Strand Wire Size: | 2 x 10 |
Single Wire Size: | 12 |

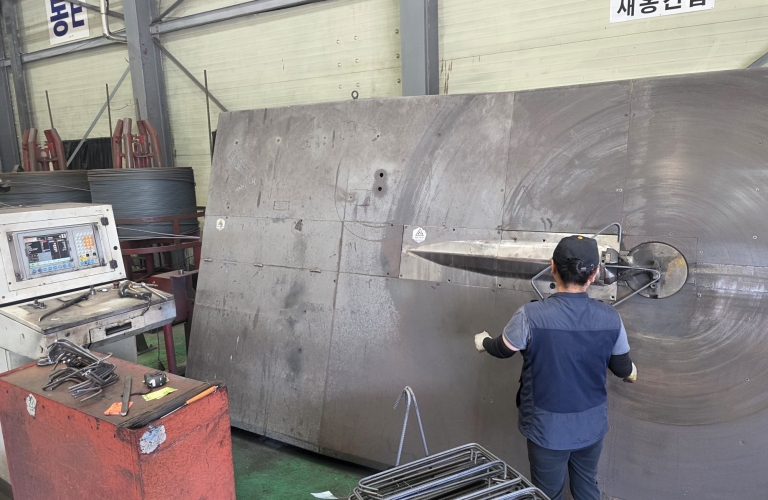

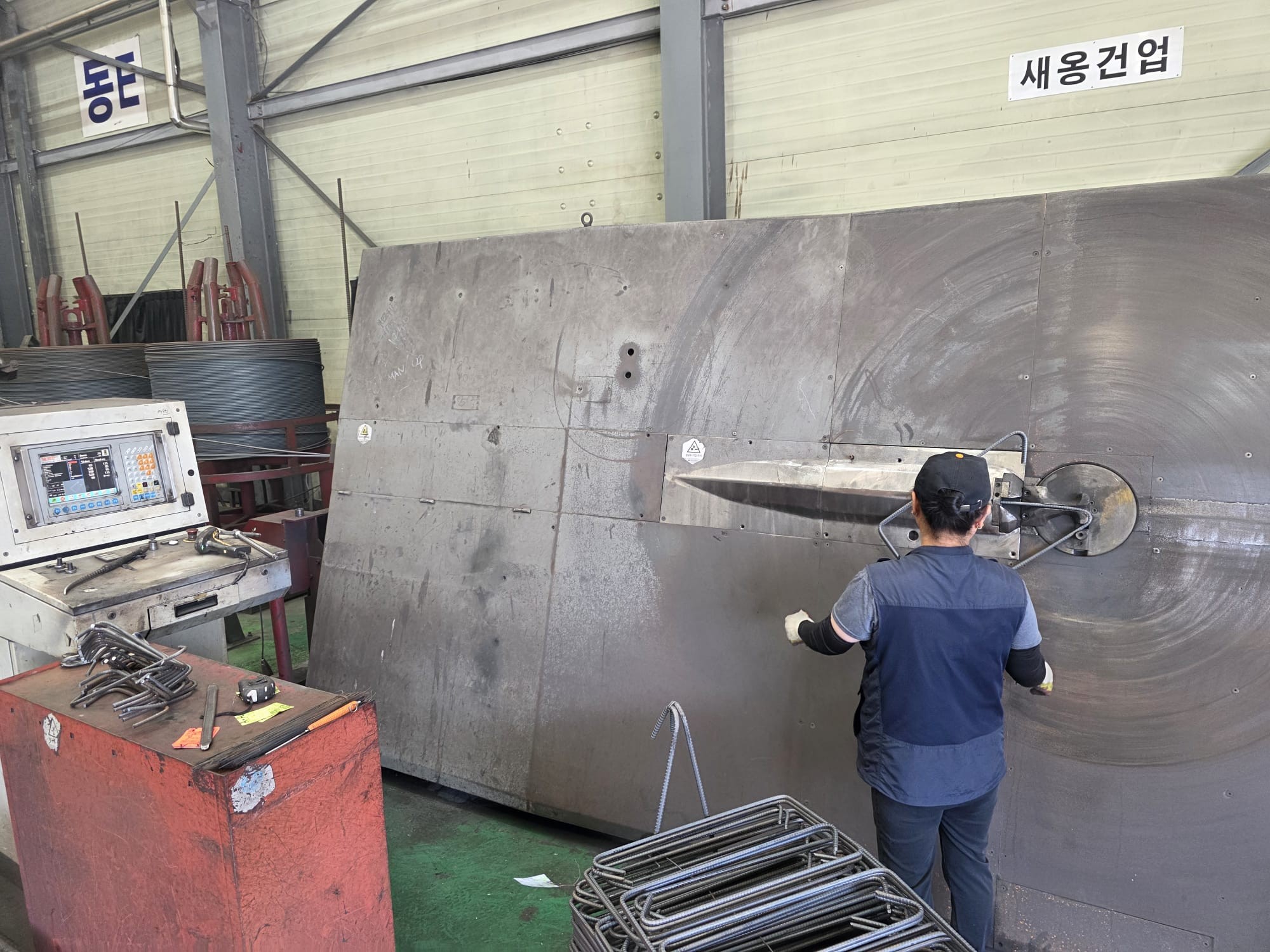

Used MEP Focus 12, 2012, 2 payoffs, working condition.
TECHNICAL FEATURES
Voltage supply 400 V - 50 Hz | |
Others voltages upon request 220÷480 V - 50/60 Hz | |
Installed power 18 kW | |
Average absorbed power 12 kW | |
Hydraulic unit capacity 300 l | |
Infeed speed 0 ÷ 1,5 m/s | |
Bending speed 0 ÷ 1000 °/s | |
Shearing time 4/10 s | |
Centre forming tools diameter 24 - 32 - 40 - 48 mm | |

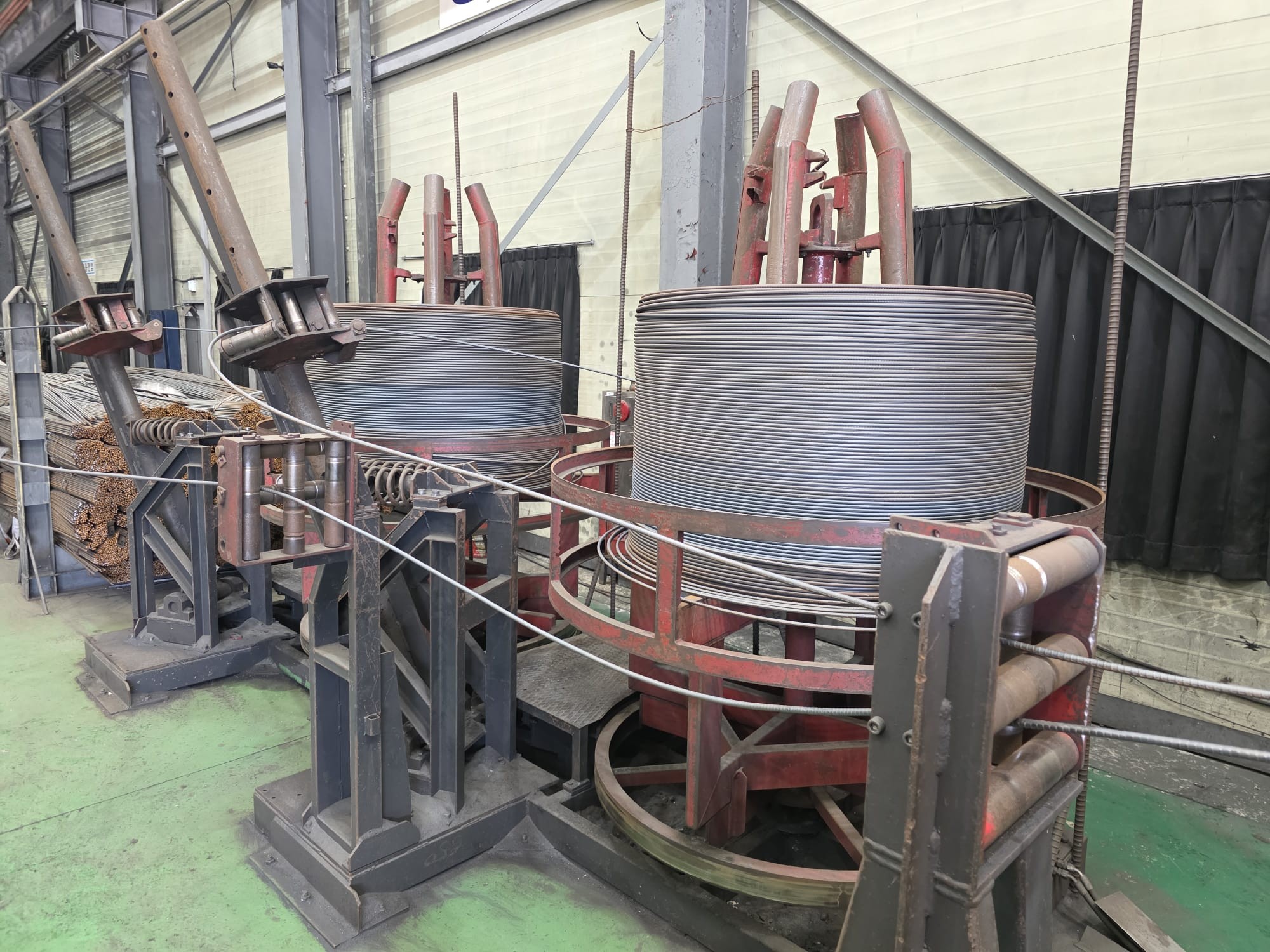

Pay-off station max capacity 3200 kg | |
Overall dimensions | |
Machine 3650 x 1650 x 2300 mm | |
Control cabinet 700 x 1200 x 1640 mm | |
LC pay-off station 2350 x 2050 x 3000 mm | |
Weights | |
Machine 4000 kg | |
Control cabinet 150 kg | |
LC pay-off station 1194 kg | |
PRODUCTION FEATURES
Ribbed and plain rod type allowable maximum strength | |
Max. unit yield point 600 N/mm2 | |
Max. tensile strength 700 N/mm2 | |
Diameter range | |
Single wire operation Ø4 ÷ 12 mm | |
Double wires operation Ø4 ÷ 10 mm | |
Operation for shape | |
Sides 1 ÷ 28 | |
Angles 1 ÷ 28 | |
Max. vertical side length 1300 mm | |
Min. first side length 35 mm (Ø6) | |
Min. last side length 10 mm (Ø6) | |
Max. angle in clockwise bend 180° | |
Max. angle in anticlockwise bend 180° | |
Tolerances | |
Sides ±1 mm/m | |
Angles ±1° | |
Productivity | |
Quantity of stirrup/hour (development length stirrup 1100 mm with 5 bends) 1450 (single wire) | |
Quantity of stirrup/hour (development length stirrup 1100 mm with 5 bends) 2900 (double wires) | |
Programme capacity | |
Programmable memory codes 200 | |
Programmed codes memory 60 | |
