Brand: | Others |
Machine Type: | MESH |
Single Wire Size: | 6 |
Used MCC001 mesh machine. Good working condition. 1680 hours only.
Description

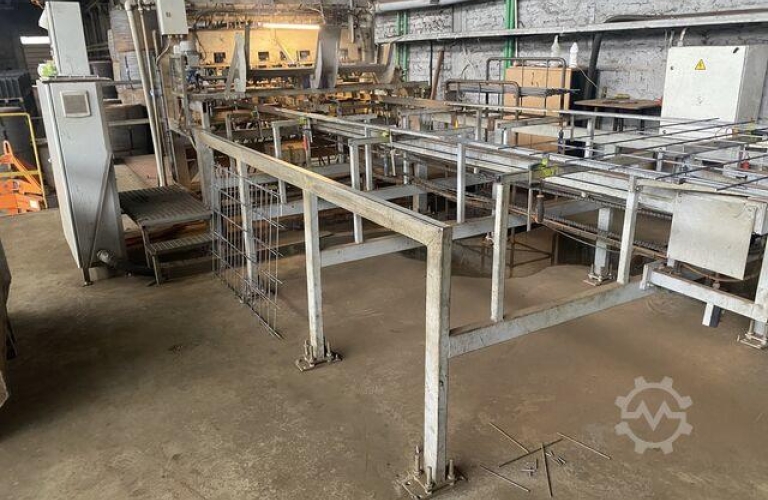

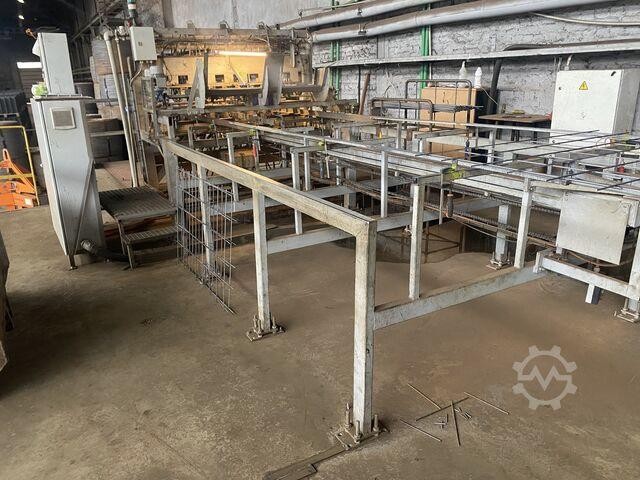

Automatic rebar mesh welding machine MCC001
Application of the machine:

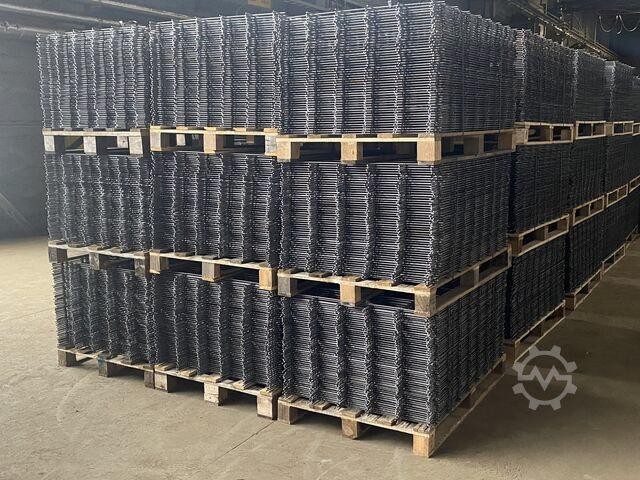

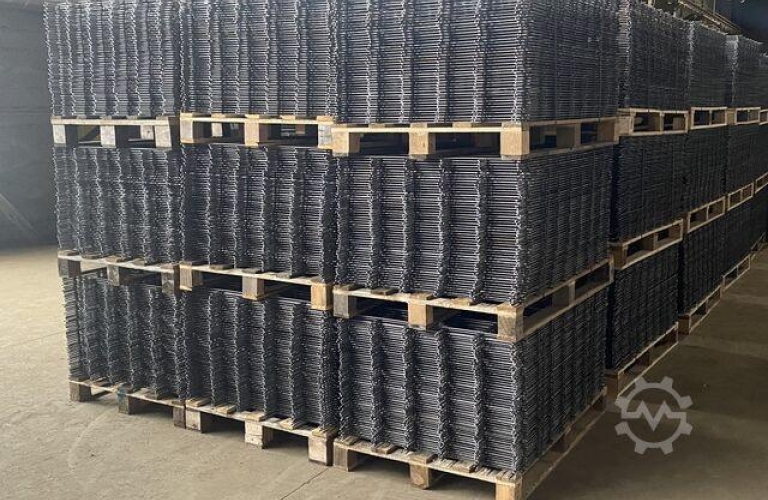

The machine is designed for welding steel reinforcement mesh from previously
shortened reinforcements for rods that comply with the EN 10080 standard.
Technical characteistics:
Diameter of reinforcing bars: 4mm, 5mm, 6mm
Number of longitudinal bars: 2 – 12
Length of longitudinal bars: 200mm – 3000mm
Minimum step between longitudinal bars: 100mm
Pitch of crossbars: 10mm – 999mm
Length of crossbars: 100mm – 1250mm
Screen moving speed: 0.1m/s – 1m/s
Compression force: 60kg – 190kg
Productivity: 1 cycle/minute
Electricity:
Supply voltage: 400V
Voltage frequency: 50Hz
Connection type: TN-C
Power: 100kVA
Higher engine power: 0.8 kW
Power of one welding transformer: 35 kVa
Pneumatics:
Working medium: Compressed air
T2rsqohy
Working pressure: 6 bar
Air consumption: 250 l/min
Cooling:
Cooling type: water cooling
Circulation type: forced circulation
Maximum incoming heat carrier temperature: 35 °C
Heat carrier consumption: 60 l/min
