SCHNELL MESH SPIDER INT 2026043

 Description

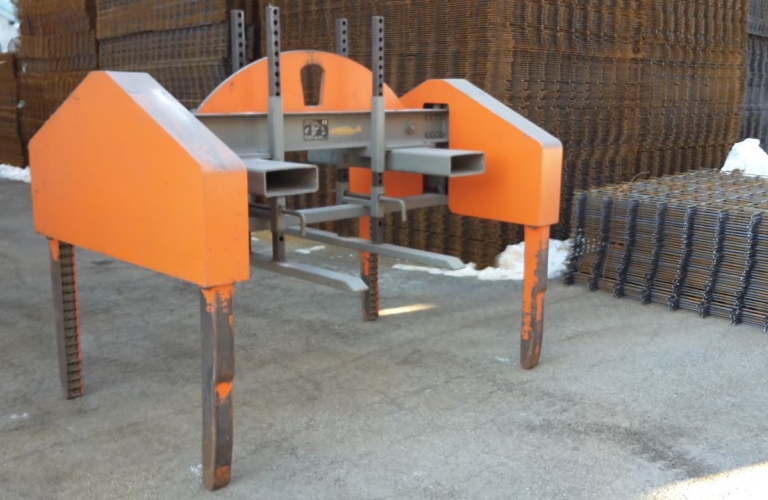

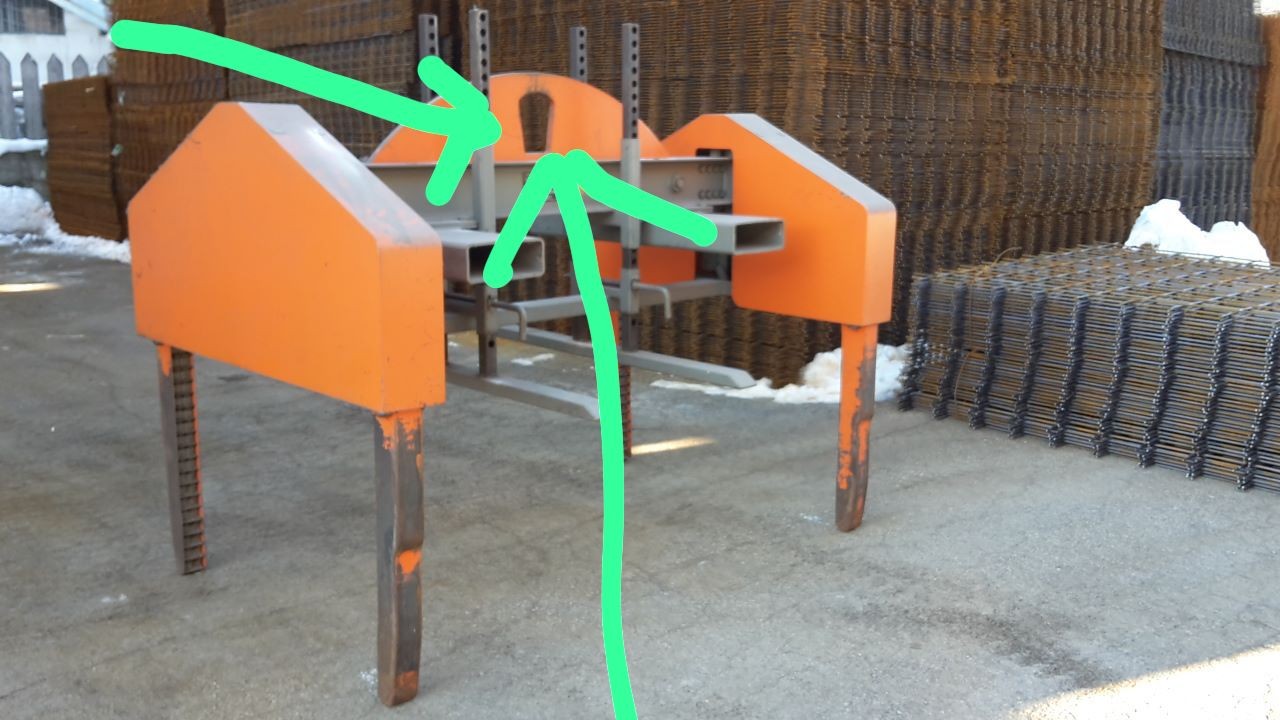

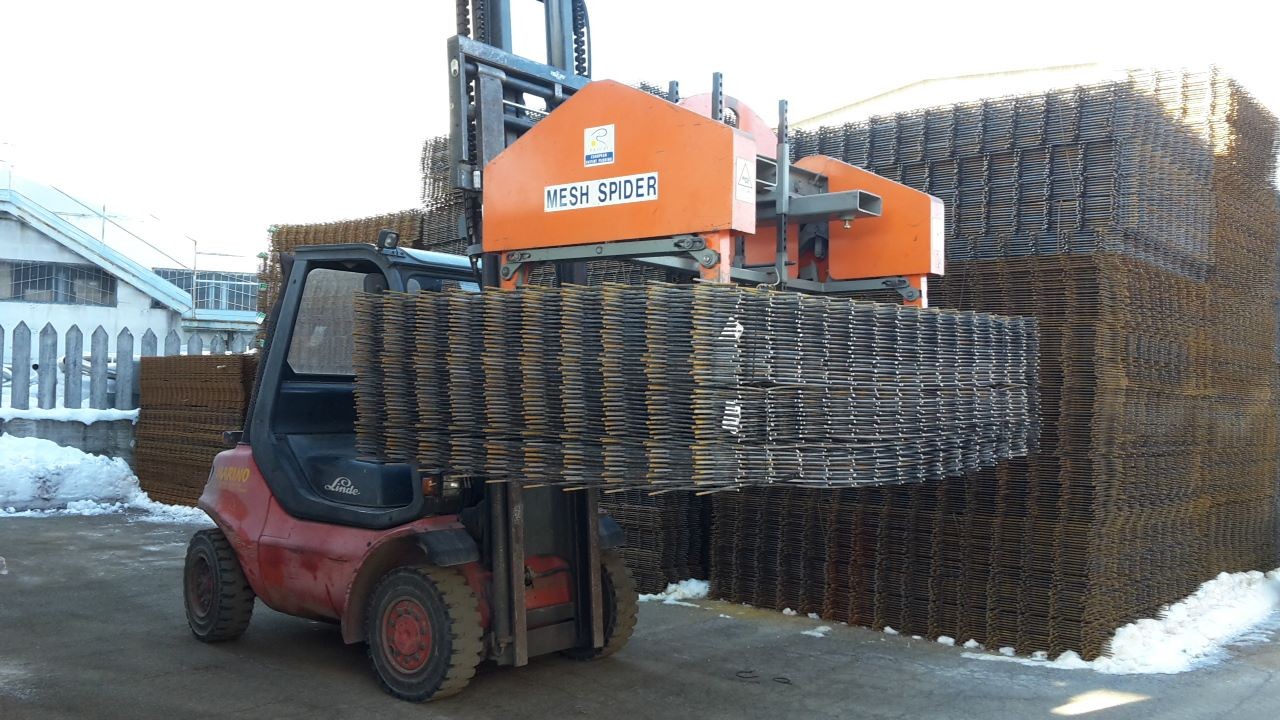

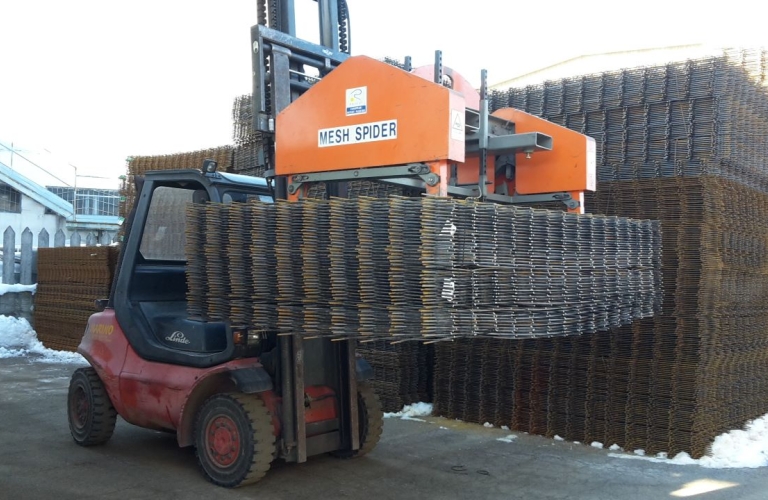

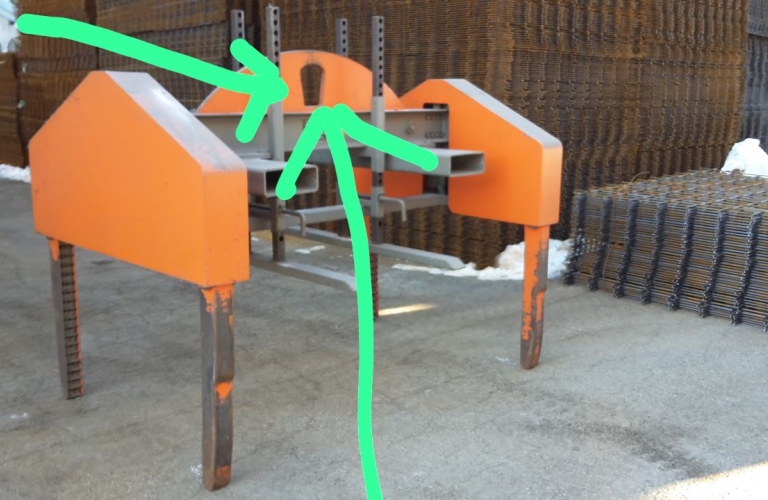

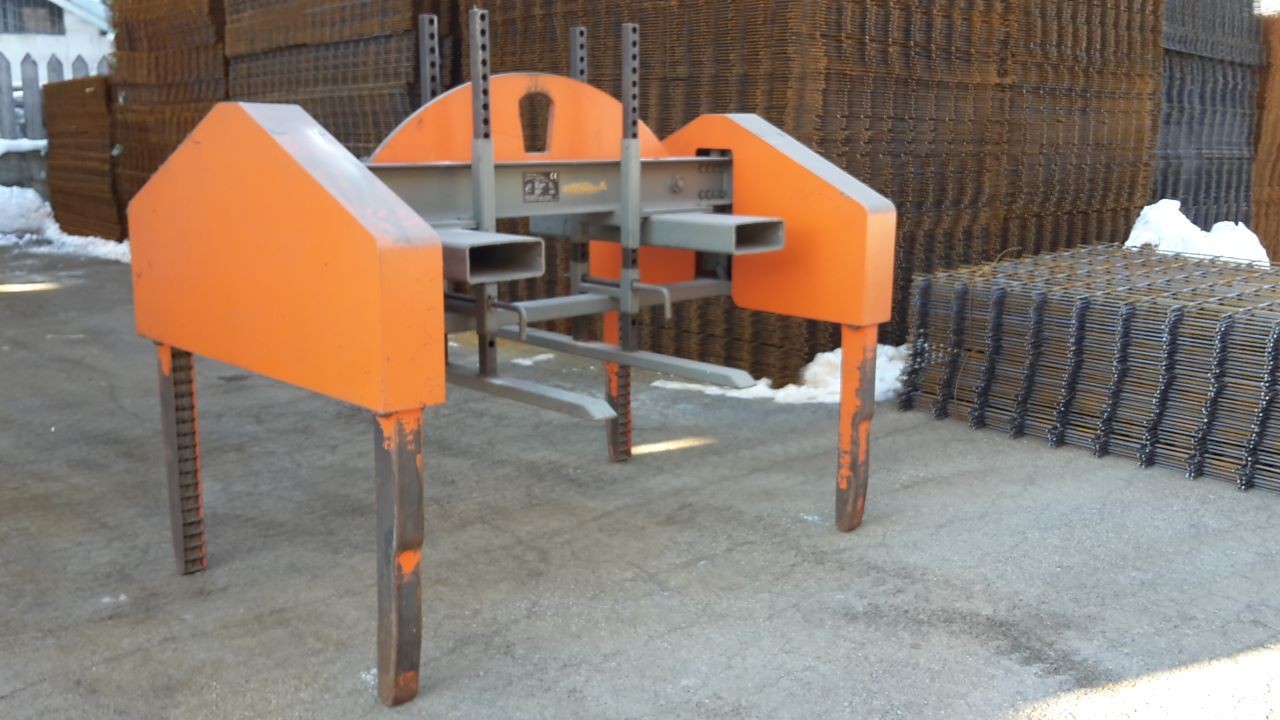

Mesh Spider is the lifting equipment to move electro-welded mesh panels which, thanks to its innovative patented hiding guns, can hook mesh bundles from the inside. Due to its automatic hooking and releasing device Mesh Spider can move one or more mesh bundles in a fast and safe way resulting in room saving as the bundles can be stocked one next to the other. Thanks to its reduced dimensions, it can be used with both a crane or a forklift. ### Available versions: MESH SPIDER 4 m INT: it is able to hook from the inside mesh bundles with 2 picking points.MESH SPIDER 4-6 m INT: it is able to hook from the inside mesh bundles with 3 picking points.
 Technical Specifications

Brand:

SCHNELL

  • Machine info:

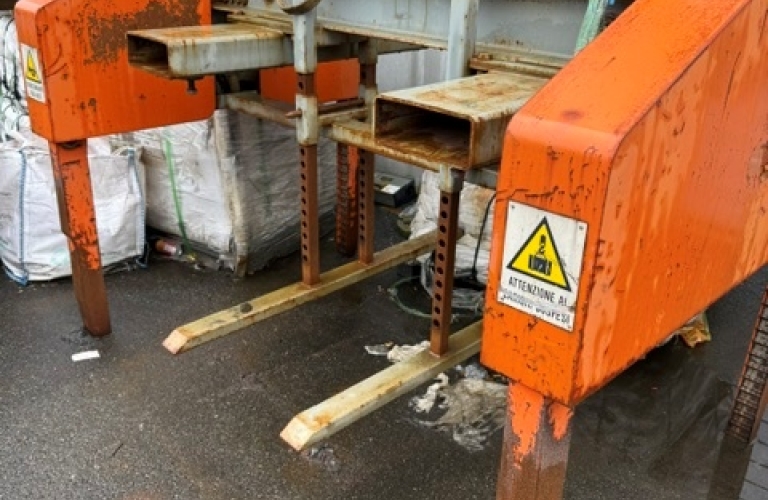

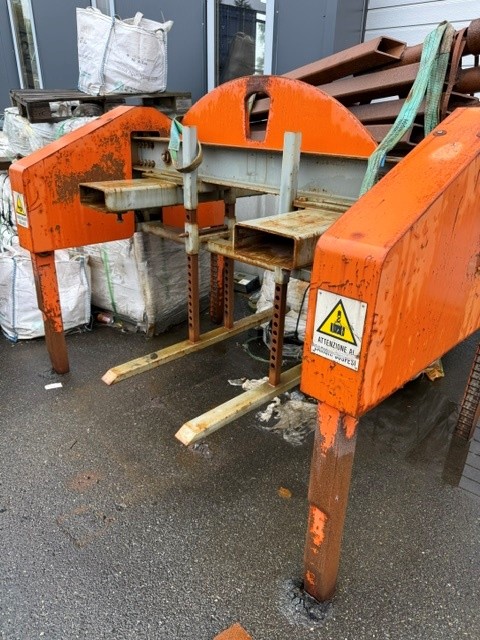

    Used Schnell Mesh Spider EVO 4 m INT, in a very good condition. Suitable for both forklift and overhead crane.

  • Min. Mesh panel

    Max. mesh Panel

    Max height mesh pack

    Max. weight

    Min. pitch of the mesh panel

    Max. weight panel + spider

    2600 x 1300mm

    4000 x 2500mm

    700 mm

    4000 kg

    150 x 150 mm

    4750 kg


    Dimensions: 200 x 135 x 155(h)
