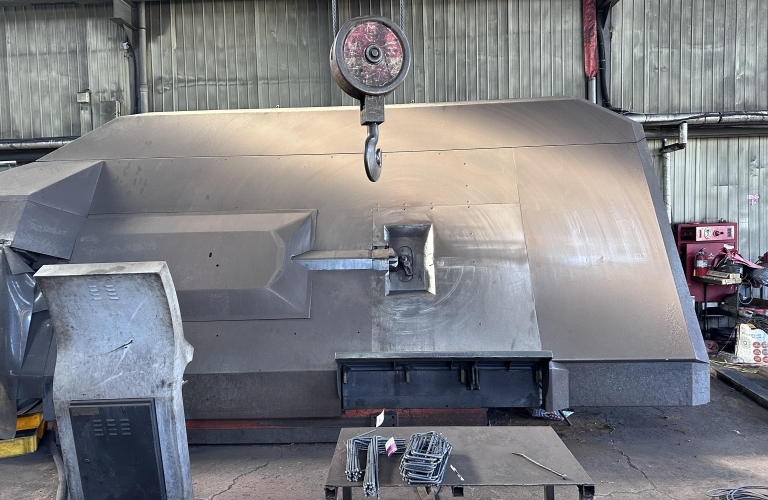

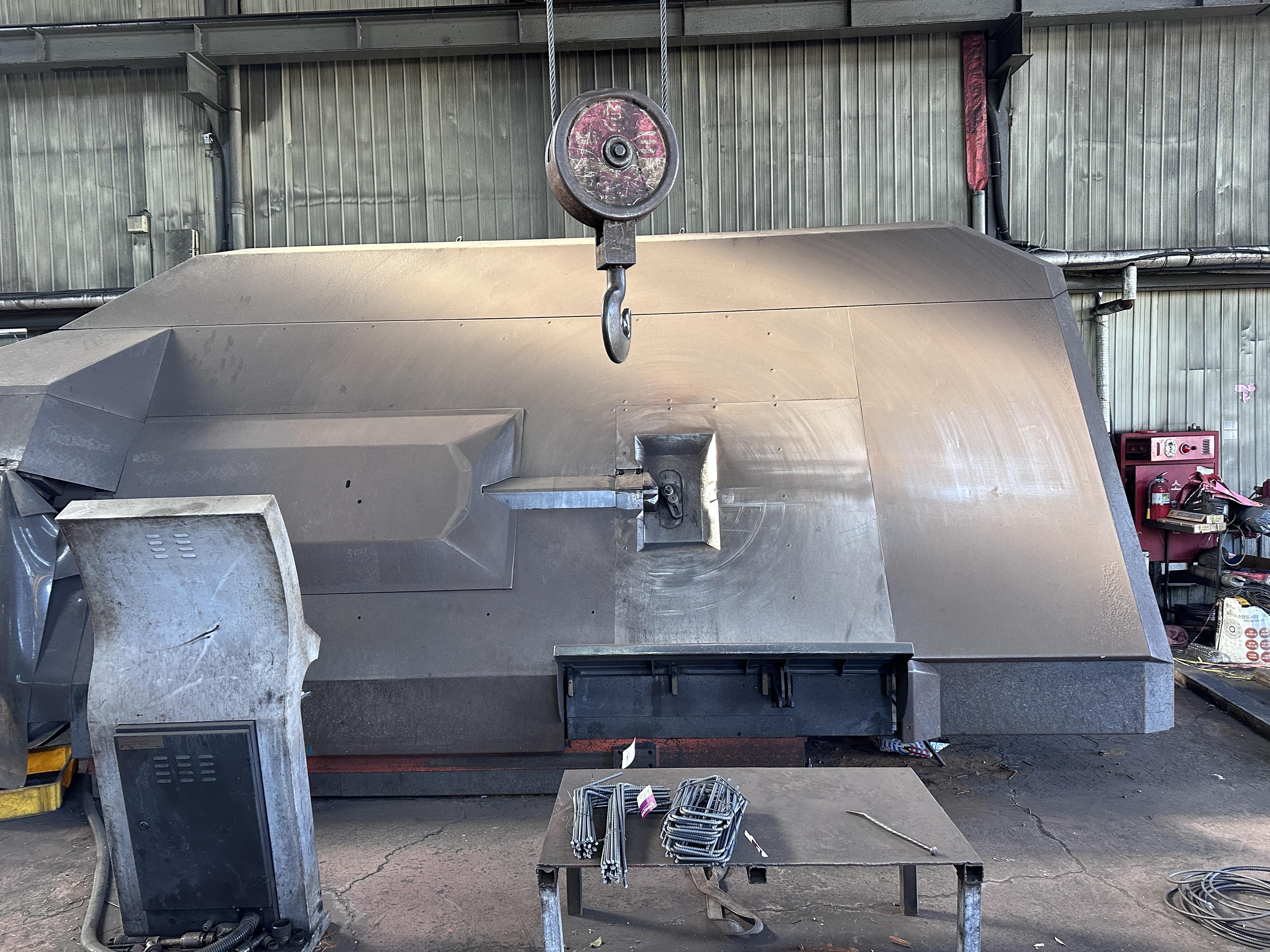

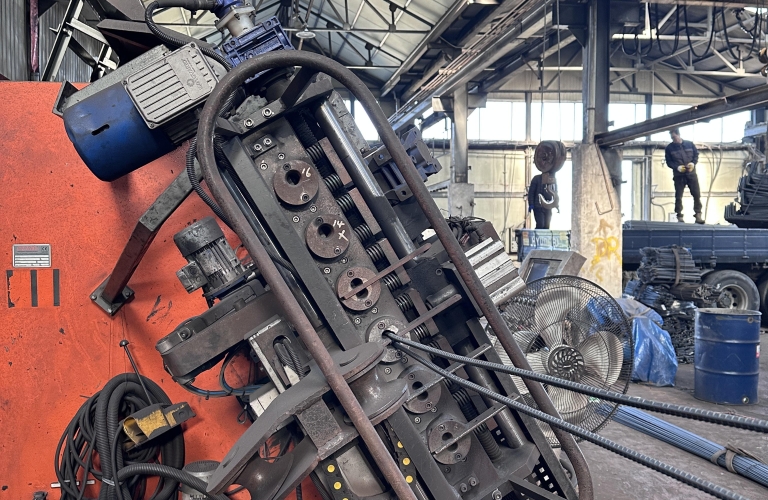

SCHNELL Coil 16 2025071

 Description

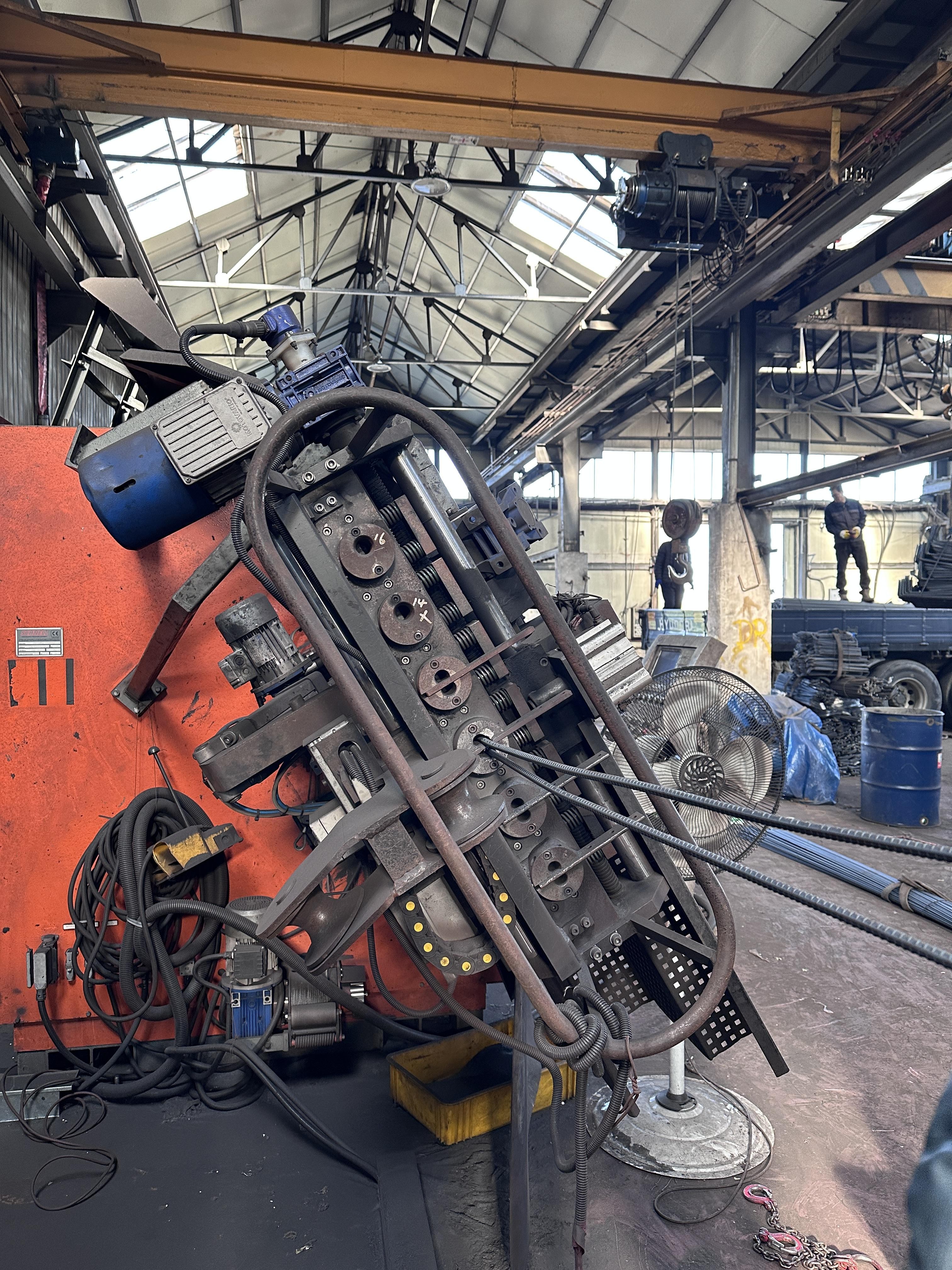

Bi-directional automatic stirrup bender from coil, allows to produce stirrups and cut-to-size bars using wires up to Ø 16 mm (#5). Driven by digital electric servomotors. \- Max. pulling speed: 140 m/min (460 ft/min) - HS Version: 200 m/min (660 ft/min) - Anti-Twist device (Optional) \- 4 pulling drive wheels \- Cutting with Brushless motors with adjustable wire guide, reversible mobile and fixed cutting blades - Pneumatic stirrup collector flap - Web Teleassistance 3D version for the production of tri-dimensional pieces.
 Technical Specifications

3D Option (H):

Yes

Brand:

SCHNELL

Double Strand Wire Size:

2 x 13

Single Wire Size:

16

  • Machine info:

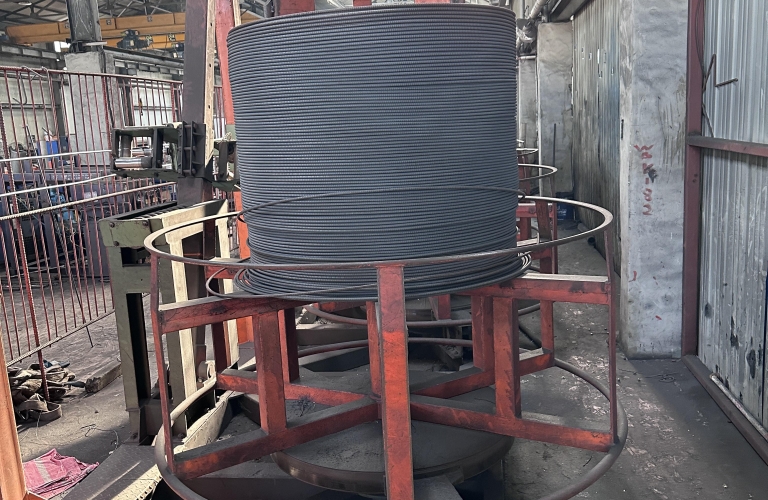

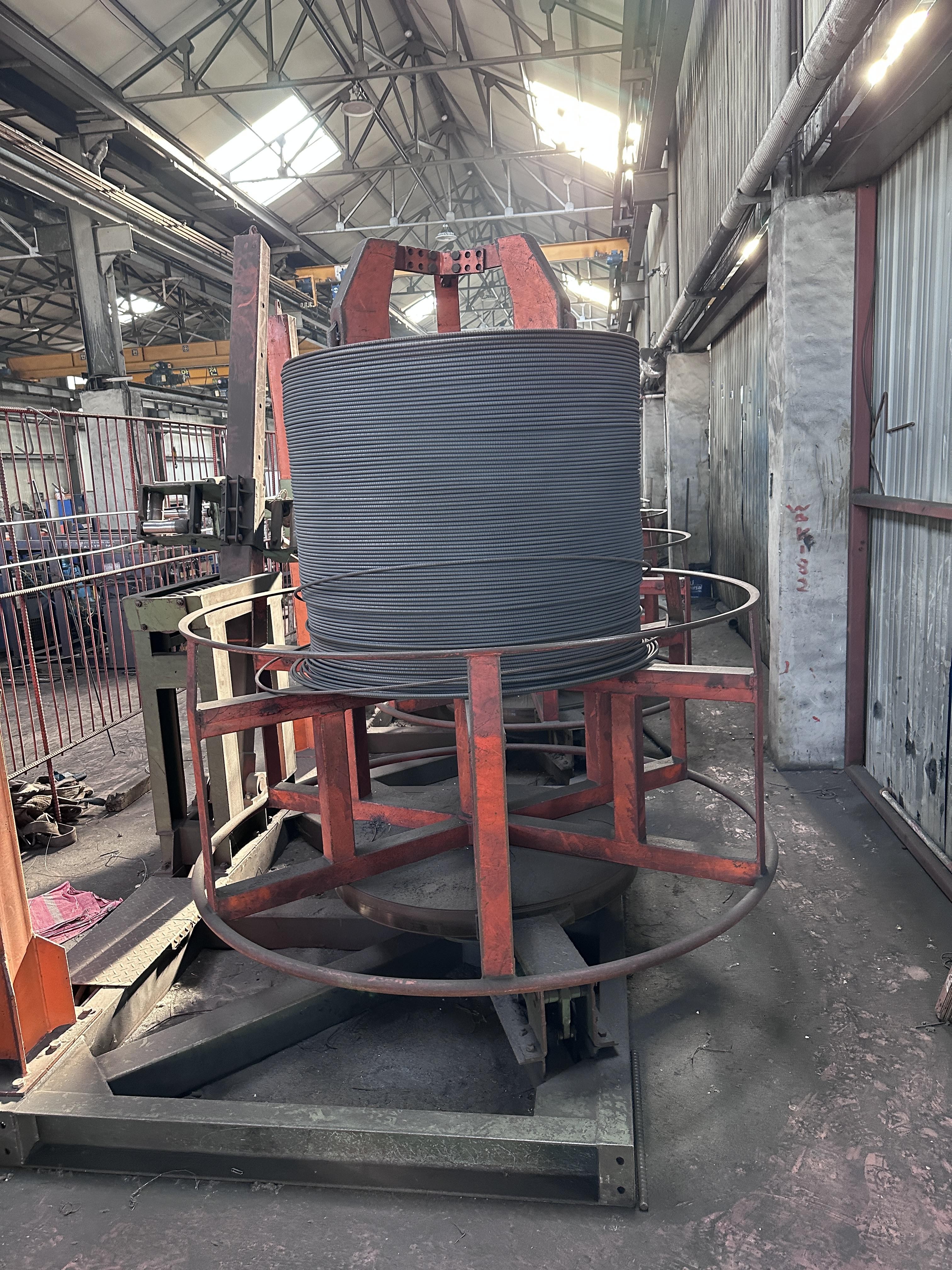

    Used Schnell Coil 16 EVO HS-CF, 2011, 4 payoffs, automatic change of wire. Working condition.

  • Processed wire type
    Single strand

    Double strand

    Pulling speed
    HS version
    Bending speed
    Average power consumption

    Coil
    1 Ø 6÷16 mm (#5)

    2 Ø 6÷13 mm (#4)

    140 m/min (460 ft/min)
    200 m/min (660 ft/min)
    1668°/sec
    3 kWh

  • Production year:
    2011
