Brand: | PEDAX |

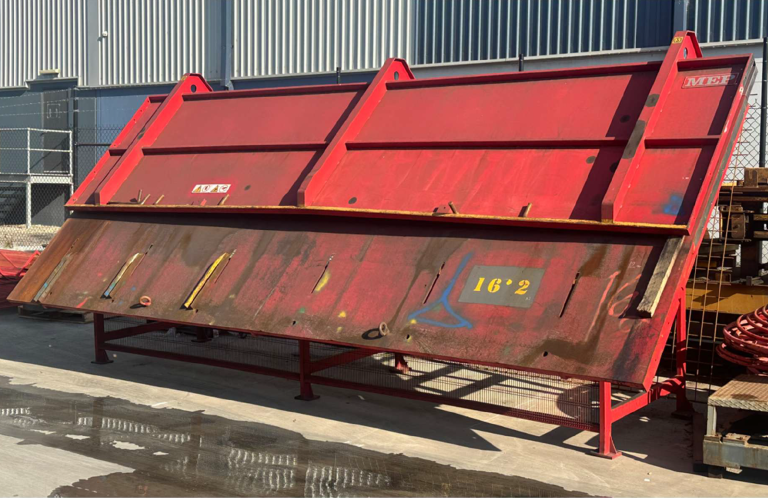

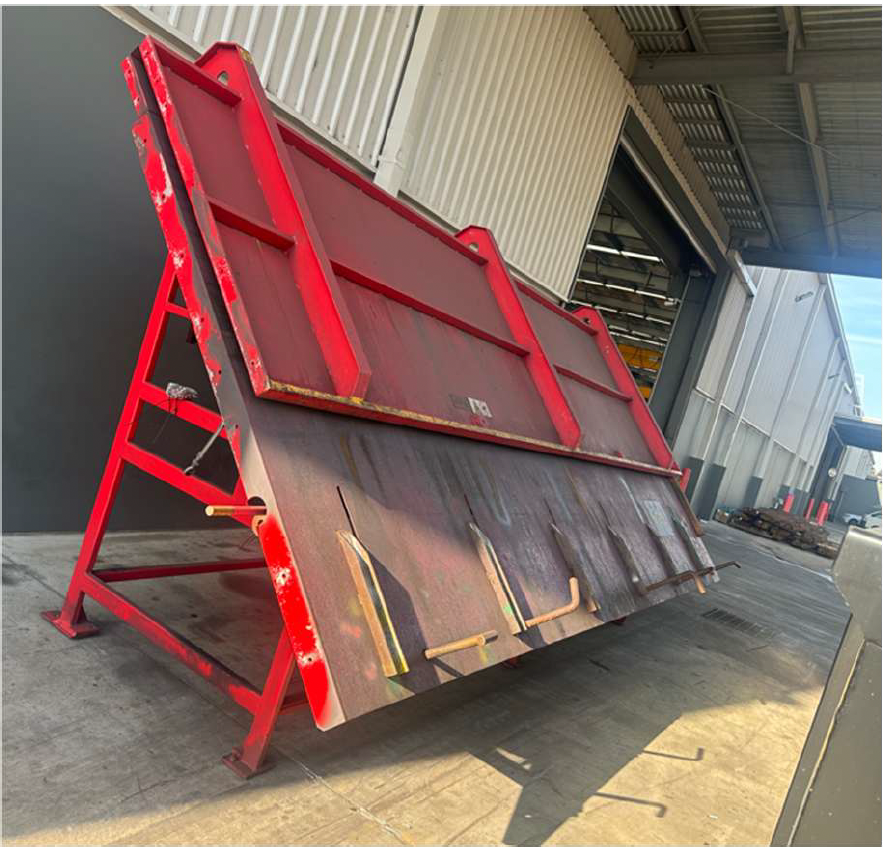

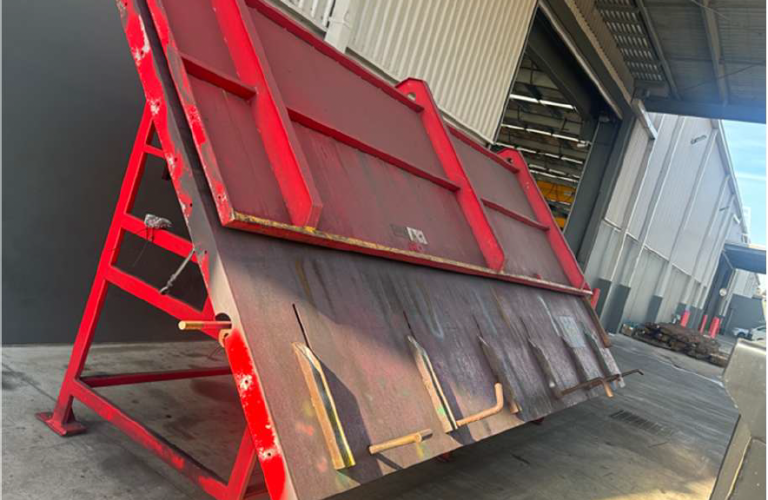

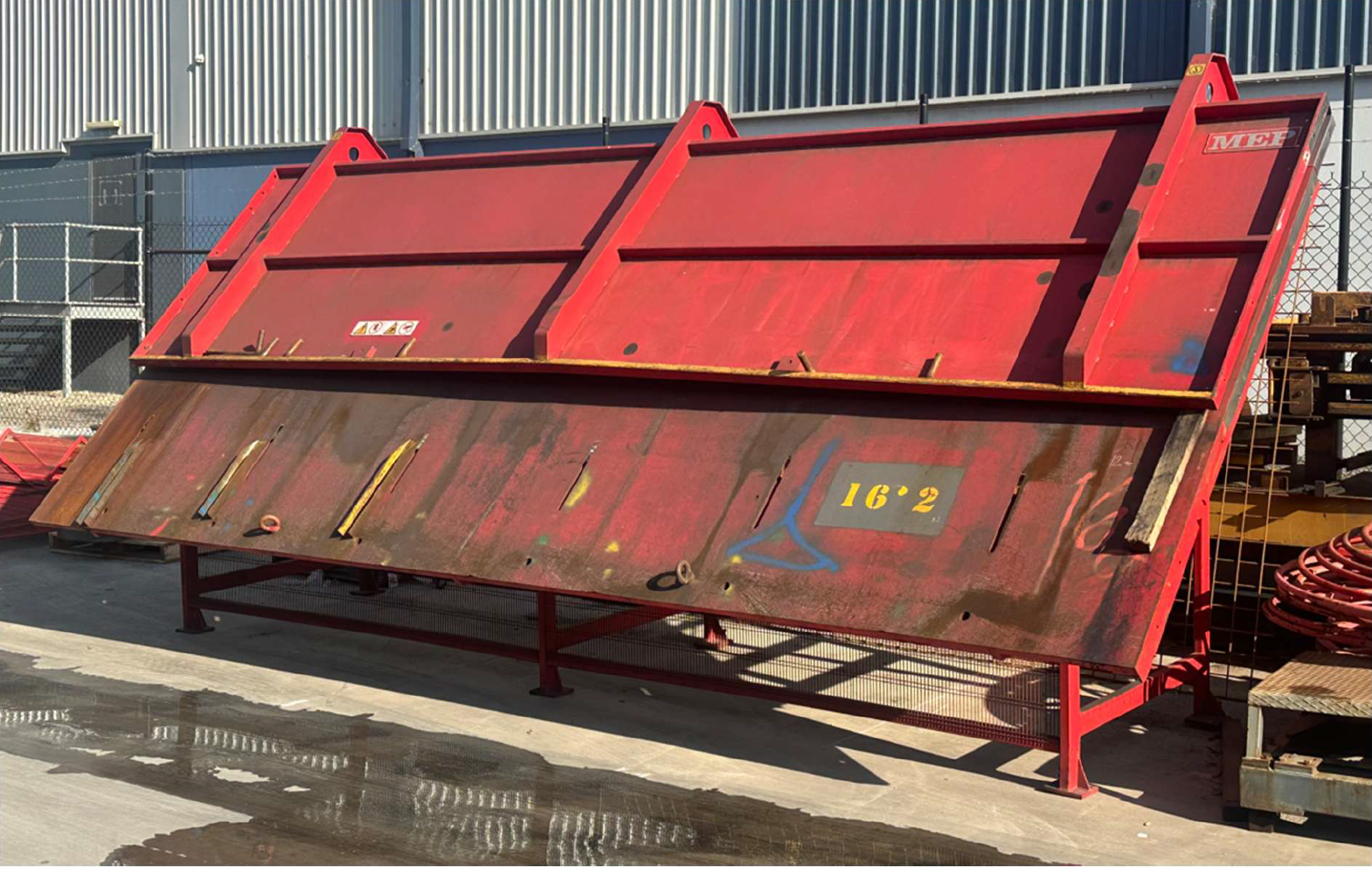

MEP Format 16 bench
Technical data:
Voltage supply 400 V - 50 Hz
Installed power 25 kW
Average absorbed power 17.3 kW
Hydraulic unit capacity 250 l
Infeed speed 0÷1,6 m/s
Bending speed 0÷1000 °/s
Shearing time 4/10 s
Centre forming tools diameter 24-32-40-48-70-80mm
Pay-off station max. capacity 3200 kg
Overall dimensions:
Machine 4800 x 2600 x 2250 mm
Control cabinet 650 x 550 x 1920 mm
LC pay-off station 2500 x 2203 x 3000 mm
Weight:
Machine 4380 kg
Control cabinet 110 kg
LC pay-off station 1194 kg
Production data:
Max. unit yield point 600 N/mm²
Max. tensile strength 700 N/mm²
Diameter range:
Single ribbed or plain Ø6÷16 mm
Double strand max. diameter Ø12 mm
Operation for shape:
Side lengths 1÷28
Bends 1÷27
Max. vertical side length 2000 mm
Min. first side length 30 mm
Min. last side length 20 mm
Max. angle in clockwise bend 180°
Max. angle in anticlockwise bend 180°
Tolerances:
Side lengths ±1 mm/m
Bends ±1°
Productivity:
Quantity of stirrup/hour (lengths developed 1100mm with 5 bends) 1400
Programme capacity:
Programmable memory codes No limits
Pre-programmed memory codes 69
